2014 AG95L DBS 12 01

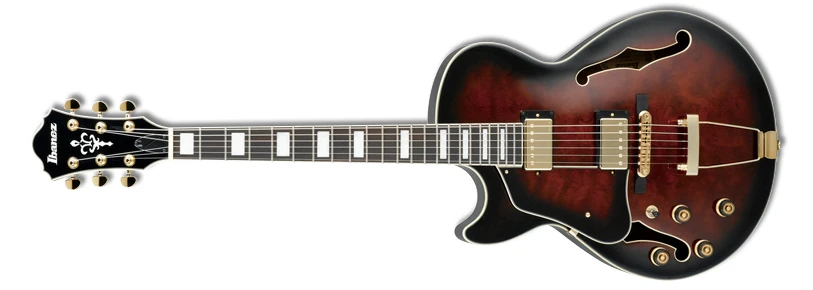

AG95L Dark Brown Sunburst Red copyright sprite

The AG95L is a left-handed Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in mid 2014. It was made in China.

The AG95L features a mid-sized, full-hollow body design with a laminated figured bubinga top with ƒ holes and cream multi-binding on figured bubinga back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, a matching figured bubinga pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AG95 is a right-handed version.

The AG95 was discontinued after 2017. It was replaced by the AG95QAL, which has a quilted ash body.

Specifications

Specifications for AG95L
Year(s) produced: 2014–2017
Sold in: USA
Made in: China
Finish(es): Dark Brown Sunburst (DBS)
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:

  Material: Figured bubinga (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Figured bubinga (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT06
Pickguard:
Figured bubinga on bakelite
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AG Expressionist
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
