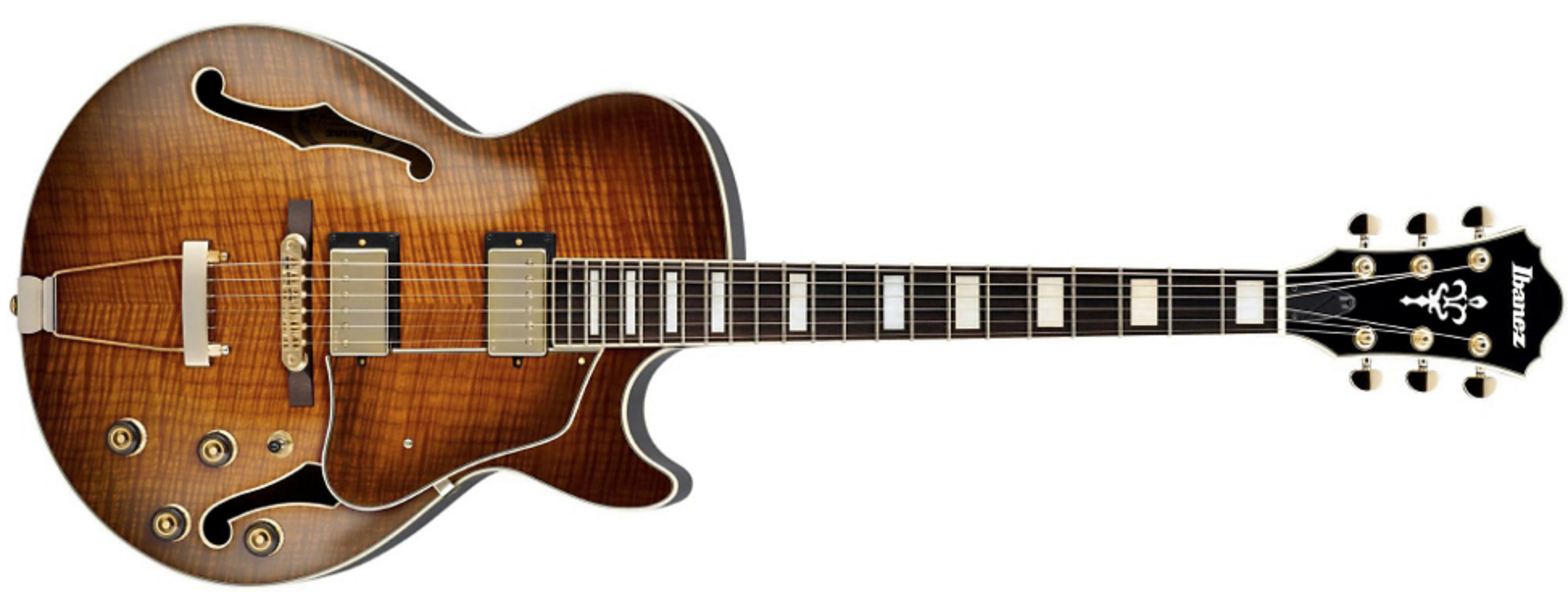

The AG95FM is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in 2014. It was a spot model which was made in China.

The AG95FM features a mid-sized, full-hollow body design with a laminated flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, a matching flamed maple pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AG95 and AG95QM are related models with, respectively, figured bubinga and quilted maple bodies.

The AG95FM was produced only in 2014.

Specifications

Specifications for AG95FM
Year(s) produced: 2014
Sold in: USA
Made in: China
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT06
Pickguard:
Flamed maple on bakelite
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AG Expressionist
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls 2V2T3.png
Control layout
