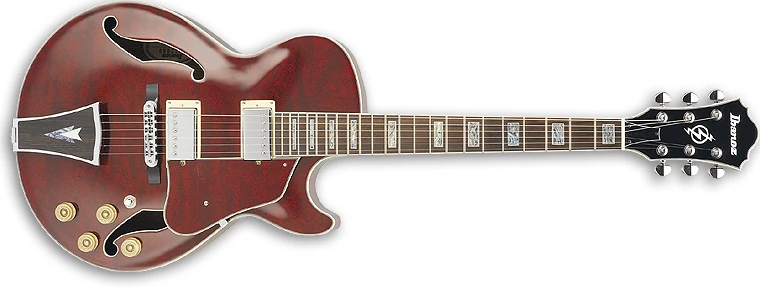

2006 AG86 TRD 12 01
AG86 Transparent Red Red copyright sprite

The AG86 is an Artcore Deluxe series hollow body electric guitar model introduced by Ibanez for 2006. It was made in China. It replaced the similar AG85.

The AG86 features a mid-sized, full-hollow body design with a laminated figured bubinga top with ƒ holes and cream multi-binding on figured bubinga back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a VT100DX wood-decorated tailpiece, ivory plastic nut and pickup rings, a matching figured bubinga pickguard, speed knobs, and Ibanez tuning machines.

The AG86N is a similar model with a spruce body. The AG75 is a related model with a maple body and one-piece neck.

This AG86 was discontinued after just one year in production. The AG95 is a similar model introduced the following year.

Specifications

Specifications for AG86
Year(s) produced: 2006
Made in: China
Finish(es): Transparent Red (TRD)
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:

  Material: Figured bubinga (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Figured bubinga (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT100DX wooden w/ chrome inlay
Pickguard:
Figured bubinga on bakelite
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
