For the earlier model with the same name, see AFS85T (2008).

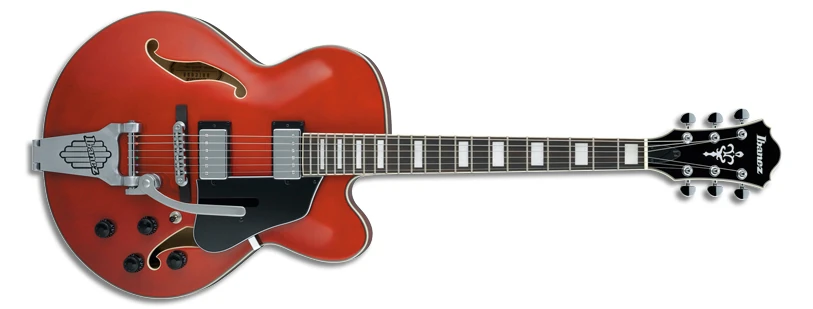

2015 AFS85T TRD 12 01
AFS85T Transparent Red Red copyright sprite

The AFS85T is a hollow body electric guitar model introduced by Ibanez for 2015. It was made in China as part of the Artcore Expressionist series.

The AFS85T features a thinner, full-hollow body design with a laminated maple top with ƒ holes and cream multi-binding on maple back and sides with a single rounded Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with chrome covers and individual volume and tone controls, an ART-2 Tune-o-matic roller style bridge on a wooden base with a vibrato tailpiece, a plastic nut, a black bakelite pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AF85 is a similar model with a flamed sycamore body and without the vibrato.

This AFS85T was produced only in 2015 and was offered only in Japan.

Specifications[]

Specifications for AFS85T (2015)
Model name: AFS85T (2015)
Year(s) offered: 2015
Sold in: Japan
Made in: China
Finish(es): Transparent Red (TRD)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
ART-2 roller on wooden base
Tailpiece:
VBF70 vibrato
Pickguard:
Black bakelite
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
Expressionist AF
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
String gauge (factory):
.010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
