2011 AFS80T ROM 12 01

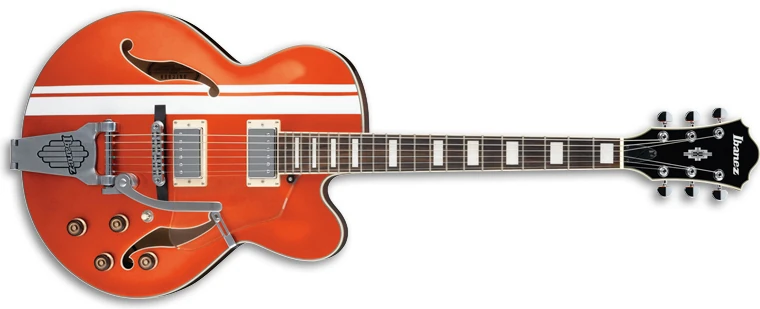

AFS80T Roadster Orange Metallic (more images) Red copyright sprite

The AFS80T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2011. It was produced in China.

The AFS80T features a full-hollow body design with an arched laminated maple top with ƒ holes, painted racing stripes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers, ivory pickup rings and individual volume and tone controls, a Tune-o-matic style roller bridge on a wooden base with a vibrato tailpiece, a plastic nut, a clear plastic pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AFS75T is a similar model with a 1-piece neck and no racing stripes.

The AFS80T was discontinued after 2012.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AFS80T
Year(s) offered: 2011–2012
Sold in: USA
Made in: China
Finish(es): Candy Apple (CA) / Roadster Green Metallic (RGM) / Roadster Orange Metallic (ROM) / Starlight Blue (SLB) 2012
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-2 roller on a wooden base (10.4mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
Clear plastic
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
AF Artcore
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

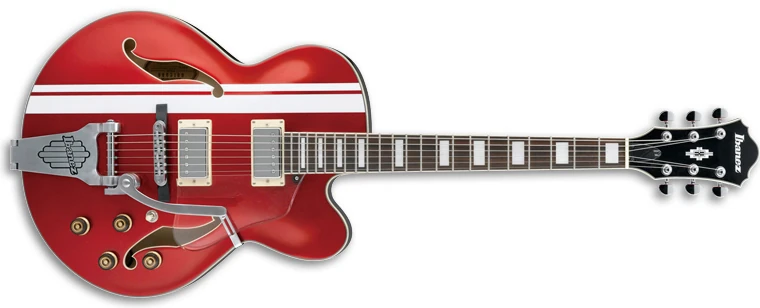

2012 AFS80T CA 12 01
Candy Apple
2011 AFS80T RGM 12 01
Roadster Green Metallic

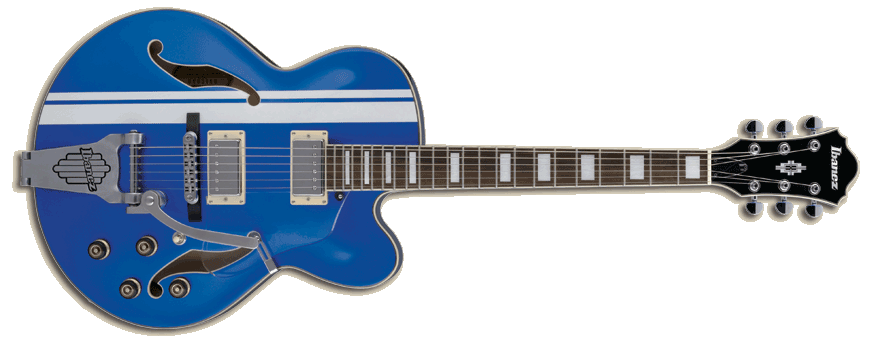

2012 AFS80T SLB 12 01
Starlight Blue
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
