For the more recent version with the same name, see AFS77T (2011).

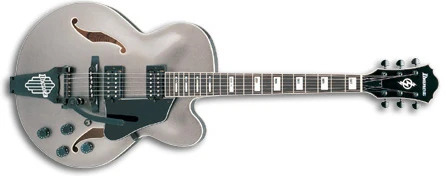

2005 AFS77T MG 12 01
AFS77T Metallic Green (more images) Red copyright sprite

The AFS77T is an Artcore series hollow body electric guitar model introduced by Ibanez in mid 2003. It was produced in China.

The AFS77T features a full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups without covers, individual volume and tone controls, a Tune-o-matic style roller bridge on a wooden base with a vibrato tailpiece, a plastic nut, a black pickguard and pickup rings, speed knobs, and Ibanez tuning machines.

The AFS78T is a very similar model with cosmo black hardware.

The AFS77T was discontinued after 2005.

Specifications[]

Related content: AF models | Artcore series | Models-icon
Specifications for AFS77T (2003–2005)
Year(s) offered: 2003–2005
Sold in: USA
Made in: China
Finish(es): Metallic Black (MBK) 2005 / Metallic Green (MG) / Ocean Blue (OBL) 2005
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝" (43mm at heel)
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-2 roller on a blackwood base (10.4mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
Black
Knob style:
Speed (black)
Hardware color:
Black
Neck
Neck type:
AF Artcore
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Special pearl and abalone block
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

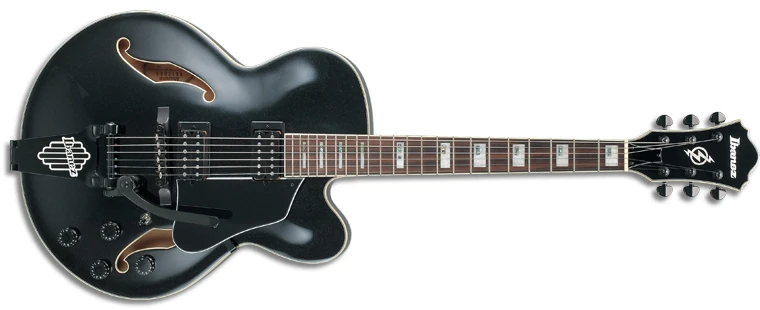

2005 AFS77T MBK 12 01
Metallic Black

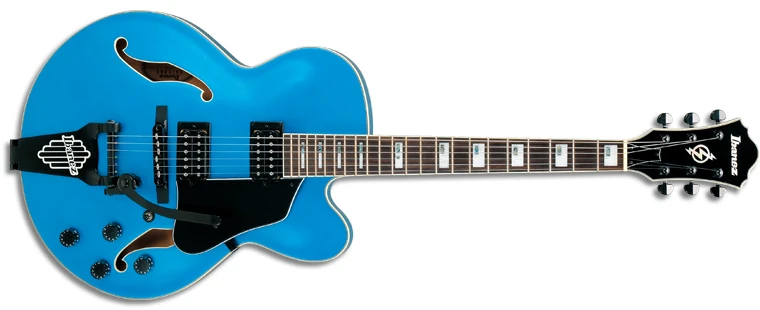

2005 AFS77T OBL 12 01
Ocean Blue
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
