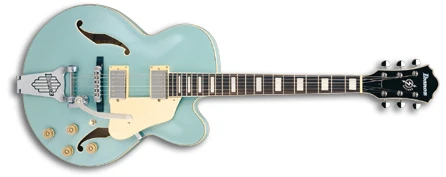

2003 AFS75TD PB 12 01
AFS75TD Pale Blue (more images) Red copyright sprite

The AFS75TD is an Artcore series hollow body electric guitar model introduced by Ibanez in mid 2003. It was produced in China.

The AFS75TD features a full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style roller bridge on a wooden base with a vibrato tailpiece, a plastic nut, an ivory pickguard and pickup rings, speed knobs, and Ibanez tuning machines.

For 2008 the inlays were changed from pearl block to a special abalone pattern.

The AFS75T is a nearly identical model with black pickup rings and pickguard.

The AFS75TD was discontinued after 2008.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AFS75TD
Year(s) offered: 2003–2008
Sold in: USA
Made in: China
Finish(es): Ocean Blue (OBL) 2006–2007 / Pale Blue (PB) 2003–2005 / Silver (SV) 2006–2008 / Turquoise (TQ) 2003–2005
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-2 roller on a blackwood base (10.4mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
3-ply black/white/black
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
AF Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
2003–2007: Pearl block
2008: Special abalone
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

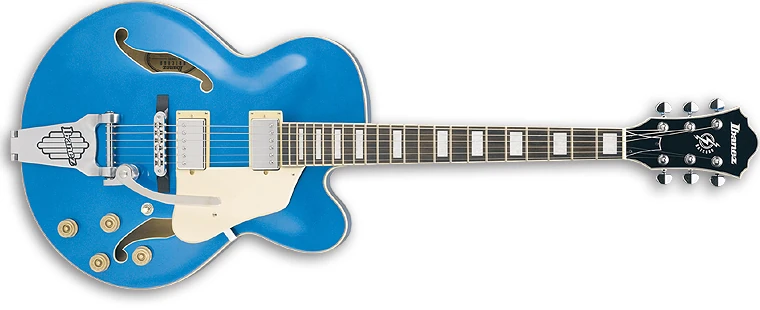

2006 AFS75TD OBL 12 01
Ocean Blue

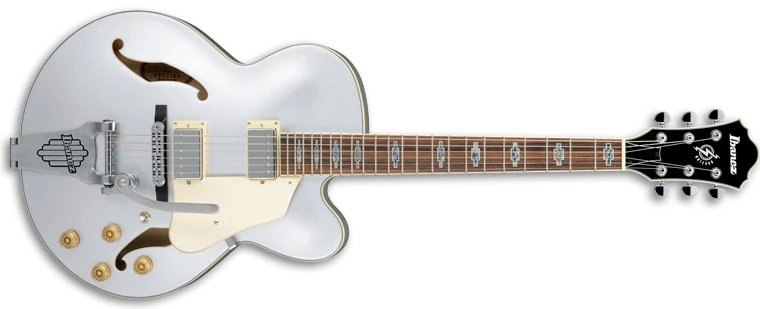

2008 AFS75TD SV 12 02
Silver

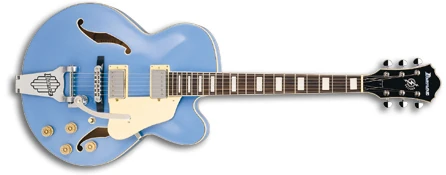

2003 AFS75TD TQ 12 01
Turquoise
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
