2006 AFS73T TRD

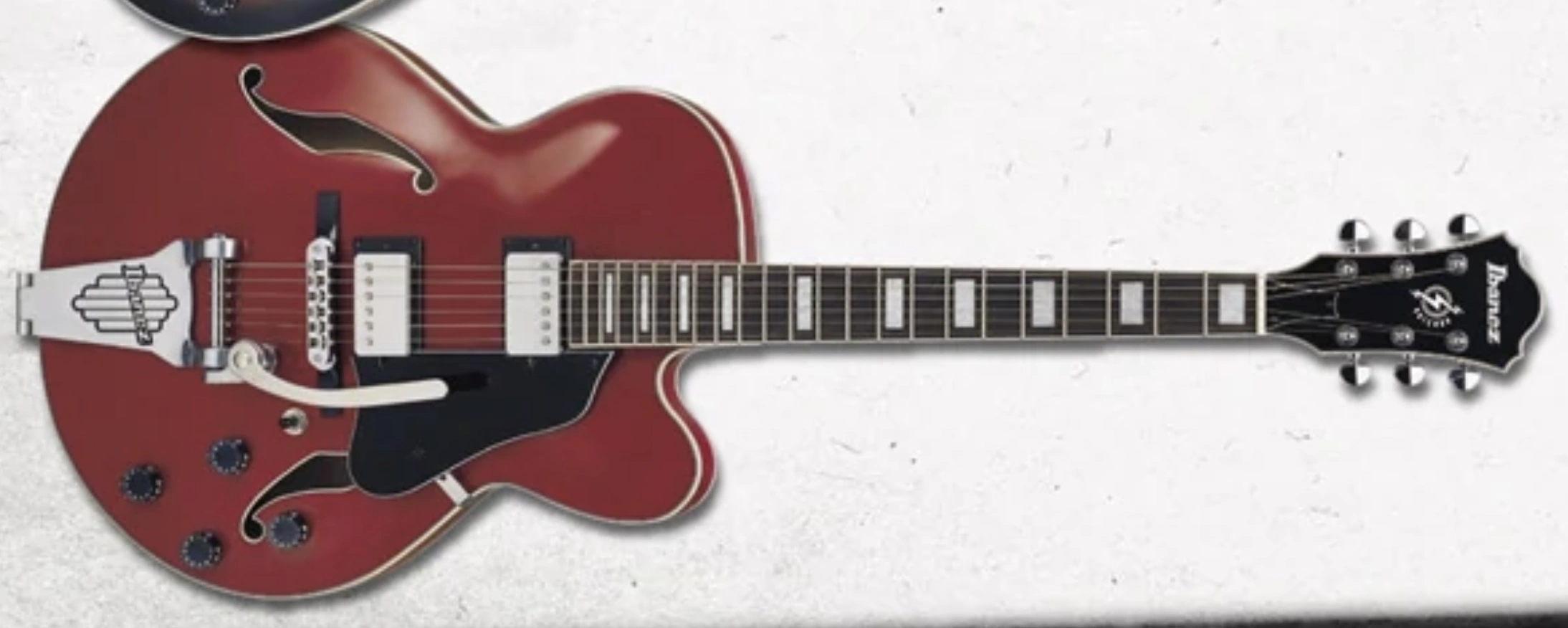

AFS73T Transparent Red (more images) Red copyright sprite

The AFS73T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2006. It was produced in China.

The AFS73T features a full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style roller bridge on a wooden base with a vibrato tailpiece, a plastic nut, a black pickguard and pickup rings, speed knobs, and Ibanez tuning machines.

The AFS75T is a nearly identical model which was sold in the US market.

The AFS73T was discontinued after 2006.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AFS73T
Year(s) offered: 2006
Sold in: Japan
Made in: China
Finish(es): Transparent Red (TRD)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-2 roller on a wooden base (10.4mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
3-ply black/white/black
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
AF Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl block
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
