2019 AFR5FMP NTF 1P 01

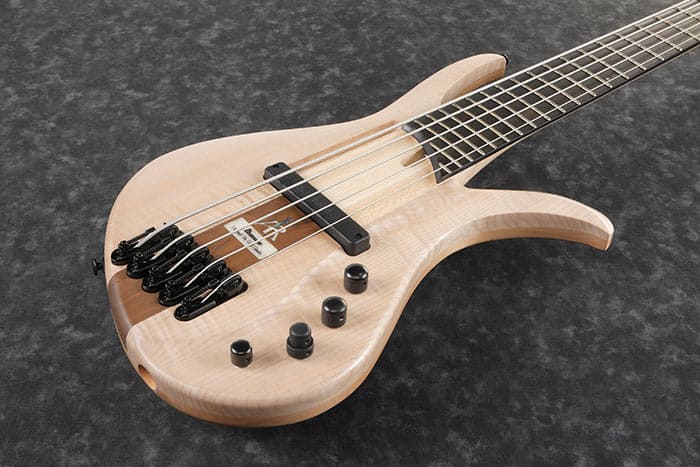

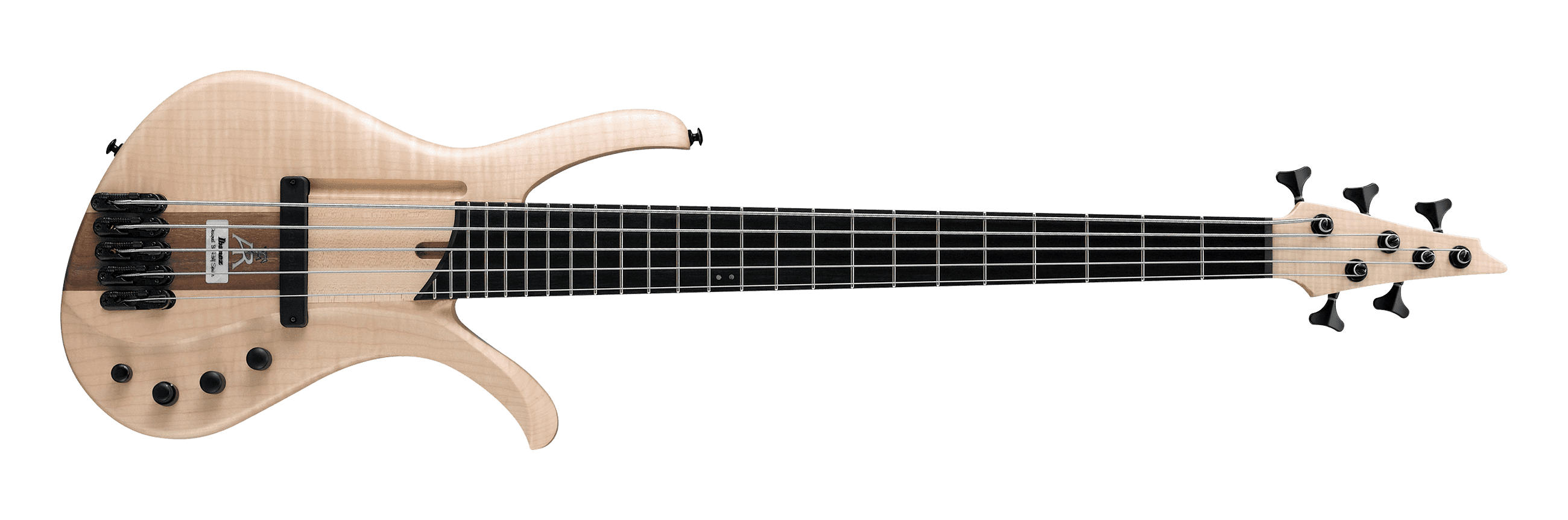

AFR5FMP Natural Flat (more images) Red copyright sprite

The AFR5FMP is a five string Affirma series solid body electric bass model introduced by Ibanez for 2019. It is a limited model made in Indonesia as part of the mid-tier Premium line. It heralds the return of the Affirma series which had a short run between 1992 and 1995.

The AFR5FMP features half through neck construction with a flamed maple and walnut top on a maple body attached to a graphite reinforced maple neck with a 24-fret ebony fingerboard with offset abalone dot position markers at the twelfth fret. The body has a sculpted, asymmetrical double cutaway design originated by Rolf Spuler with distinctive, narrow, curving horns; the AFR logo is inlaid into the guitar top between the pickup and bridge. Components include a single Bartolini X55JX split single-coil pickup mounted halfway between the bridge and neck, an Ibanez two-band EQ w/ piezo active tone control, stainless steel frets, a Mono-rail V bridge with integrated AeroSilk piezos and 19mm string spacing, a barrel-style stereo output jack, a plastic nut and Ibanez tuning machines.

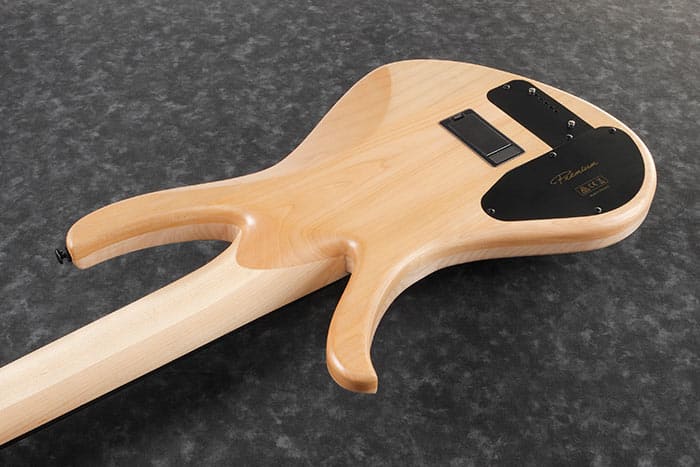

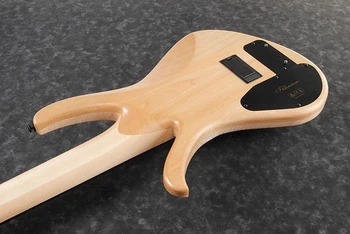

Controls consist of individual volumes for the magnetic and piezo pickups, a stacked 2-band EQ for the magnetic pick and an active tone control for the piezos. The gain of each individual piezo can be adjusted via trimpots accessible from the back of the instrument.

The AFR4FMP is a four string version. The AFR5WAP is a similar model with a walnut body.


Specifications for AFR5FMP
Year(s) produced: 2019–2020
Sold in: Asia & Africa 2019 / Europe 2019 / Japan / North & South America and Oceania 2019 / USA 2019
Made in: Indonesia
Finish(es): Natural Flat (NTF) / Transparent Gray Flat (TGF)
Body type:
Solid body
Body material:
Maple w/ flamed maple and walnut top
Neck joint:
MR5P Mono-rail V w/ AeroSilk piezos (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black matte
Neck type:
Neck material:
3-piece maple w/ graphite reinforcing rods
Scale length:
864mm / 34"
Fingerboard material:
Fingerboard inlays:
Offset balone dot at 12th fret
24 / medium (Premium edge treatment)
Plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Middle pickup:
Bartolini X55JX passive
Ibanez 2-band EQ / Piezo active tone
Magnetic volume and stacked 2-band EQ / Piezo volume and active tone / Individual piezo gain trimpots on rear
Output jack:
¼" stereo barrel
String gauge (factory):
Factory tuning:


Additional finishes/ details

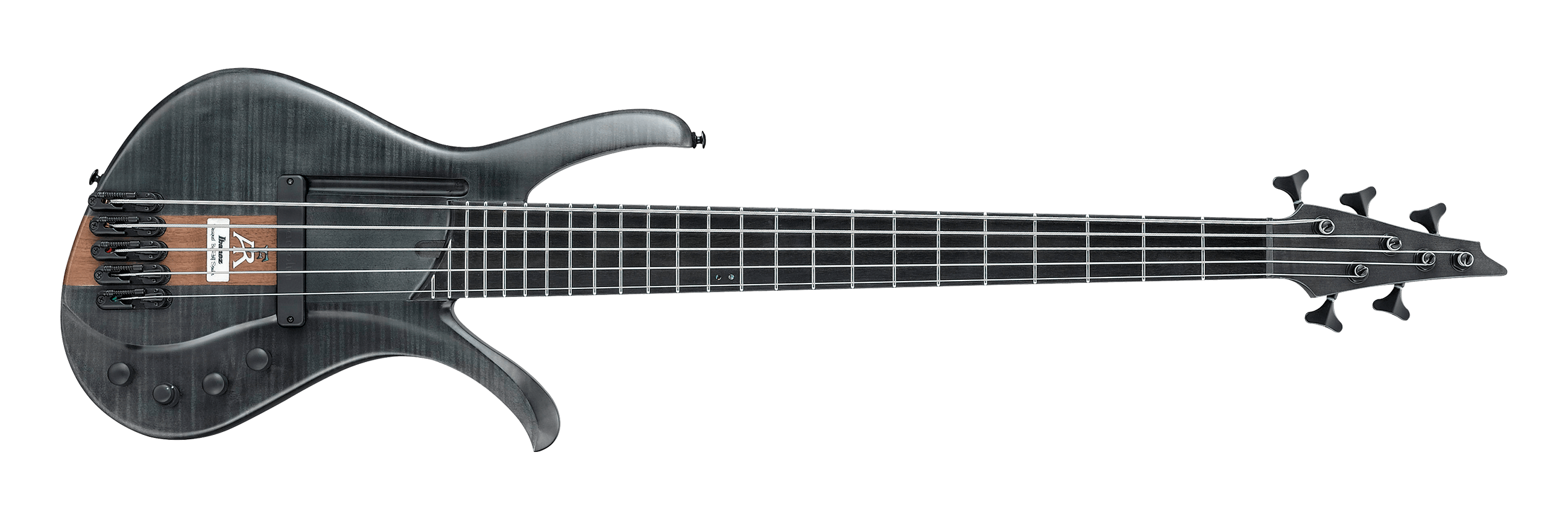

2019 AFR5FMP TGF 1P 01
Transparent Gray Flat

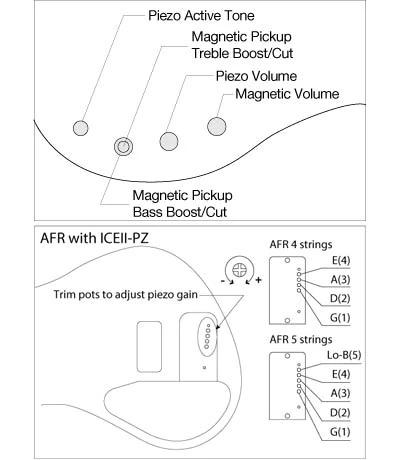

Controls AFR
Controls layout
