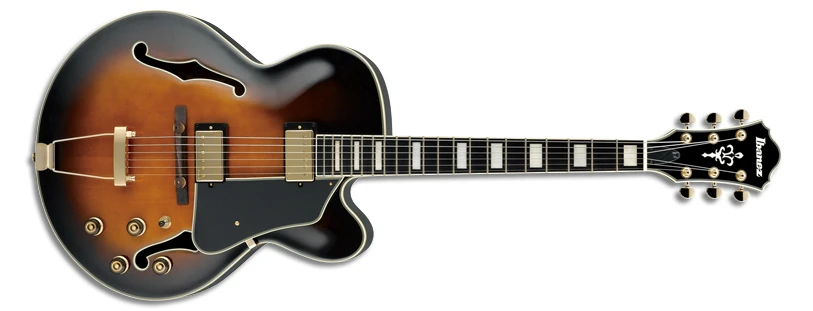

2013 AFJ95 VSB 12 01
AFJ95 Vintage Sunburst Red copyright sprite

The AFJ95 is a hollow body electric guitar model introduced by Ibanez for 2013. It was made in China as part of the Artcore Expressionist series. It replaced the similar AFJ85.

The AFJ95 features a thick, full-hollow body design with a laminated spruce top with ƒ holes and cream multi-binding on maple back and sides with a single rounded Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with cream binding and pearl block position markers. Components include dual Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, an ART-W bridge with wooden saddle and base, a trapeze tailpiece, a plastic nut, a black bakelite pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The pearl block inlays were changed to acrylic block in mid 2014.

The AFJ95B is a similar model with a black nut and different finish. The AFJ957 is a similar seven string model. The AFJ91 is a similar model without the bridge pickup. The AKJ95 is a similar model with a flamed maple top and pointed Florentine cutaway.

The AFJ95 was discontinued in 2018.

Specifications[]

Specifications for AFJ95
Year(s) offered: 2013–2018
Sold in: Asia & Africa / Europe / Japan / North & South America and Oceania
Made in: China
Finish(es): Antique Fade Flat (AFF) 2015–2016 / Vintage Sunburst (VSB)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:
  Material: Spruce (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Flamed maple
Neck joint:
Set-in
Bridge:
ART-W w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Black bakelite
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
AFJ
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
2013–2014: Pearl block
2014–2018: Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
