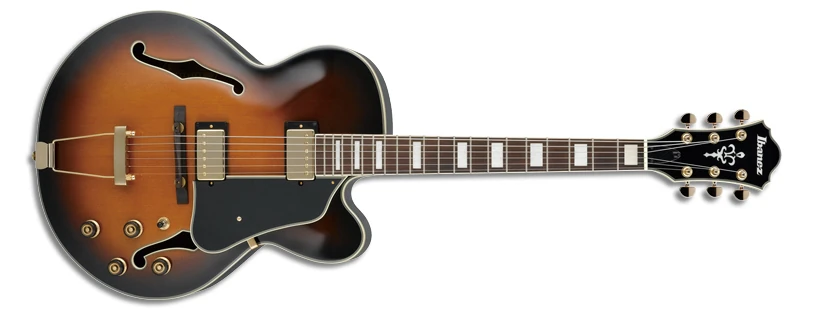

2012 AFJ85 VSB 12 01
AFJ85 Vintage Sunburst Red copyright sprite

The AFJ85 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2012. It was made in China.

The AFJ85 features a thick, full-hollow body design with a laminated spruce top with ƒ holes and cream multi-binding on flamed maple back and sides with a single rounded Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with cream binding and pearl block position markers. Components include dual Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, an ART-W bridge with rosewood saddle and base, a trapeze tailpiece, a plastic nut, a bakelite pickguard with spruce veneer, Sure Grip III knobs, and Ibanez tuning machines.

The AFJ81 is a similar model with a single pickup. The AKJ85 is a related model with a flamed maple top and a pointed Florentine cutaway.

The AFJ85 was discontinued after just a single year in production. It was replaced by the similar AFJ95.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AFJ85
Year(s) offered: 2012
Sold in: Worldwide
Made in: China
Finish(es): Vintage Sunburst (VSB)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:
  Material: Spruce (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Flamed maple
Neck joint:
Set-in
Bridge:
ART-W w/ rosewood saddle & base (10.4mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Spruce/ bakelite
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
AFJ Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/alnico
Neck pickup:
Ibanez ACH1 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
