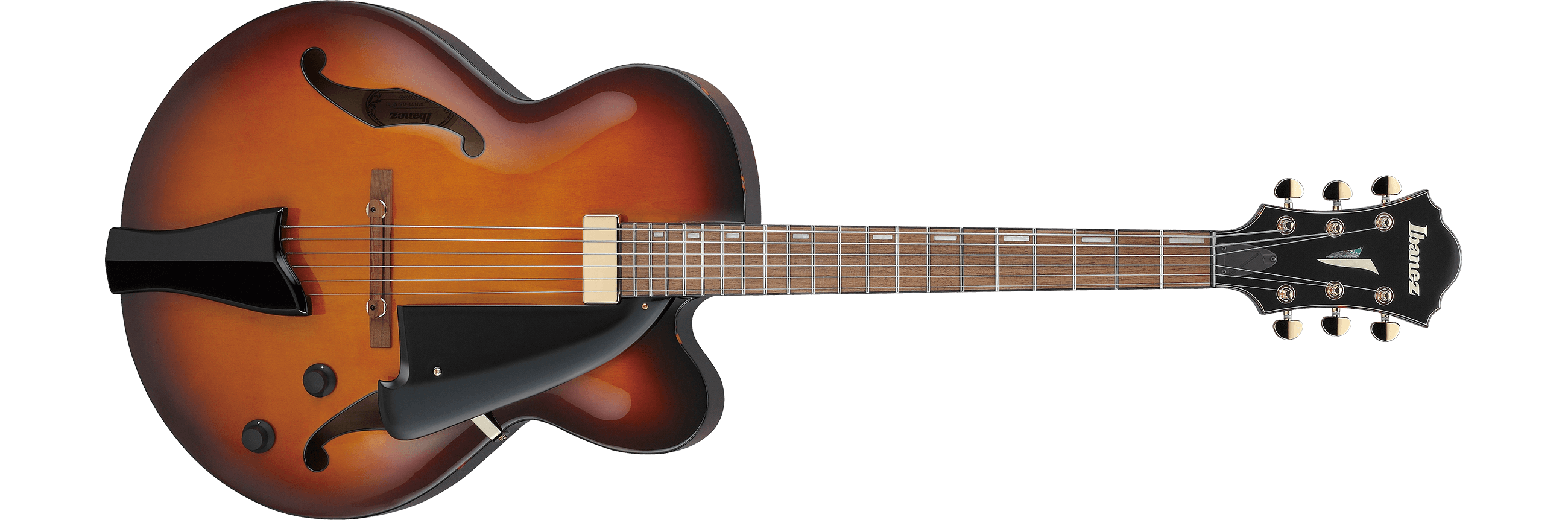

2024 AFC71 VLS 5B 01
AFC71 Violin Sunburst (more images) Red copyright sprite

The AFC71 is a hollow body electric guitar model introduced by Ibanez in late 2023. It is produced in Indonesia as part of the Artcore series and is offered exclusively in Japan.

The AFC71 features a thick, single cutaway, full-hollow body design constructed of a laminated linden top with ƒ holes and tortoiseshell binding on laminated linden sides and back. The nyatoh neck joins the body at the 14th fret and has a 20-fret walnut fingerboard with binding and acrylic offset block position markers. Components include a single floating Ibanez Magic Touch-Mini humbucking pickups with gold cover attached at the end of the fretboard, a floating walnut bridge with adjustable, compensated wooden saddle and a trapeze tailpiece with a wooden cover, a plastic nut, a sculpted black pickguard, sapele bell knobs, and Ibanez tuning machines with gold half moon buttons.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AFC71
Model name: AFC71
Year(s) offered: 2023–2024
Sold in: Japan
Made in: Indonesia
Price: MSRP: JP¥ 90,000 [1]
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:
  Material: Linden (laminated)
  Binding: Tortoiseshell
Back/sides:
  Material: Linden (laminated)
Neck joint:
Set-in; 14th fret
Bridge:
Walnut (compensated wooden saddle)
Tailpiece:
VT14 w/ wood cover
Pickguard:
Gloss black
Knob style:
Sapele (wood) bell
Hardware color:
Gold
Neck
Neck type:
AFC
Neck material:
1-piece nyatoh
Scale length:
628mm/ 24¾"
Fingerboard material:
Walnut w/ binding
Fingerboard inlays:
Acrylic offset block
Frets:
20 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
H
Neck pickup:
Ibanez Magic Touch-Mini (H) passive/alnico
Controls:
Master volume / master tone
Output jack:
Side mounted
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
2024 AFC71 VLS 5B 01 back
Back
2024 AFC71 VLS 5B 01 front3q
Front ¾ view

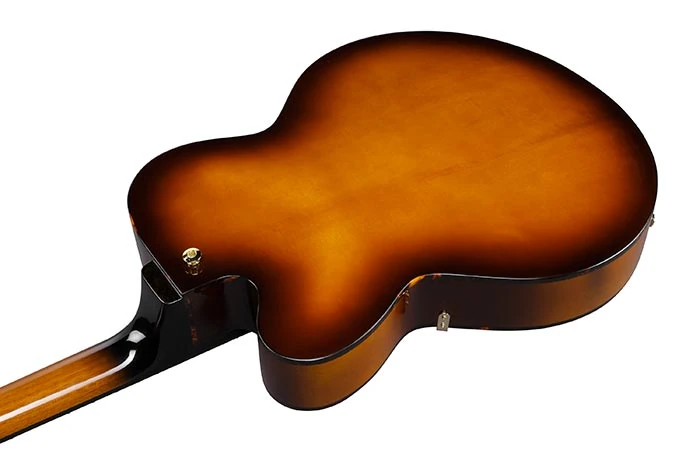

2024 AFC71 VLS 5B 01 body-back
Body back

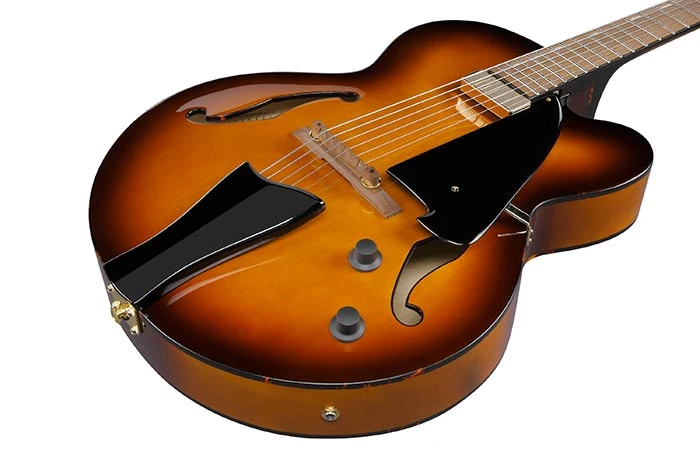

2024 AFC71 VLS 5B 01 body-front
Body front

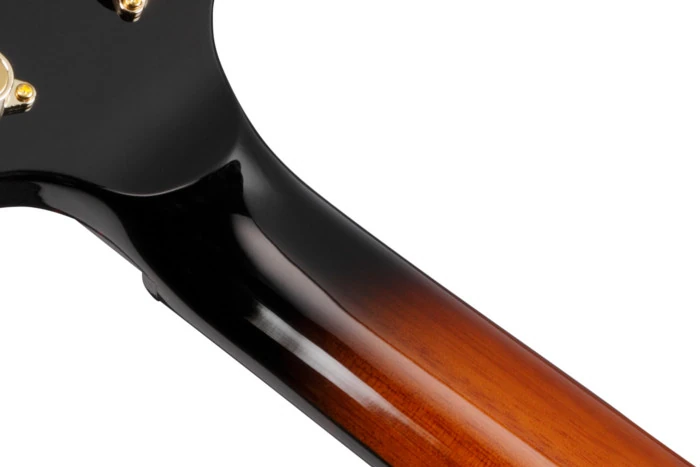

2024 AFC71-VLS nyatoh-neck
Nyatoh neck with volute

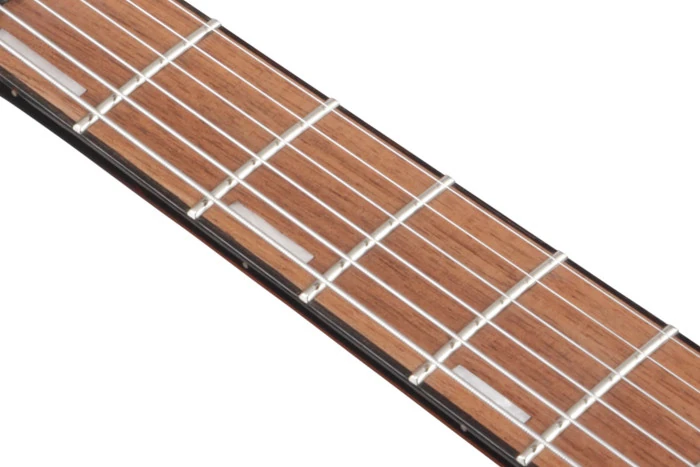

2024 AFC71-VLS walnut-fretboard
Bound walnut fretboard w/ offset block inlays
2024 AFC71-VLS Magic Touch-Mini pickup
Magic Touch Mini humbucker
Controls VT
Controls layout

Sources[]

  1. AFC71 product page, Ibanez Japan, archived January 2024
