For the more recent model with the same name, see AFB200.

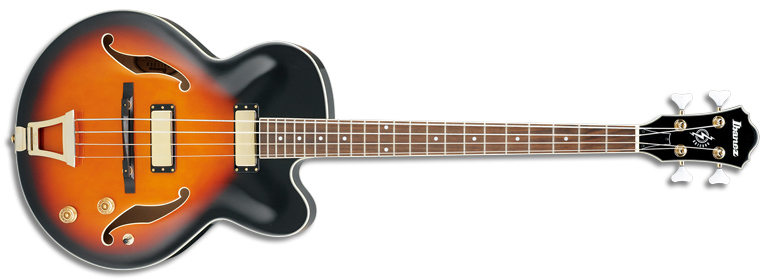

2007 AFB200 BS 12 01
AFB200 Brown Sunburst Red copyright sprite

The AFB200 is an Artcore Bass series hollow body electric bass model introduced by Ibanez for 2007. It was made in China as part of the Standard range.

The AFB200 features a hollow, single-cutaway design with a maple top with ivory binding on maple back and sides mated to a set-in mahogany and maple neck with a 22 fret laurel fingerboard with ivory binding and white dot position markers. Components include a pair of Classic Elite Bass passive pickups, a wooden ART-1 bridge and chrome tailpiece, Sure Grip III knobs, a plastic nut and Ibanez tuners.

For 2013 a black pickguard was added and the knobs were changed to Sure Grip IIIs.

The AFB200F is a fretless version. The AGB200 is a related model with a slightly smaller, thinner semi-hollow body and a Tune-o-matic style bridge and tailpiece.

The AFB200 was discontinued after 2016, but a new version was introduced in mid 2018.

Specifications[]

Related content: Artcore Bass series | Models-icon
Specifications for AFB200 (2007–2016)
Model name: AFB200 (2007–2016)
Year(s) offered: 2007–2016
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: China
Price: MSRP: ¥75,000 (2013)[1] • SMAP: €559 (2015)[2]
Finish(es): Black (BK) 2013 / Brown Sunburst 2007–2012 / Ivory (IV) 2013 / Sunset Red (SRD) 2013–2016
Body
Body type:
Hollow body
Dimensions:
  Width: 15¾"/ 400mm (at lower bout)
  Depth: 3⅝"/ 92mm (max.) - 70mm at tail
Top:
  Material: Maple
  Binding: Ivory
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
ART-1 wooden (19mm string spacing)
Tailpiece:
FBT40
Pickguard:
2007–2012: None
2013–2016: 3-ply black/ white/ black
Knob style:
2007–2012: Plastic speed
2013–2016: Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
Artcore Bass
Neck material:
3-piece mahogany/ maple
Scale length:
770mm / 30.3"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl dot
Frets:
22 / large (nickel silver edge treatment)
Nut:
Ivory plastic (42mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.050/.070/.085/.105 (D'Addario EXL160M)
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Bridge pickup:
Ibanez ACHB-B2 w/ gold cover passive
Neck pickup:
Ibanez ACHB-N2 w/ gold cover passive
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)

Images[]

Additional finishes & details

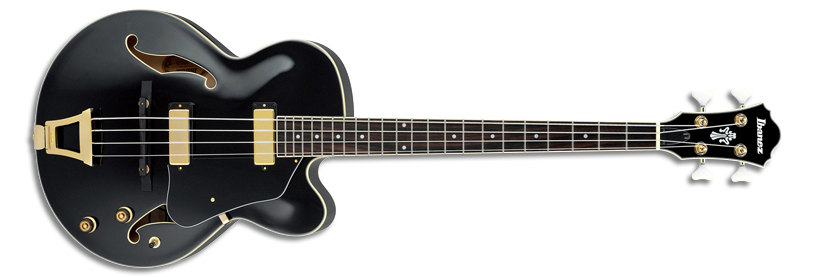

2013 AFB200 BK 12 04
Black

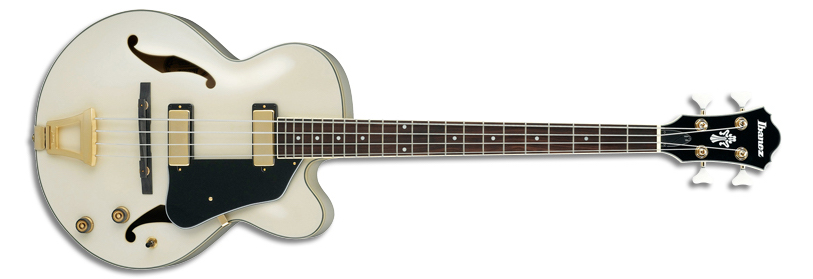

2013 AFB200 IV 12 04
Ivory

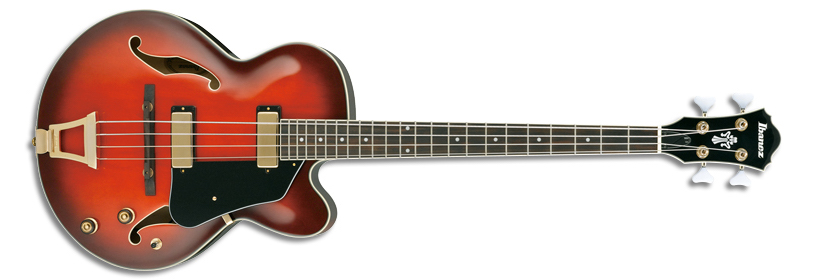

2013 AFB200 SRD 12 04
Sunset Red
HH 3-way toggle
Pickup switching
Controls ArtcoreBass
Controls layout
