For the earlier model with the same name, see AFB200 (2007–2016).
2019 AFB200 TKS 5B 01
AFB200 Transparent Black Sunburst Red copyright sprite

The AFB200 is an Artcore Bass series hollow body electric bass model re-introduced by Ibanez in mid 2018. It is made in China as part of the standard line.

The AFB200 features a hollow, single-cutaway design with a maple top with ivory binding on maple back and sides mated to a set-in mahogany and maple neck with a 22 fret laurel fingerboard with ivory binding and white dot position markers. Components include a pair of Classic Elite Bass passive pickups, a wooden ART-1 bridge and chrome tailpiece, Sure Grip III knobs, a plastic nut and Ibanez tuners.

For 2019 the mahogany and maple neck was changed to nyatoh and maple. For 2020 the body material was changed to linden and the fretboard was changed to walnut.

The AGB200 is a related model with a slightly smaller, thinner semi-hollow body and a Tune-o-matic style bridge and tailpiece.

Specifications

Specifications for AFB200
Year(s) produced: 2018–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Transparent Black Sunburst (TKS)
Body
Body type:
Hollow body
Dimensions:
  Width: 15¾"/ 400mm
  Depth: 3⅝"/ 92mm
Top:

  Material: 2018–2019: Maple
                2020: Linden
  Binding: Ivory

Back/sides:

  Material: 2018–2019: Maple
                2020: Linden

Neck joint:
Set-in
Bridge:
ART-1 wooden (19mm string spacing)
Tailpiece:
FBT40
Pickguard:
3-ply: Black/ white/ black
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
AFB Artcore
Neck material:
2018: 3-piece mahogany/ maple
2019: 3-piece nyatoh/ maple
Scale length:
770mm / 30.3"
Fingerboard material:
2018–2019: Laurel w/ ivory binding
2020: Walnut w/ ivory binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Ivory plastic (42m)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Classic Elite Bass passive
Neck pickup:
Classic Elite Bass passive
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.050/.070/.085/.105
Factory tuning:
1G,2D,3A,4E

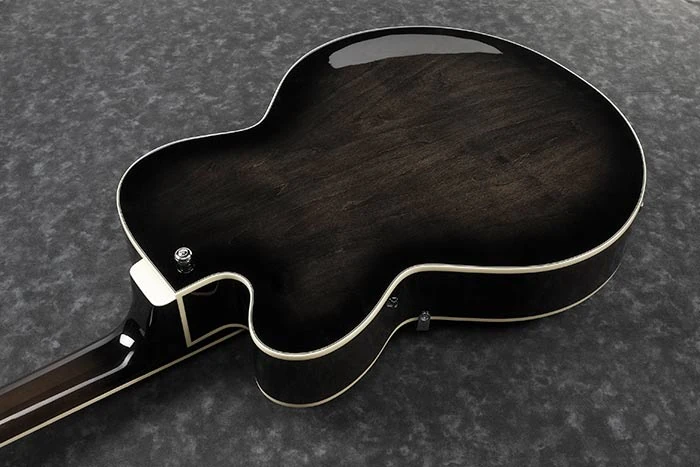

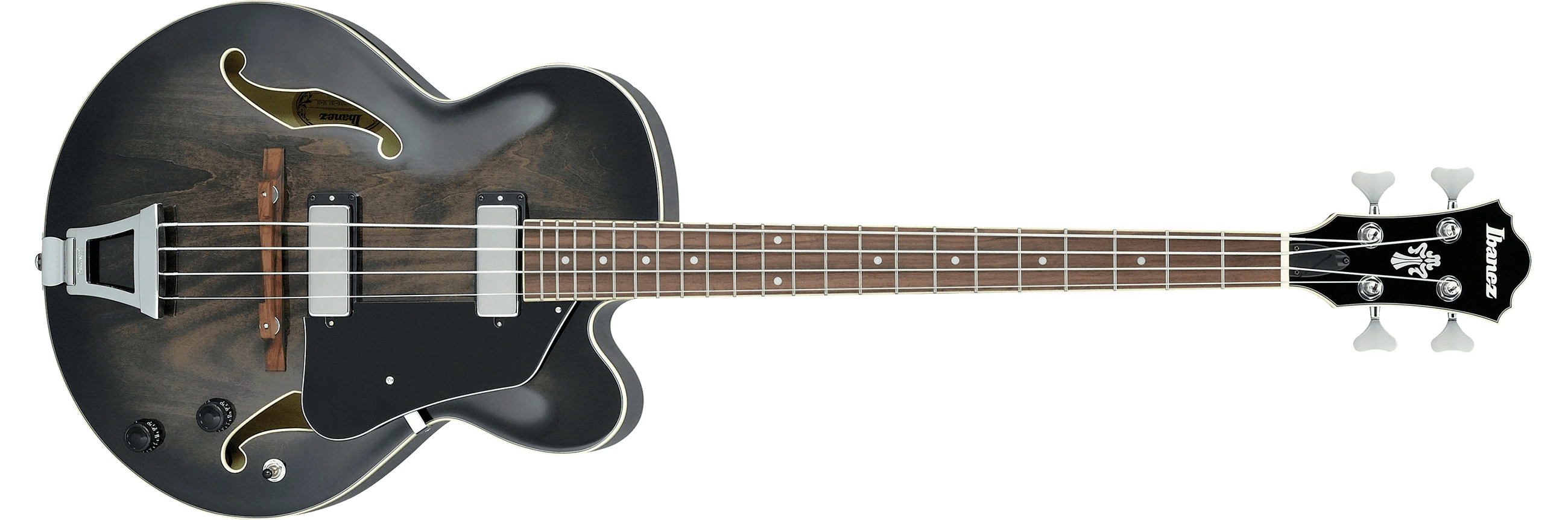

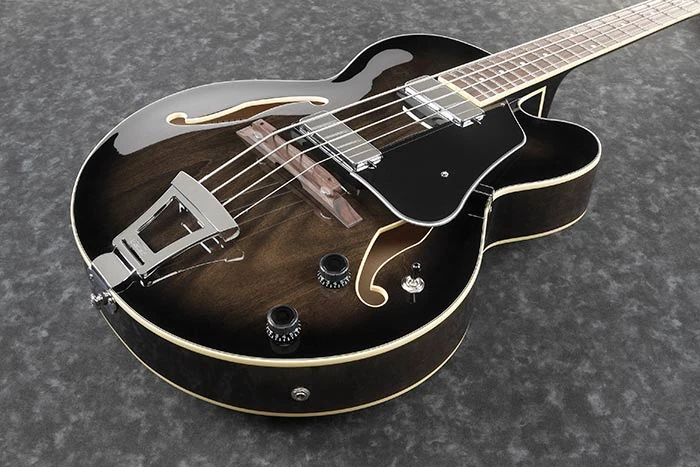

Images

Additional details
HH 3-way toggle
Pickup switching diagram
Controls ArtcoreBass
Controls layout
