2013 AF95TDG VLS 12 01

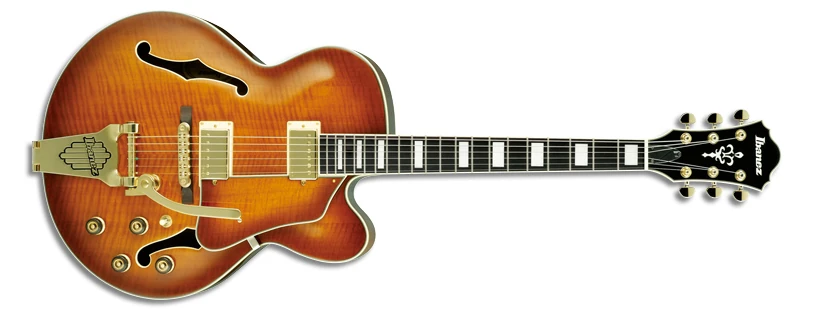

AF95TDG Violin Sunburst Red copyright sprite

The AF95TDG is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2013. It was produced in China and replaced the AF85TDG.

The AF95TDG features a full-hollow body design with a laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, a roller bridge on a wooden base, a vibrato tailpiece, a plastic nut, a flamed maple pickguard, Sure Grip knobs, and Ibanez tuning machines.

The AF95 is a similar model without the vibrato tailpiece.

The AF95TDG was discontinued after 2013.

Specifications

Specifications for AF95TDG
Year(s) produced: 2013
Sold in: USA
Made in: China
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
ART-2 roller on a wooden base (10.5mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
Flamed maple
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AF Expressionist
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
