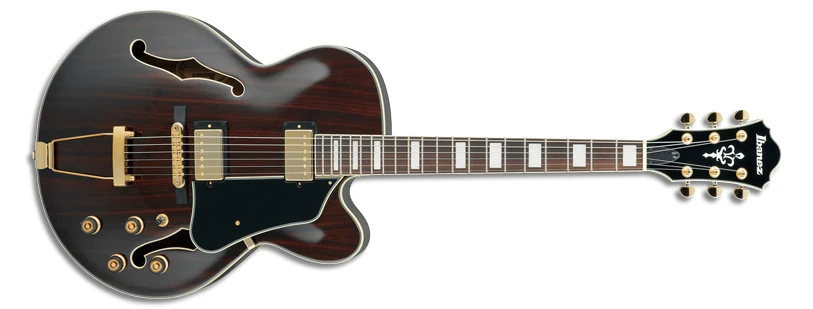

The AF95RW is a hollow body electric guitar model introduced by Ibanez for 2015. It was made in China as part of the Artcore Expressionist series.

The AF95RW features a thick, full-hollow body design with a laminated rosewood top with ƒ holes and cream multi-binding on rosewood back and sides with a single rounded Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, an ART-1 Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, a black bakelite pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AF95 and AF95FB are similar earlier models with, respectively, flamed maple and figured bubinga bodies. The AF95FM is a similar more recent model with a flamed maple body.

The AF95RW was discontinued in 2018.

Specifications

Specifications for AF95RW
Year(s) produced: 2015–2018
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:

  Material: Rosewood (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Rosewood

Neck joint:
Set-in
Bridge:
ART-1 Tune-o-matic on wooden base (10.4mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Black bakelite
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
Expressionist AF
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052 roundwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
