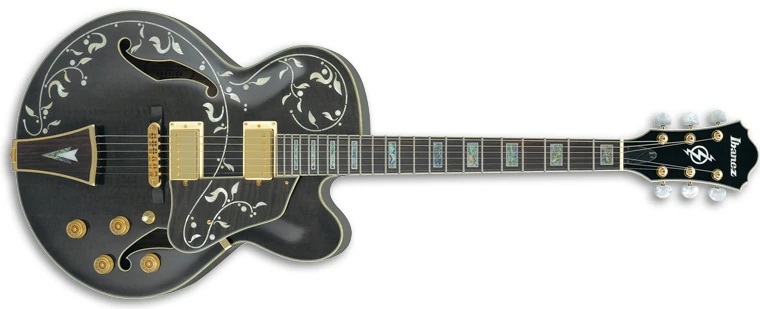

The AF95PV is an Artcore series hollow body electric guitar model introduced by Ibanez for 2010. It was produced in China.

The AF95PV features an inlaid pearl vine design across the top which continues only the pickguard. It has a full-hollow body design with a laminated flamed sycamore top with ƒ holes, ivory multi-binding on flamed sycamore back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with ivory binding and abalone block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a decorative tailpiece, a plastic nut, a flamed sycamore pickguard, speed knobs, and Ibanez tuning machines.

For 2010 the flamed sycamore body and pickguard were replaced with flamed maple. For 2011 Sure Grip III knobs replaced the speed knobs. For 2013 Super 58 pickups replaced the Artcore humbuckers, the tailpiece was changed and the pearloid tuner buttons were replaced with gold.

The AF95 is a similar model without the decorative inlaid top. The AS93PV is a semi-hollow model with a similar aesthetic.

The AF95PV was offered only in 2010.

Specifications

Specifications for AF95PV
Year(s) produced: 2010
Sold in: Europe / North America / USA
Made in: China
Finish(es): Transparent Black (TK)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15⅝"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed sycamore (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed sycamore

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT100DX
Pickguard:
Flamed sycamore w/ white pearloid vine
Knob style:
Speed
Hardware color:
Gold
Neck
Neck type:
AF Artcore
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Artcore DX abalone block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ pearloid half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details

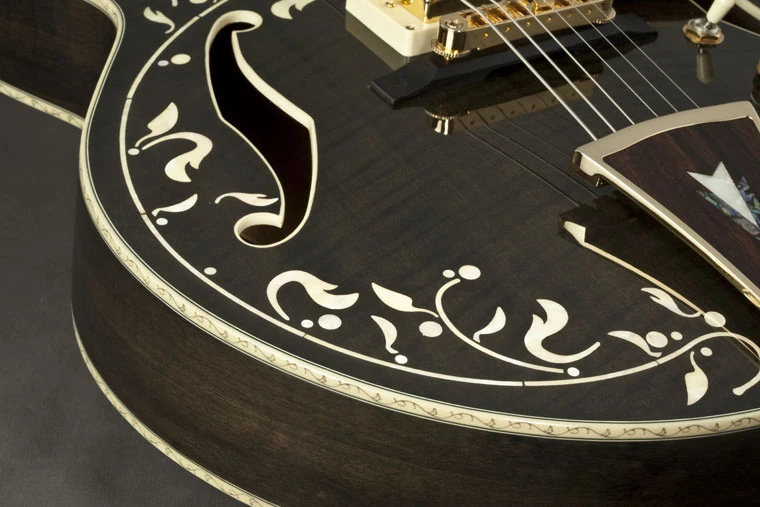

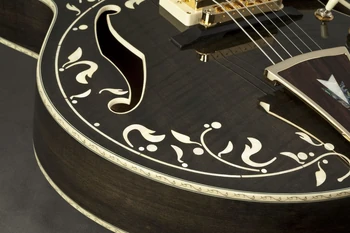

AF95PVTK body inlay.jpg
Closeup of inlay detail
HH 3-way toggle.png
Pickup switching
Controls 2V2T3 hollow.png
Control layout
