2019 AF95FM AYS 5B 02
AF95FM Antique Yellow Sunburst Red copyright sprite

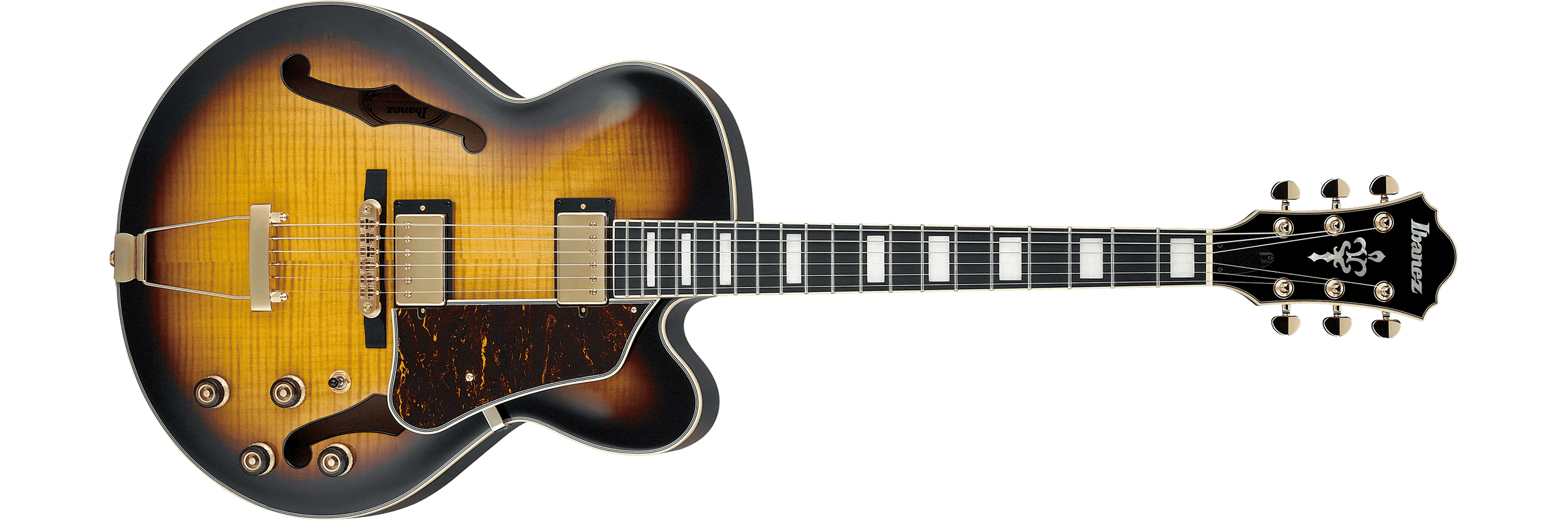

The AF95FM is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in 2018. It was initially produced in China, but production very soon began also in Indonesia and Chinese production was shut down after just a few months.

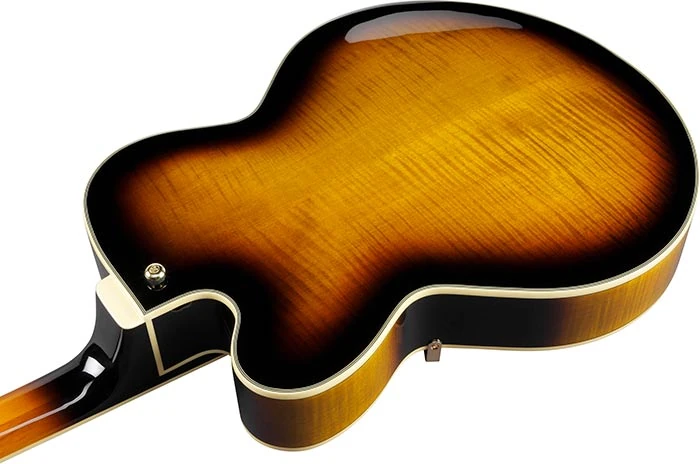

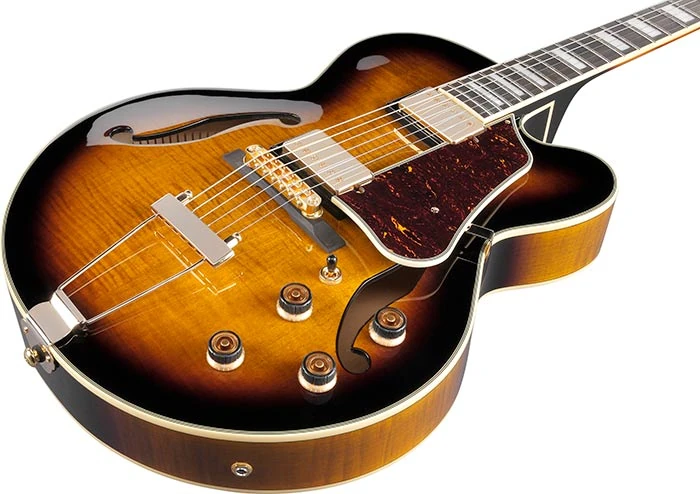

The AF95FM features a full-hollow body design with a laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret ebony fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a laurel base, a trapeze tailpiece, a plastic nut, a tortoise pickguard, Sure Grip III knobs, and Ibanez tuning machines.

For 2019 the mahogany and maple neck was replaced with nyatoh and maple. For 2020 the bridge was replaced with the new Gibraltar Performer.

The AG95QA is a related model with a slightly smaller body constructed of quilted ash.

Specifications

Specifications for AF95FM
Year(s) produced: 2018–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China (2018) / Indonesia (2018–2020)
Finish(es): Antique Yellow Sunburst (AYS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15⅝"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
2018–2019: ART-1 on a laurel base
2020: Gibraltar Performer (10.5mm string spacing)
Tailpiece:
VT06
Pickguard:
Tortoise w/ ivory binding
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AF Expressionist
Neck material:
2018: 3-piece mahogany/ maple
2019: 3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
