2014 AF95FB DBS 12 01

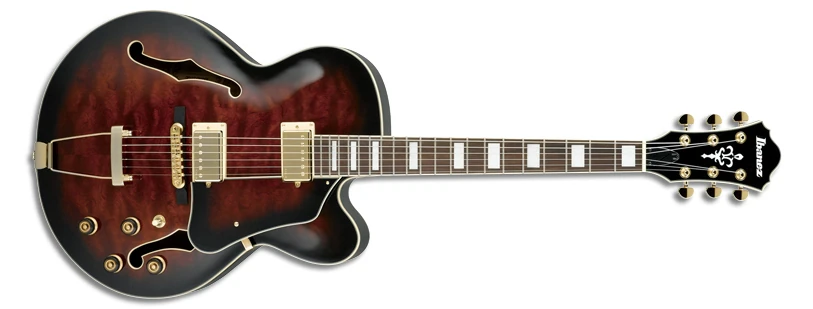

AF95FB Dark Brown Sunburst Red copyright sprite

The AF95FB is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in mid-2014. It was produced in China.

The AF95FB features a full-hollow body design with a laminated figured bubinga top with ƒ holes and ivory multi-binding on figured bubinga back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, a figured bubinga pickguard, Sure Grip knobs, and Ibanez tuning machines.

The AF95 is a similar model with a flamed maple body. The AF95RW is a similar model with a rosewood body.

The AF95FB was discontinued after 2014.

Specifications[]

Related content: Artcore Expressionist series | Models-icon
Specifications for AF95FB
Year(s) offered: 2014
Sold in: USA
Made in: China
Finish(es): Dark Brown Sunburst (DBS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:
  Material: Figured bubinga (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Figured bubinga
Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Figured bubinga
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AF Expressionist
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
