2012 AF85TDG VLS 12 01

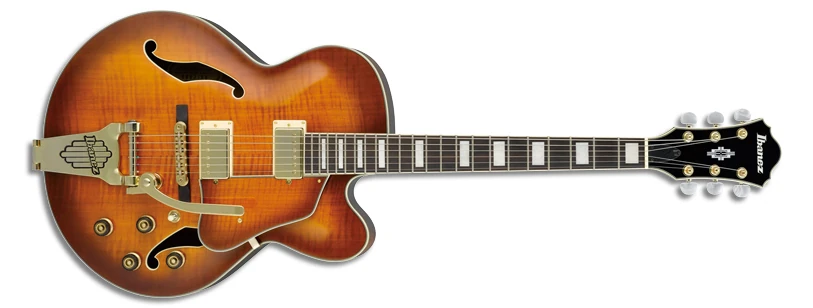

AF85TDG Violin Sunburst (more images) Red copyright sprite

The AF85TDG is an Artcore series hollow body electric guitar model introduced by Ibanez for 2012. It was made in China.

The AF85TDG features a full-hollow body design with a laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, an ART-2 roller bridge on a wooden base, a vintage-style vibrato tailpiece, a plastic nut, a flamed maple pickguard, Sure Grip III knobs, and Ibanez diecast tuning machines with white half moon buttons.

The AF95 is a similar model without the vibrato bridge. The AF75TDG is a related model with a maple body and 1-piece neck.

The AF85TDG was discontinued after 2012. The similar AF95TDG was introduced for 2013.

Specifications

Specifications for AF85TDG
Year(s) produced: 2012
Sold in: USA
Made in: China
Finish(es): Violin Sunburst
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝" (70mm/ 2¾" at tail)
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
ART-2 roller on a wooden base
Tailpiece:
VBF70 vintage vibrato
Pickguard:
Flamed maple
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AF Artcore
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white acrylic half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 bridge (H)
Neck pickup:
Ibanez Artcore Humbucker 1 neck (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
