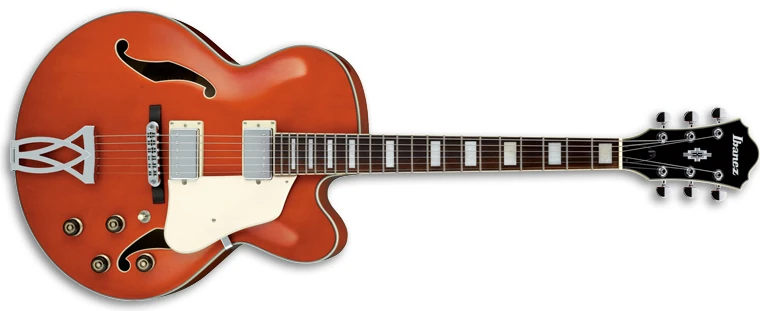

2011 AF75D TOR 12 04.jpg
AF75D Transparent Orange (more images) Red copyright sprite.png

The AF75D is an Artcore series hollow body electric guitar model introduced by Ibanez in mid 2003. It was produced in China.

The AF75D features a full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 20-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, an ivory pickguard and pickup rings, speed knobs, and Ibanez tuning machines.

For 2005 the frets were changed from small to large, although they're also listed as medium in some catalogs. For 2008 the VT50 tailpiece was replaced with the VT60. For 2011 the speed knobs were replaced with Sure Grip III knobs.

The AF75 is a similar model with black pickguard and pickup rings.

The AF75D was discontinued after 2013.

Specifications

Specifications for AF75D
Year(s) produced: 2003–2011, 2013
Sold in: Europe / North America / USA
Made in: China
Finish(es): Antique Amber (AA) 2013 / Pale Blue (PB) 2003–2005 / Sunset Red (SRD) 2013 / Transparent Green (TGR) 2007–2008 / Transparent Orange (TOR) 2003–2011 / Turquoise (TQ) 2003–2005
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
2003–2007: VT50
2008–2011, 2013: VT60
Pickguard:
Ivory
Knob style:
2003–2010: Speed (black)
2011, 2013: Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
AF Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl block
Frets:
2003–2004: 20 / small
2005–2011, 2013: 20 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

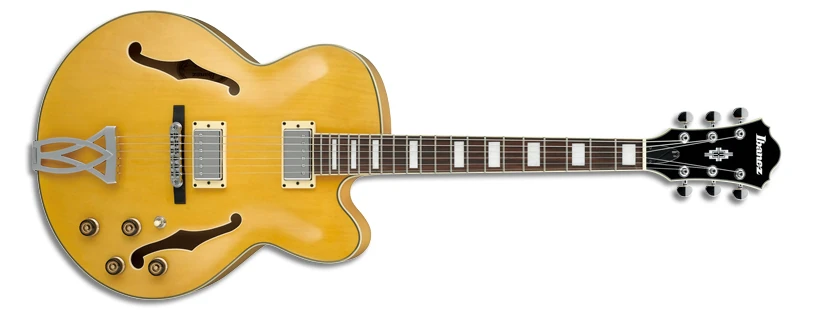

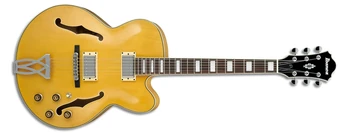

2013 AF75D AA 12 01.jpg
Antique Amber

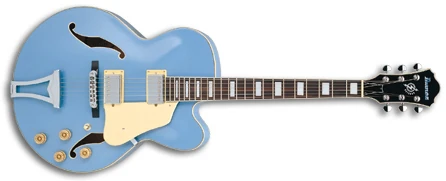

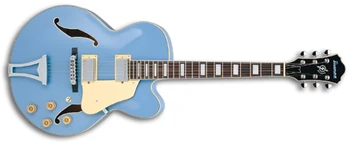

2004 AF75D PB 12 01.jpg
Pale Blue
2013 AF75D SRD 12 01.jpg
Sunset Red

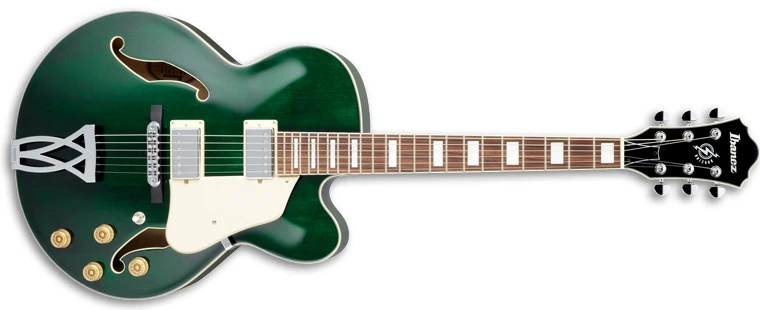

2008 AF75D TGR 12 02.jpg
Transparent Green

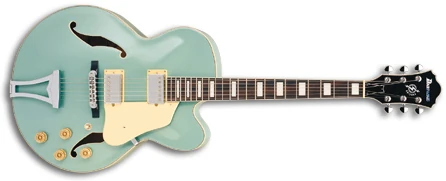

2004 AF75D TQ 12 01.jpg
Turquoise
HH 3-way toggle.png
Pickup switching
Controls 2V2T3 hollow.png
Control layout
