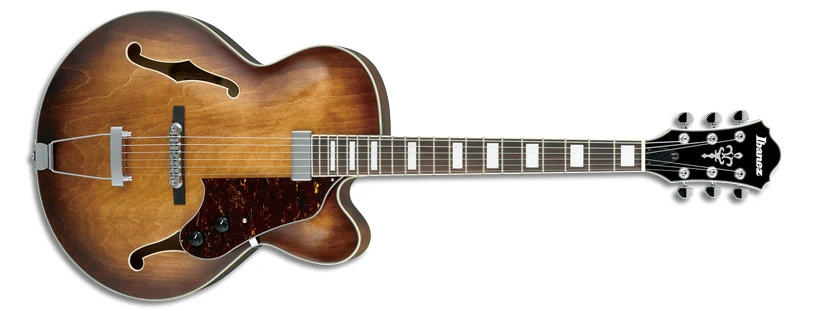

2018 AF71F TBC 5B 02
AF71F Tobacco Brown (more images) Red copyright sprite

The AF71F is an Artcore series hollow body electric guitar model introduced by Ibanez for 2014. It was initially produced in China; starting in 2016 was also produced in Indonesia.

The AF71F features a full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 20-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a single, floating Ibanez Artcore mini humbucking pickup with chrome cover mounted to a tortoise shell pickguard which also houses the volume and tone controls, a Tune-o-matic style bridge on a wooden base, a trapeze tailpiece, a plastic nut, and Ibanez tuning machines.

For 2015 the pickup was replaced with the Classic Elite mini humbucker and the pearl block inlays were replaced with acrylic block.

The AF75 is a related model with a pair of humbucker pickups.

The AF71F was discontinued after 2019.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AF71F
Year(s) offered: 2014–2018
Sold in: USA
Made in: China (2014–2018) / Indonesia (2016–2018)
Finish(es): Black (BK) 2014–2015 / Tobacco Brown (TBC)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15⅝"
  Depth: 92mm / 3⅝"
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT106 trapeze
Pickguard:
4-ply tortoiseshell/ white/ black/ white
Knob style:
Plastic septangle (black)
Hardware color:
Chrome
Neck
Neck type:
AF Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
2014: Pearl block
2015–2018: Acrylic block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
H
Neck pickup:
2014: Ibanez Artcore Mini (H)
2015–2018: Ibanez Classic Elite Mini (H)
Controls:
Master volume / master tone
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

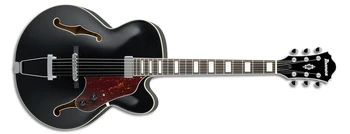

2015 AF71F BK 12 02
Black
Controls VT
Control layout
