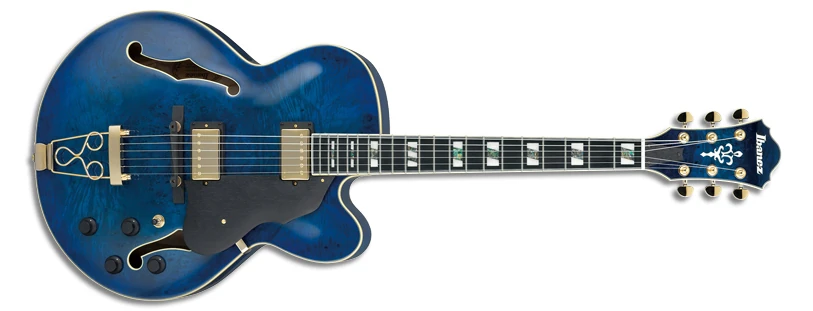

2014 AF255BM BLG 12 01
AF255BM Blue Lagoon Red copyright sprite

The AF255BM is an Artstar series hollow body electric guitar model introduced by Ibanez in late 2013. It was made in China.

The AF255BM features a full-hollow body design with a burl maple top with ƒ holes and cream multi-binding on burl maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret ebony fingerboard with cream binding and pearl and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, an ebony bridge with a compensated ebony saddle and a trapeze tailpiece, a bone nut, a bakelite pickguard with rosewood veneer, rosewood knobs, and Gotoh tuning machines.

In late 2014 the fretboard inlays were changed to acrylic and abalone.

The AF155 is a related model with a flamed maple body. The AS253BM is a related semi-hollow guitar.

The AF255BM was discontinued after 2016.

Specifications[]

Related content: Artstar series | Models-icon
Specifications for AF255BM
Year(s) offered: 2013–2016
Sold in: USA
Made in: China
Finish(es): Blue Lagoon (BLG)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝
Top:
  Material: Burl maple (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Burl maple
Neck joint:
Set-in
Bridge:
ART-W w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT106 w/ decoration
Pickguard:
Rosewood veneer on bakelite
Knob style:
Rosewood bell
Hardware color:
Gold
Neck
Neck type:
Artstar AF
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ cream binding
Fingerboard inlays:
2013–2014: Pearl and abalone split block
2014–2016: Acrylic and abalone split block
Frets:
20 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls GB10
Control layout
