2013 AF155 AWB 12 01
AF155 Aged Whiskey Burst Red copyright sprite

The AF155 is an Artstar series hollow body electric guitar model introduced by Ibanez for 2013. It was made in China.

The AF155 features a full-hollow body design with a flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 20-fret ebony fingerboard with cream binding and pearl and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, an ebony bridge with a compensated ebony saddle and a trapeze tailpiece, a bone nut, a bakelite pickguard with flamed maple veneer, Sure Grip III knobs, and Gotoh tuning machines.

For 2015 the fretboard inlays were changed to acrylic and abalone.

The AF155L is a left-handed version. The AF151 is a similar model without the bridge pickup. The AS153 is a related semi-hollow guitar.

The AF155 was discontinued in 2018.

Specifications

Specifications for AF155
Year(s) produced: 2013–2018
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Antique Amber (AA) 2013–2014 / Aged Whiskey Burst (AWB) / Antique Yellow Sunburst (AYS) 2017–2018
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
ART-W w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT106 w/ decoration
Pickguard:
Flamed maple w/ matching finish
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
Artstar AF
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ cream binding
Fingerboard inlays:
2013–2014: Pearl and abalone split block
2015–2018: Acrylic and abalone split block
Frets:
20 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
2014 AF155 AA 12 02
Antique Amber

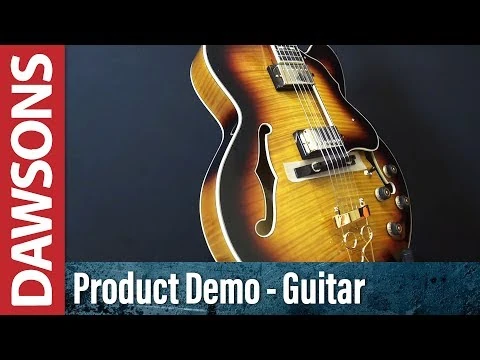

2017 AF155 AYS 12 02
Antique Yellow Sunburst
HH 3-way toggle
Pickup switching
Controls GB10
Control layout
