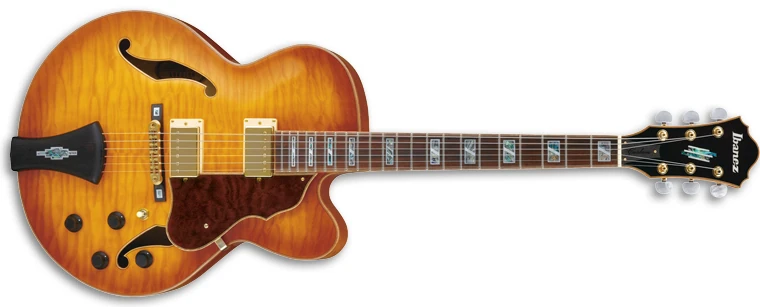

2012 AF125 AMB 12 02
AF125 Amber Burst (more images) Red copyright sprite

The AF125 is an Artcore Custom series hollow body electric guitar model introduced by Ibanez in mid 2006. It was made in China.

The AF125 features a full-hollow body design with a quilted maple top with ƒ holes and flamed maple binding on quilted maple back and sides with a single Venetian cutaway mated to a set-in maple and walnut neck with a 20-fret rosewood fingerboard with flamed maple binding and pearl and abalone custom block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base and a tailpiece with custom wood cover, a plastic nut, a quilted maple pickguard with brown finish, rosewood bell-shaped knobs, and Ibanez die-cast tuning machines with white half moon buttons.

The AF105 is a related model with flamed maple body and Super 58 Custom pickups.

The AF125 was discontinued after 2012.

Specifications[]

Specifications for AF125
Model name: AF125
Year(s) offered: 2006–2012
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China
Finish(es): Amber Burst (AMB) 2007–2012 / Natural (NT) 2006–2008
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝ (70mm at heel)
Top:
  Material: Quilted maple (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Quilted maple
Neck joint:
Set-in
Bridge:
ART-1 w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT-04 w/ wooden cover
Pickguard:
Quilted maple veneer on bakelite w/ brown finish
Knob style:
Rosewood bell
Hardware color:
Gold
Neck
Neck type:
Artcore Custom AF
Neck material:
5-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl and abalone custom block
Frets:
22 / large (rounded edge treatment)
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white acrylic half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details
2008 AF125 NT 12 01
Natural
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
