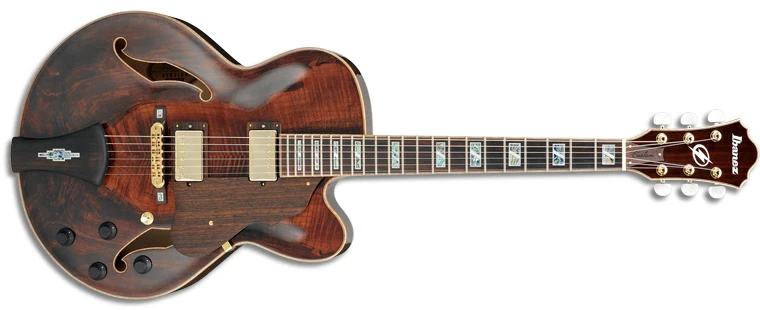

2007 AF105SM ABR 12 01
AF105SM Antique Brown (more images) Red copyright sprite

The AF105SM is an Artcore Custom series hollow body electric guitar model introduced by Ibanez for 2007. It was made in China.

The AF105SM features a full-hollow body design with a spalted maple top with ƒ holes and cream multi-binding on spalted maple back and sides with a single Venetian cutaway mated to a set-in maple and walnut neck with a 20-fret rosewood fingerboard with cream binding and pearl and abalone custom block position markers. Components include a pair of Ibanez Super 58 Custom humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base and a tailpiece with custom wood cover, a plastic nut, a rosewood pickguard and truss rod cover, rosewood bell-shaped knobs, and Ibanez die-cast tuning machines with white half moon buttons.

For 2009 a new Exotic Explorer finish with a vintage world map decal overlaid on the top was introduced. The AS103BM is a semi-hollow model offered with a similar finish.

Several similar models with different body materials were produced — the AF105 (flamed maple), the AF105BM (burl mahogany), and the AF105HK (Hawaiian koa). The AS103SM is a related semi-hollow body model.

The AF105SM was discontinued after 2009.

Specifications

Specifications for AF105SM
Year(s) produced: 2007–2009
Sold in: Worldwide
Made in: China
Finish(es): Antique Brown (ABR) / Exotic Explorer (EE) 2009 / Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝
Top:

  Material: Spalted maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Spalted maple

Neck joint:
Set-in
Bridge:
ART-1 w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT-04 w/ wooden cover
Pickguard:
Rosewood
Knob style:
Rosewood
Hardware color:
Gold
Neck
Neck type:
Artcore Custom AF
Neck material:
5-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl and abalone custom block
Frets:
20 / large (rounded edge treatment)
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white acrylic half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 Custom (H) passive/ceramic
Neck pickup:
Ibanez Super 58 Custom (H) passive/ceramic
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

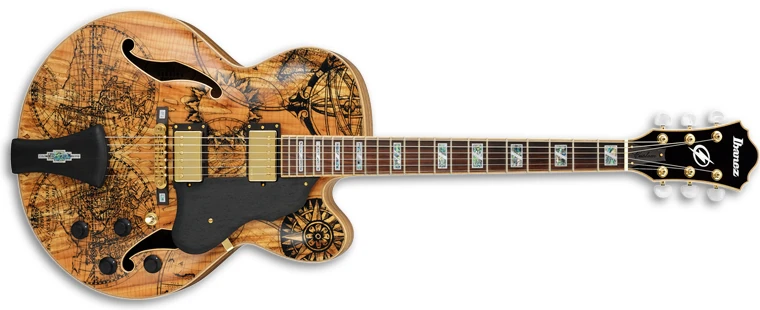

2009 AF105SM EE 12 01
Exotic Explorer
2008 AF105SM NT 12 01
Natural
HH 3-way toggle
Pickup switching
Controls GB10
Control layout
