2005 AF105F NT 12 01

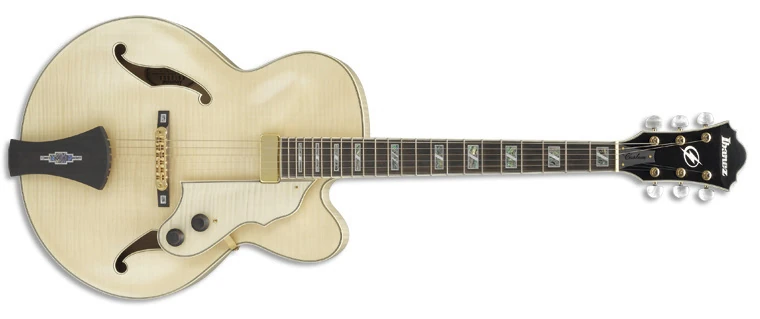

AF105F Natural (more images) Red copyright sprite

The AF105F is an Artcore Custom series hollow body electric guitar model introduced by Ibanez for 2005. It was made in China.

The AF105F features a full-hollow body design with a flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in maple and bubinga neck with a 20-fret rosewood fingerboard with cream binding and pearl and abalone custom block position markers. Components include a single, floating Ibanez Custom-F humbucking pickup with gold cover mounted at the neck, a Tune-o-matic style bridge on a wooden base and a tailpiece with custom wood cover, a plastic nut, a flamed maple pickguard with volume and tone pots, rosewood knobs, and Ibanez die-cast tuning machines with white half moon buttons.

The AF105 is a related model with a pair of humbuckers mounted into the body.

The AF105F was discontinued after 2007.

Specifications

Specifications for AF105F
Year(s) produced: 2005–2007
Sold in: Worldwide
Made in: China
Finish(es): Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
ART-1 w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT-04 w/ wooden cover
Pickguard:
Flamed maple veneer on bakelite w/ matching finish
Knob style:
Rosewood
Hardware color:
Gold
Neck
Neck type:
Artcore Custom AF
Neck material:
5-piece maple/ bubinga
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl and abalone custom block
Frets:
20 / large (rounded edge treatment)
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white acrylic half moon buttons
Electronics/ Strings
Pickup configuration:
H
Neck pickup:
Ibanez Custom-F neck (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
Controls VT
Control layout
