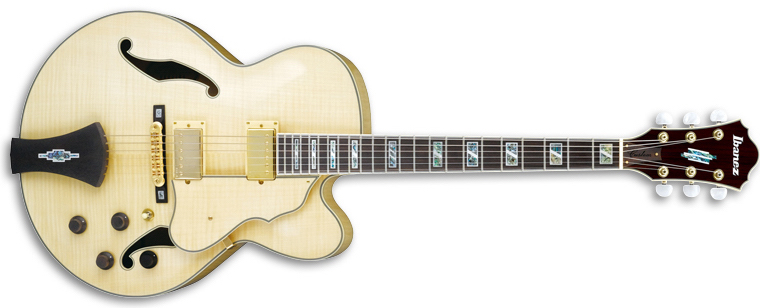

2012 AF105 NT 12 02
AF105 Natural (more images) Red copyright sprite

The AF105 is an Artcore Custom series hollow body electric guitar model introduced by Ibanez for 2005. It was made in China.

The AF105 features a full-hollow body design with a flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in maple and walnut neck with a 20-fret rosewood fingerboard with cream binding and pearl and abalone custom block position markers. Components include a pair of Ibanez Super 58 Custom humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base and a tailpiece with custom wood cover, a plastic nut, a flamed maple pickguard, rosewood knobs, and Ibanez die-cast tuning machines with white half moon buttons.

Several similar models with different body materials were produced — the AF105BM (burl mahogany), the AF105HK (Hawaiian koa), and the AF105SM (spalted maple). The AF105F is a related model with a single floating pickup at the neck. The AF125 is a related model with quilted maple body and Super 58 pickups. The AF100 is a similar model with a maple body.

The AF105 was discontinued after 2012. The somewhat similar AF155 was introduced for 2013.

Specifications

Specifications for AF105
Year(s) produced: 2005–2012
Sold in: Worldwide
Made in: China
Finish(es): Amber Burst (AMB) 2007–2008 / Light Black ? (LBK) 2006 / Natural (NT) / Vintage Burst 2009–2012
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
ART-1 w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT-04 w/ wooden cover
Pickguard:
Flamed maple w/ matching finish
Knob style:
Rosewood
Hardware color:
Gold
Neck
Neck type:
Artcore Custom AF
Neck material:
5-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl and abalone custom block
Frets:
20 / large (rounded edge treatment)
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white acrylic half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 Custom (H) passive/ceramic
Neck pickup:
Ibanez Super 58 Custom (H) passive/ceramic
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
2008 AF105 AMB 12 01
Amber Burst
2006 AF105 LBK 12 01
Light Black

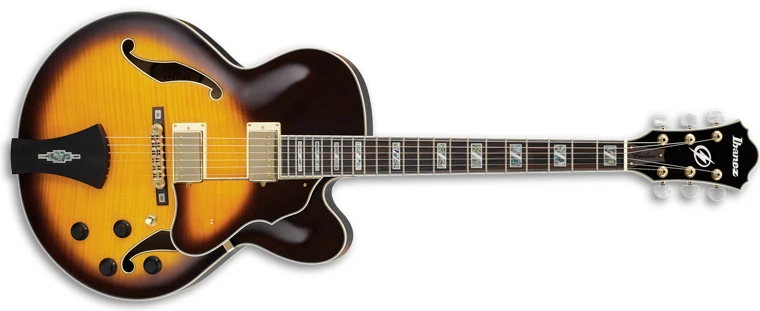

2009 AF105 VB 12 01
Vintage Burst
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
