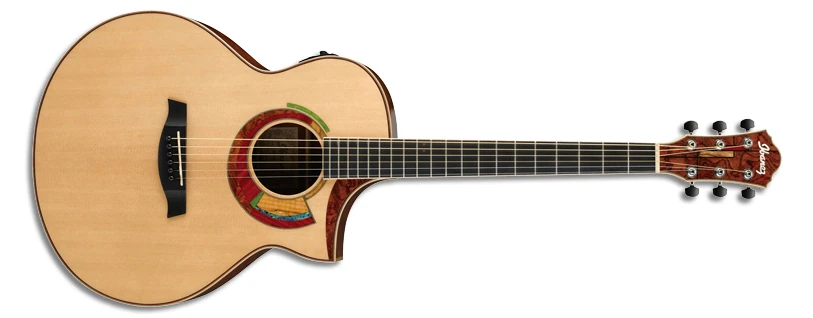

2014 AEW2014LTD NT 12 01
AEW2014LTD Natural High Gloss Red copyright sprite

The AEW2014LTD is an AEW series acoustic-electric guitar model introduced by Ibanez for 2014. It was a spot model which was produced in China. It was also referred to as the AEW14LTD1.

The AEW2014LTD features a grand concert shaped body with a soft Florentine cutaway. The top is laminated spruce with maple binding on figured bubinga sides and a two-piece back with wooden multi strip inlay. The finish is a natural high gloss. The round soundhole has a special wooden marquetry inlay of bubinga, spalted maple and abalone. It has a mahogany neck with a dovetail neck joint and a 25½" scale, 20-fret rosewood fingerboard with padauk dot position markers only at the twelfth fret. Components include a plastic saddle in a rosewood bridge, black plastic bridge pins, a plastic nut, and chrome Ibanez die-cast tuning machines with black buttons.

Electronics consist of a Fishman Sonicore pickup, an Ibanez AEQ-SP2 preamp with onboard tuner powered by a 9V battery and balanced XLR and ¼" outputs.

The AEW14LTD2, AEW14LTD3, and AEW14LTD4 are three other similar limited edition models which have different top inlay designs. The AEW23ZW is a similar model with zebrawood back and sides. The AEW23MV is a similar model with movingui back and sides. The AEW22CD is a related model with cordia or walnut back, sides and top inlay. The AEW21VK is a related model with a related model with ovangkol.

The AEW2014LTD was offered only in 2014.

Specifications[]

Related content: AEW series | Models-icon
Specifications for AEW2014LTD
Name: AEW2014LTD
Year(s) offered: 2014
Sold in: Europe
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
AEW grand concert body w/ soft Florentine cutaway
Dimensions:
  Body length: 508mm/ 20"
  Width: 406mm/ 16"
  Depth: 102mm/ 4" (85mm at neck joint/ 100mm at body end)
Top:
  Material: Spruce (laminated)
  Bracing: X bracing
  Finish: Gloss
  Binding: Maple
Back/sides:
  Material: Figured bubinga
  Strip inlay: Wooden multi
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Wooden marquetry with bubinga, spalted maple & abalone
Neck
Neck profile:
AEW
Neck material:
1-piece mahogany
Neck finish:
Satin
Scale length:
648mm/ 25½"
Fingerboard:
Rosewood
Inlays:
Padauk dot at 12th fret
Frets:
20
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast w/ black buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
XLR & ¼" (balanced)
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Black plastic
Saddle:
Plastic
Hardware color:
Chrome
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

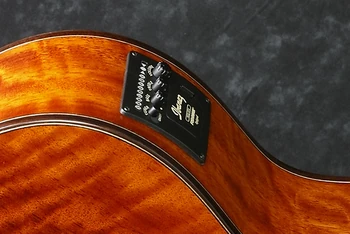

2014 AEW23MV NT preamp
AEW-SP2 preamp
XLR quarter-inch output
XLR & ¼" balanced output
AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
