AEL10L

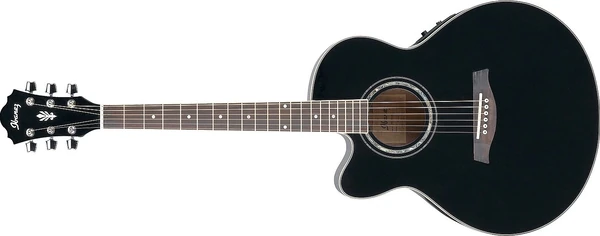

AEL10L Black

The AEL10L is a left-handed AEL series acoustic/electric guitar model introduced by Ibanez for 2003. It was produced in China.

The AEL10L features an AEL jumbo-sized body with a Venetian cutaway constructed of a laminated spruce top on laminated mahogany sides and back with a gloss finish. The soundhole is round with an abalone rosette. The mahogany neck joins the body at the 14^th fret and has a rosewood fingerboard with 20 frets and white dot position markers. Components include a compensated plastic saddle in a scalloped rosewood ebony bridge with Ibanez Advantage pins, a plastic nut, and chrome die-cast tuning machines.

For 2004 the nut and saddle were changed to Ivorex II, the bridge pins were changed to Ibanez Advantage pins, and the factory strings were changed from Elixir to D'Addario.

The AEL10 is a right handed version.

The AEL10L was discontinued after 2004 and replaced for 2005 with the AEL10LE which is a similar model with a different preamp.

Specifications[]

Related content: AEL series | AE series | Left-handed guitar models |

Specifications for AEL10L

Name: AEL10L

Year(s) offered: 2003-2004

Sold in: USA

Made in: China

Finishes: Black (BK)

Body

Body type:
Acoustic

Body shape:
AEL body w/ Venetian cutaway

Dimensions:
  Body length: 510mm/ 20"
  Width: 406mm/ 16"
  Depth: 125mm/ 5"

Top:
  Material: Spruce (laminated)
  Bracing: Standard X
  Finish: Low gloss
  Binding: Ivory

Back/sides:
Material: Mahogany (laminated)
Finish: Low gloss

Soundhole shape:
Round

Soundhole rosette:
Abalone & wooden w/ soundhole binding

Neck

Neck profile:
AEL

Neck material:
Mahogany

Scale length:
648mm/ 25½"

Fingerboard:
Rosewood w/ White binding

Inlays:
White dot

Frets:
20 / medium nickel silver (rounded edge treatment)

Nut:
2003: Ivory plastic
2004: Ivorex-II (43mm)

Machine heads:
Die-cast

Strings (factory):
2003: Elixir
2004: .012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Electronics/ components

Pickup:
Fishman Sonicore under saddle

Preamp:
Ibanez SST Shape Shifter preamp w/ onboard tuner

Output jack(s):
Balanced XLR and ¼" stereo

Battery:
2x 2032 3V lithium coin

Bridge:
Rosewood

Bridge pins:
2003: Ivory plastic w/ black dot
2004:Ibanez Advantage (white w/ black dot)

Saddle:
2003: Ivory plastic compensated
2004: Ivorex-II compensated (11mm string spacing)

Hardware color:
Chrome

Strap buttons:
standard

Sources[]

2003 USA catalog (p. 12)
AEL10L-BK (14-01) parts list, Ibanez parts catalog, archived September 2025
AEL10L-BK (14-02) parts list, Ibanez parts catalog, archived September 2025
AEL10L product page, Ibanez USA, archived July 2003
