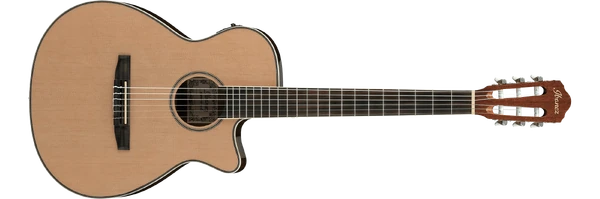

2019 AEG8TNE NT 2Y 05 en 1.png
AEG8TNE Natural High Gloss (more images) Red copyright sprite.png

The AEG8TNE is an AEG series acoustic/ electric guitar model introduced by Ibanez for 2015. It was produced in China.

The AEG8TNE features a thin grand concert shaped body with a soft Venetian cutaway. The top is laminated spruce with binding on mahogany back and sides. The round soundhole has a black & white acrylic rosette. It has a satin-finish mahogany neck with a 25" scale, 21-fret rosewood fingerboard with small white dot position markers. Components include a plastic saddle in a rosewood bridge, a plastic nut, and chrome Ibanez classical tuning machines. Electronics consist of an Ibanez under saddle pickup connected to an Ibanez AEQ-2T preamp with onboard tuner powered by a 9V battery and ¼" stereo output.

For 2018 the back & sides were switched to sapele and the rosewood fretboard and bridge were replaced with purpleheart. For 2019 the mahogany neck was replaced with okoume.

The AEG8E is a similar steel string model.

The AEG8TNE was discontinued after 2019.

Specifications

Specifications for AEG8TNE
Years: 2015–2019
Sold in: Asia & Africa / China / North & South America and Oceania
Made in: China
Finishes: Black Flat (BKF) / Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway
Dimensions:
  Length: 489mm/ 19¼"
  Width: 381mm/ 15"
  Depth: 76mm/ 3"
Top:

  Material: Spruce
  Bracing: Fan
  Binding: Ivory (plastic)

Back/sides:

  Material: 2015–2017: Mahogany
                2018–2019: Sapele

Soundhole shape:
Round
Soundhole rosette:
Black & While multi
Neck
Neck profile:
AEG
Neck material:
2015–2018: 1-piece mahogany
2019: 1-piece okoume
Neck finish:
Satin
Scale length:
634mm/ 25"
Fingerboard:
2015–2017: Rosewood w/ white binding
2018–2019: Purpleheart w/ white binding
Inlays:
Small white dot
Frets:
21 / Large
Nut:
Plastic (43mm)
Machine heads:
Ibanez classical
Electronics/ Components
Pickup:
Ibanez Undersaddle
Preamp:
Ibanez AEQ-2T w/ onboard tuner
Output jack(s):
¼" stereo
Battery:
9V
Bridge:
2015–2017: Rosewood
2018–2019: Purpleheart (11.6mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic
Hardware color:
Chrome
Strings (factory):
2015–2016: D'Addario EXP
2017–2019:.0280/.0322/.0403/.029/.035/.043 (Ibanez ICLS6NT clear nylon & silver plated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
2019 AEG8TNE BKF 2Y 05 en 1.png
Black Flat
Ibanez AEQ-2T diagram.jpg
AEQ-2T preamp diagram
