AEG74

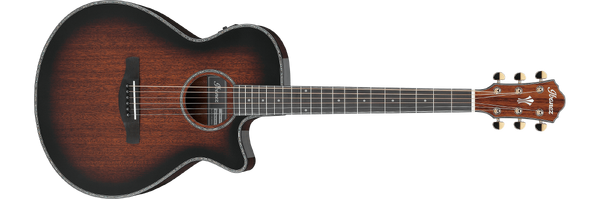

AEG74 Mahogany Sunburst High Gloss (more images)

The AEG74 is an AEG series acoustic/ electric guitar model introduced by Ibanez for 2023. It is produced in Indonesia.

The AEG74 features a thinner grand concert shaped body with a soft Venetian cutaway. The top is sapele with abalone binding on bocote back and sides with a high gloss finish. The round soundhole has an abalone purfling rosette. It has a nyatoh neck with a 25" scale, a Comfort Grip profile, a satin-finish, and a 20-fret Macassar ebony fingerboard with small white dot position markers. Components include a plastic saddle in an Indonesian ebony bridge, Ibanez Advantage bridge pins, a plastic nut, and Ibanez gold die-cast tuning machines.

Electronics consist of an Ibanez T-bar II undersaddle pickup connected to an Ibanez AEQ-TTS preamp with onboard tuner and LCD display powered by a 9V battery and feeding balanced XLR and ¼" stereo output jacks.

The AEG74N is a similar nylon-stringed model.

Specifications

Related content: AEG series |

Specifications for AEG74

Name: AEG74 Year(s) offered: 2023–2025 Sold in: Americas & Oceania / Asia & Africa / Europe Made in: Indonesia Price: MSRP: €469 (2024) Finishes: Mahogany Sunburst High Gloss (MHS)
Body Body type: Acoustic Body shape: AEG thin grand concert body shape w/ soft Venetian cutaway Dimensions:   Body length: 492mm/ 19⅜"   Width: 381mm/ 15"   Depth: 95mm/ 3¾" Top:   Material: Sapele (laminated)   Finish: High gloss   Binding: Abalone purfling Back/sides:   Material: Bocote   Finish: High gloss Soundhole shape: Round Soundhole rosette: Abalone purfling	Neck Neck profile: AEG Comfort Grip Neck material: 1-piece nyatoh Scale length: 634mm/ 25" Fingerboard: Macassar ebony Inlays: Small white dot Frets: 20 nickel silver Nut: Plastic (43mm) Machine heads: Ibanez die-cast (18:1 gear ratio) Strings (factory): .012/.016/.024/.032/.042/.053 (Ibanez IACSP6C Phosphor Bronze coated) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics/ components Pickup: Ibanez T-bar II undersaddle Preamp: Ibanez AEQ-TP2 w/ onboard tuner Output jack(s): Balanced XLR & ¼" stereo box Battery: 9V Bridge: Indonesian ebony (11mm string spacing) Bridge pins: Ibanez Advantage bridge pins (black w/ white dot) Saddle: Plastic (compensated) Hardware color: Gold

Images

Additional details

Indonesian ebony bridge

Gold die-cast tuners

AEQ-TP2 preamp diagram

AEQ-TP2 preamp
