For the model with the same name made in Indonesia, see AEG50L (China).

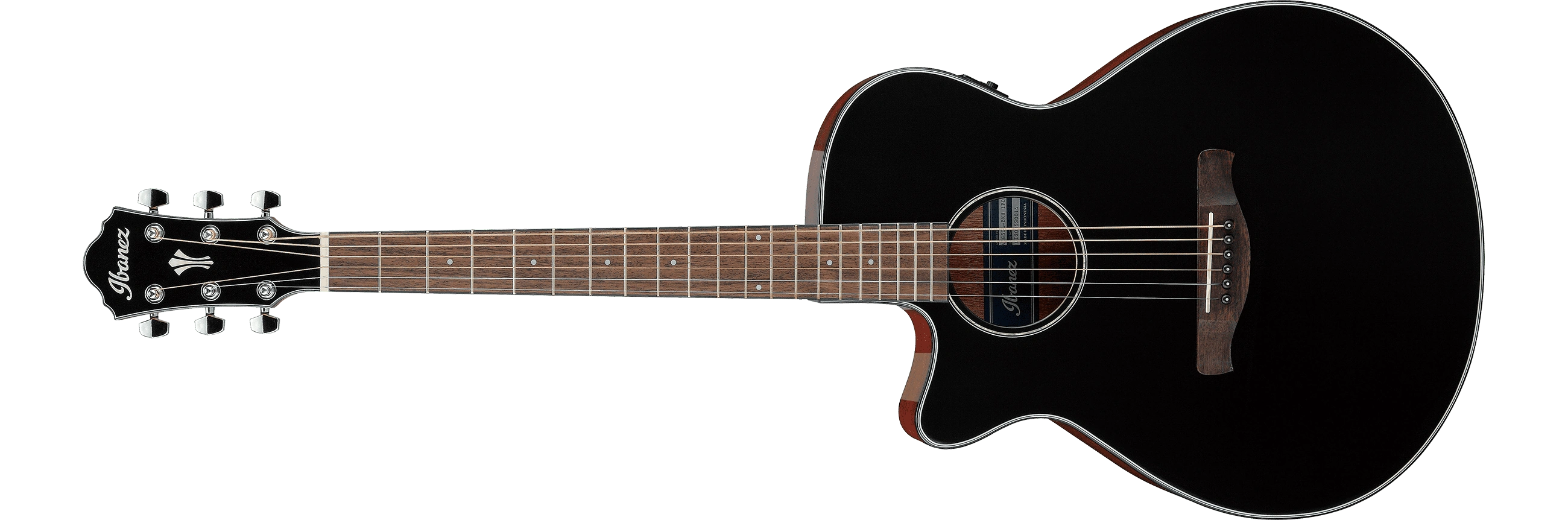

2021 AEG50L BKH 1P 02
AEG50L Black Burst High Gloss Red copyright sprite

The AEG50L is a left handed AEG series acoustic/ electric guitar model introduced by Ibanez for 2020. The version documented here is produced in Indonesia for sale in several markets, another model with the same name that is produced in China is sold in Japan and the USA; the two versions are similar but have some differences in their specifications.

The AEG50L features a thinner grand concert shaped body with a soft Venetian cutaway. The top is laminated spruce with black and white binding on okoume back and sides with a high gloss finish. The round soundhole has a black & white acrylic rosette. It has a satin-finish nyatoh neck with a 25" scale, 20-fret laurel fingerboard with small white dot position markers. Components include a plastic saddle in a laurel bridge, Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez die-cast tuning machines.

Electronics for the AEG50L consist of an Ibanez T-bar II undersaddle pickup connected to an Ibanez AEQ-TTS preamp with onboard tuner and LCD display powered by a 9V battery and feeding a ¼" stereo output jack.

The AEG50 is a right handed version.

Specifications[]

Specifications for AEG50L (Indonesia)
Name: AEG50L (Indonesia)
Year(s) offered: 2021–2025
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: Indonesia
Price: MSRP: 389 (2024[1])
Finishes: Black High Gloss (BKH)
Body
Body type:
Acoustic
Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway
Dimensions:
  Body length: 489mm/ 19¼"
  Width: 381mm/ 15"
  Depth: 95mm/ 3¾"
Top:
  Material: Spruce (laminated)
  Finish: High gloss
  Binding: Black & white
Back/sides:
  Material: Okoume (laminated)
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Black & white acrylic
Neck
Neck profile:
AEG (MII)
Neck material:
1-piece nyatoh
Scale length:
634mm/ 25"
Fingerboard:
Laurel
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Strings (factory):
.012/.016/.024/.032/.042/.053 (Ibanez IACSP6C Phosphor Bronze coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
Ibanez T-bar II undersaddle
Preamp:
Ibanez AEQ-TTS w/ onboard tuner
Output jack(s):
¼" stereo
Battery:
9V
Bridge:
Laurel
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dot)
Saddle:
Plastic (11mm string spacing)
Hardware color:
Chrome

Images[]

Additional details

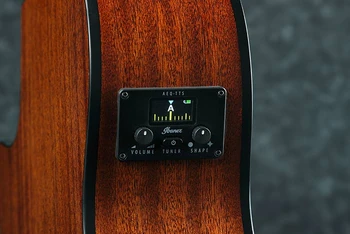

AEQ-TTS preamp
AEQ-TTS preamp
AEQ TTS preamp diagram
AEQ-TTS preamp controls
