2016 AEG26Ⅱ NTC 12 02

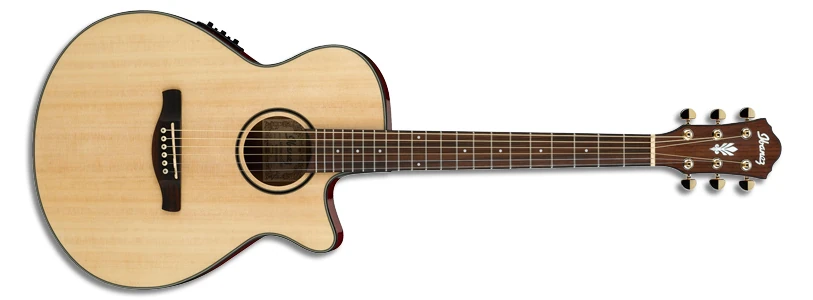

AEG26Ⅱ (Top: Natural High Gloss; Back & sides: Cherry Red High Gloss) Red copyright sprite

The AEG26Ⅱ is an AEG series acoustic/ electric guitar model introduced by Ibanez for 2015. It was produced in China and sold only in Japan.

The AEG26Ⅱ features a thin grand concert shaped body with a soft Venetian cutaway. The top is laminated spruce with black and white binding on maple burl back and sides with a low gloss natural finish. The round soundhole has an acrylic rosette. It has a satin-finish mahogany neck with a 25" scale, 21-fret rosewood fingerboard with small white dot position markers. Components include a plastic saddle in a rosewood bridge, Ibanez Advantage bridge pins, a plastic nut, and gold Ibanez die-cast tuning machines. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ210TF preamp with onboard tuner powered by a 9V battery and ¼" stereo output jack.

The AEG24Ⅱ is a related model with a flamed maple top and mahogany back and sides.

The AEG26Ⅱ was discontinued after 2016.

Specifications[]

Related content: AEG series | Models-icon
Specifications for AEG26Ⅱ
Name: AEG26Ⅱ
Year(s) offered: 2015–2016
Sold in: Japan
Made in: China
Price: MSRP: ¥66,000 (2015–2016)
Finishes: Top: Natural High Gloss; Back & sides: Cherry Red High Gloss (NTC)
Body
Body type:
Acoustic
Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway
Dimensions:
  Length: 489mm/ 19¼"
  Width: 381mm/ 15"
  Depth: 86mm/ 3⅜"
Top:
  Material: Spruce (laminated)
  Finish: Gloss
  Binding: Black & white
Back/sides:
  Material: Maple burl
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Acrylic
Neck
Neck profile:
AEG
Neck material:
1-piece mahogany
Neck finish:
Satin
Scale length:
634mm/ 25"
Fingerboard:
Rosewood w/ white binding
Inlays:
Small white dot
Frets:
21 / large
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ210TF w/ onboard tuner
Output jack(s):
¼" stereo
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic
Hardware color:
Gold
Strings (factory):
.010/.014/.023/.030/.039/.047 (D'Addario EXP10) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

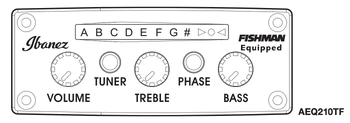

AEQ210TF preamp diagram
AEQ210TF preamp diagram
