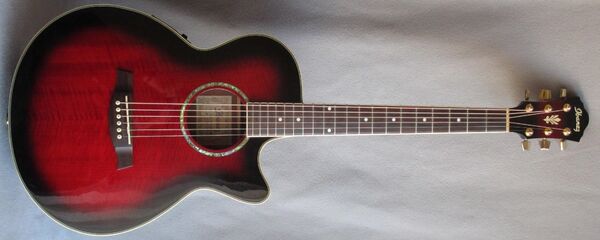

AEG20E Transparent Red Sunburst (more images)

The AEG20E is an AEG series acoustic/ electric guitar model introduced by Ibanez for 2009. It was produced in China.

The AEG20E features a thinner grand concert shaped body with a soft Venetian cutaway with a flamed maple top on mahogany back and sides with a high gloss finish. The round soundhole has an abalone purfling rosette. It has a satin-finish confort grip mahogany neck with a 25" scale, 20-fret rosewood fingerboard with small white dot position markers. Components include a plastic saddle in an rosewood bridge, Ibanez Advantage bridge pins, a plastic nut, and Ibanez gold Smooth tuner AS machines. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ-SST Shape Shifter preamp with onboard tuner and LCD display powered by a 9V battery and Balanced XLR & ¼" stereo output jack.

The AEG10E is a related model with spruce top.

The AEG20E was discontinued after 2012.

Specifications[]

Related content: AEG series |
Specifications for AEG20E
Name: AEG20E
Year(s) offered: 2009-2012
Sold in: Europe / North America (excl. USA) 2009 / Japan 2012
Made in: China
Price: MSRP: JP¥: 50,000 (2012)
Finishes: Transparent Gray (TG) / Transparent Red Sunburst (TRS) / Vintage Violin (VV)
Body
Body type:
Acoustic
Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway
Dimensions:
  Body length: 492mm/ 19⅜"
  Width: 381mm/ 15"
  Depth: 95mm/ 3¾"
Top:
  Material: Flamed maple (laminated)
  Finish: High gloss
  Binding: Abalone purfling
Back/sides:
  Material: Mahogany
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone purfling
Neck
Neck profile:
AEG
Neck material:
1-piece mahogany w/ Confort grip
Scale length:
634mm/ 25"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Ivorex II (43mm)
Machine heads:
Ibanez Gold Smooth Tuner AS (18:1 gear ratio)
Strings (factory):
.012/.016/.024/.032/.042/.053 (Ibanez IACSP6C Phosphor Bronze coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SST Shape Shifter preamp w/ onboard tuner
Output jack(s):
Balanced XLR & ¼"
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dot)
Saddle:
Ivorex II
Hardware color:
Gold

Images[]

Available finishes
Transparent Gray
Vintage Violin
Additional details
Brand & Label (China)
Headstock (TRS finish)
Ibanez Gold tuners
Balanced XLR and ¼" stereo outputs & battery door
AEQ-SST Shape Shifter preamp
2005–2014 (US) / 2010–2014 (Non-US)
AEQ-SST Shape Shifter preamp controls
2005–2014 (US) / 2010–2014 (Non-US)
