2019 AEG19LII TIB 5B 01

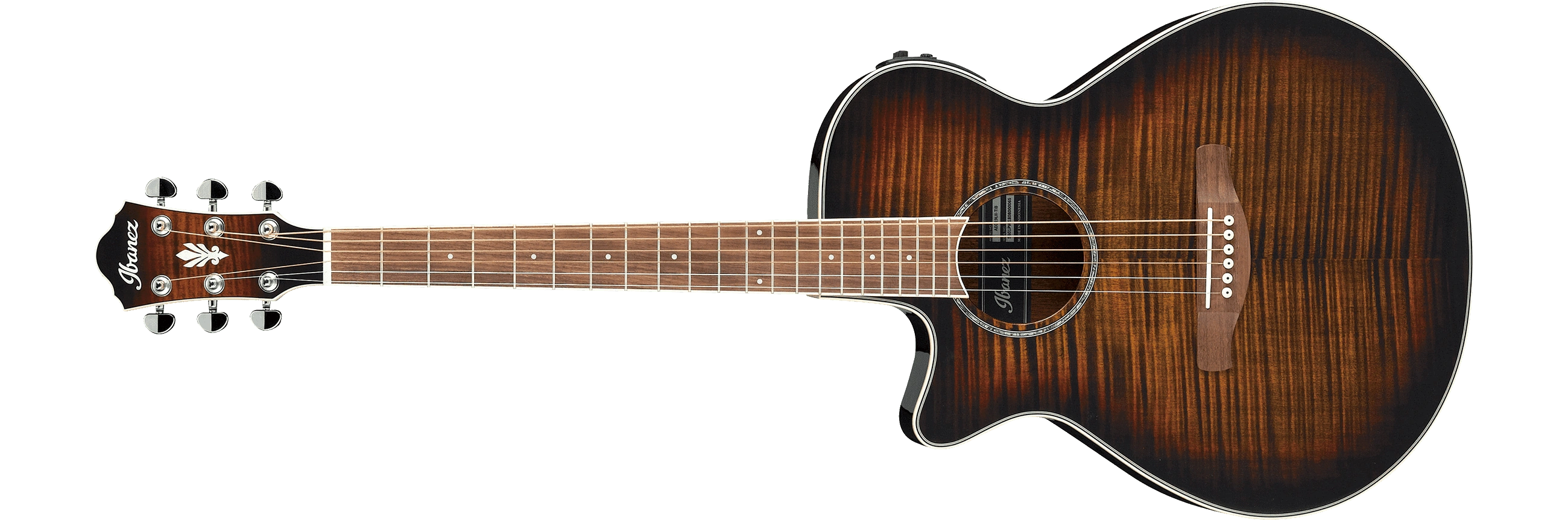

AEG19LⅡ Tiger Burst High Gloss (more images) Red copyright sprite

The AEG19LⅡ is a left-handed AEG series acoustic/ electric guitar model introduced by Ibanez in 2019. It was produced in China.

The AEG19LⅡ features a thinner grand concert shaped body with a soft Venetian cutaway. The top is laminated flamed maple with black and white binding on sapele back and sides with a high gloss finish. The round soundhole has an abalone rosette. It has a satin-finish nyatoh neck with a 25" scale, 21-fret laurel fingerboard with small white dot position markers. Components include a plastic saddle in a laurel bridge, Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez die-cast tuning machines with half moon buttons. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ-SP1 preamp with onboard tuner powered by a 9V battery and ¼" stereo output jack.

The AEG19Ⅱ is a right-handed version.

The AEG19LⅡ was discontinued after 2019.

Specifications[]

Related content: Left-handed guitar models | AEG series | Models-icon
Specifications for AEG19LⅡ
Name: AEG19LⅡ
Year(s) offered: 2019
Sold in: USA
Made in: China
Finishes: Tiger Burst High Gloss (TIB)
Body
Body type:
Acoustic
Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway
Dimensions:
  Body length: 489mm/ 19¼"
  Width: 381mm/ 15"
  Depth: 86mm/ 3⅜"
Top:
  Material: Flamed maple
  Finish: High gloss
  Binding: Black & white
Back/sides:
  Material: Sapele
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AEG
Neck material:
1-piece nyatoh
Neck finish:
Satin
Scale length:
634mm/ 25"
Fingerboard:
Laurel w/ white binding
Inlays:
Small white dot
Frets:
21 / Large
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SP1 w/ onboard tuner
Output jack(s):
¼" stereo
Battery:
9V
Bridge:
Laurel (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic
Hardware color:
Chrome
Strings (factory):
.012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

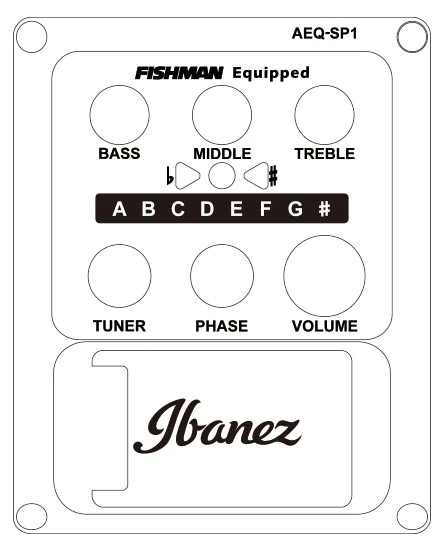

Ibanez AEQ-SP1 preamp diagram
AEQ-SP1 preamp diagram
