AEG10Ⅱ

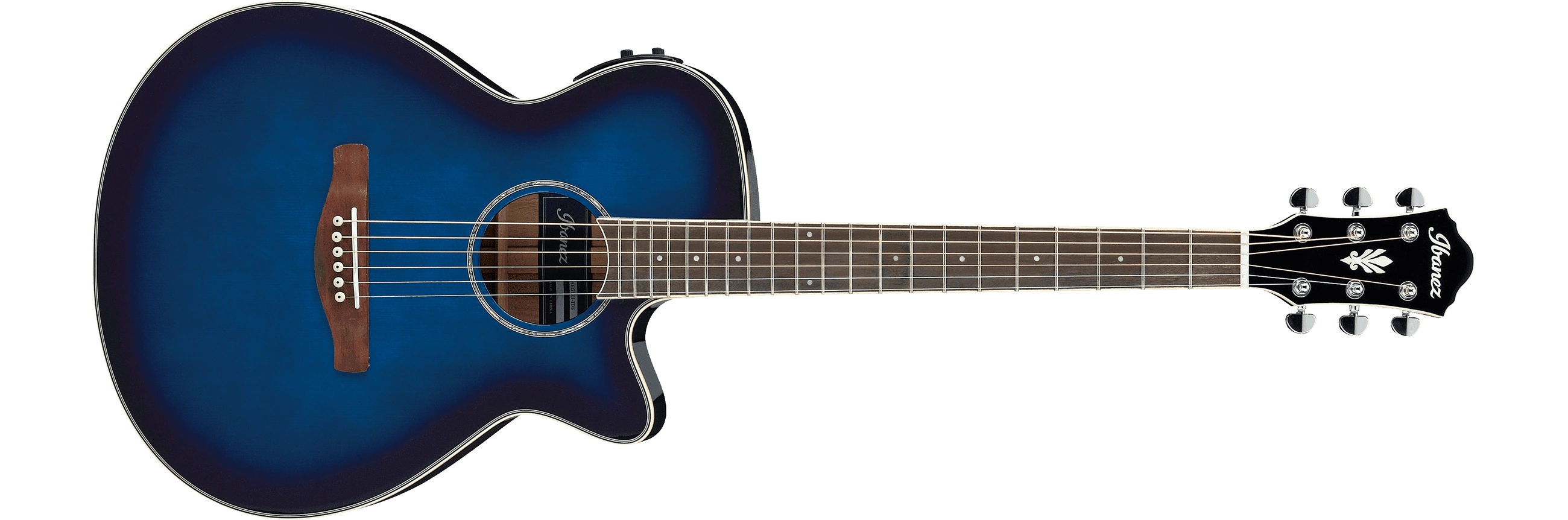

AEG10Ⅱ Transparent Blue Sunburst High Gloss (more images)

The AEG10Ⅱ is an AEG series acoustic/ electric guitar model introduced by Ibanez for 2013. It was produced in China and replaced the similar AEG10E.

The AEG10Ⅱ features a thinner grand concert shaped body with a soft Venetian cutaway. The top is laminated spruce with ivory binding on mahogany back and sides with a high gloss finish. The round soundhole has an abalone rosette. It has a satin-finish mahogany neck with a 25" scale, 21-fret rosewood fingerboard with small white dot position markers. Components include a plastic saddle in a rosewood bridge, Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez die-cast tuning machines with half moon buttons. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ-SP1 preamp with onboard tuner powered by a 9V battery and ¼" stereo output jack.

For 2019 the top, back and sides were changed from mahogany to sapele; the rosewood fretboard and bridge were replaced with laurel, walnut or balsamo wood; and the mahogany neck was replaced with nyatoh. For 2020 the model was discontinued outside of Japan and only the walnut fretboard was continued.

The AEG10LⅡ is a left-handed version. The AEG10NⅡ is a similar model with a slotted headstock and nylon strings. The AEG12Ⅱ is a related model with a mahogany or sapele top and different fretboard inlays.

The AEG10Ⅱ was discontinued after 2020.

Specifications[]

Related content: AEG series |

Specifications for AEG10Ⅱ

Name: AEG10Ⅱ

Year(s) offered: 2013–2020

Sold in: Asia & Africa 2013–2019 / China 2013–2019 / Europe 2013–2019 / Japan / North & South America and Oceania 2013–2019 / USA 2013–2019

Made in: China

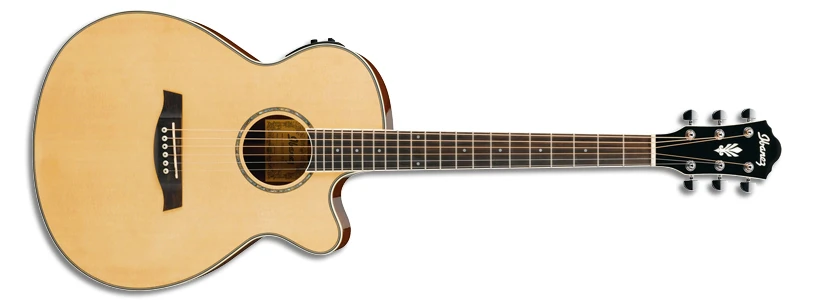

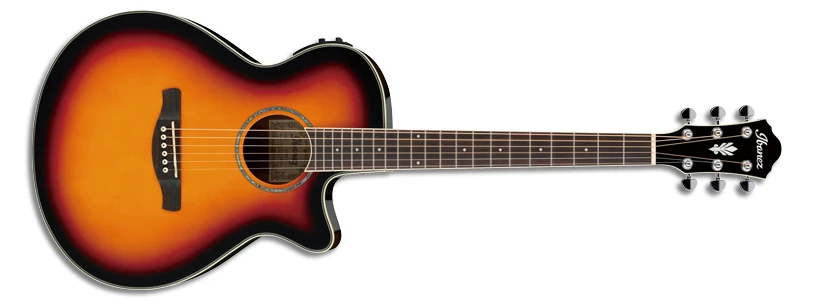

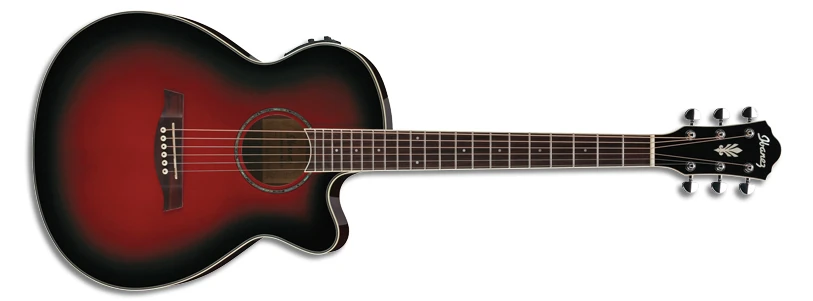

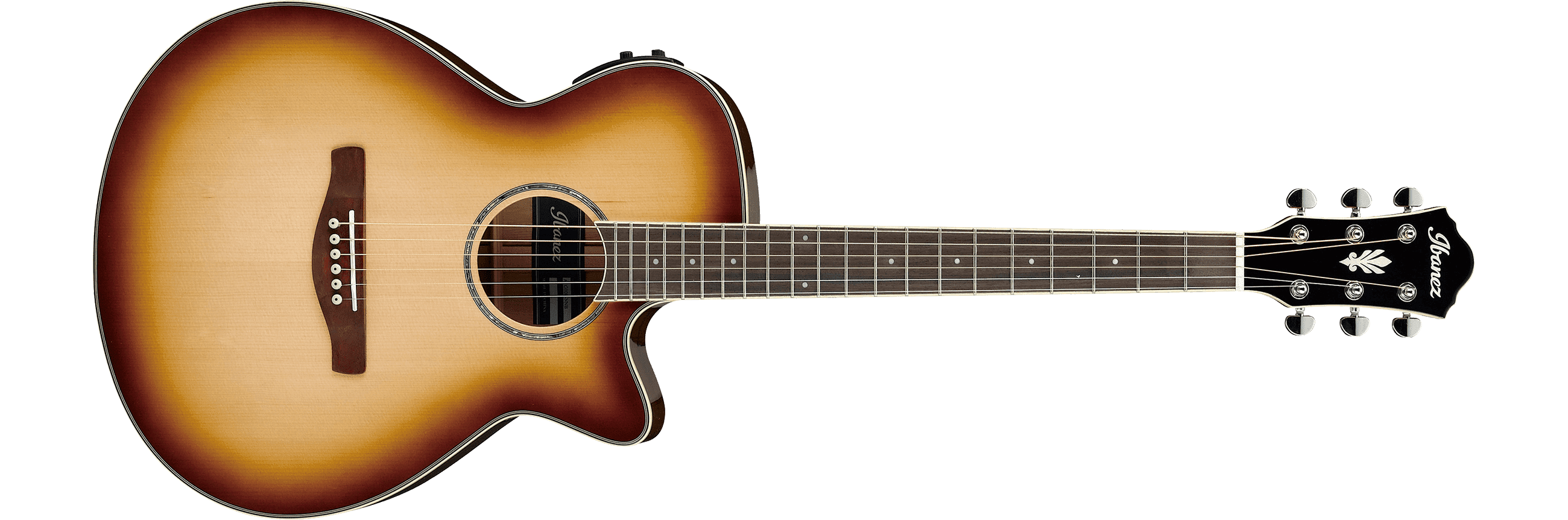

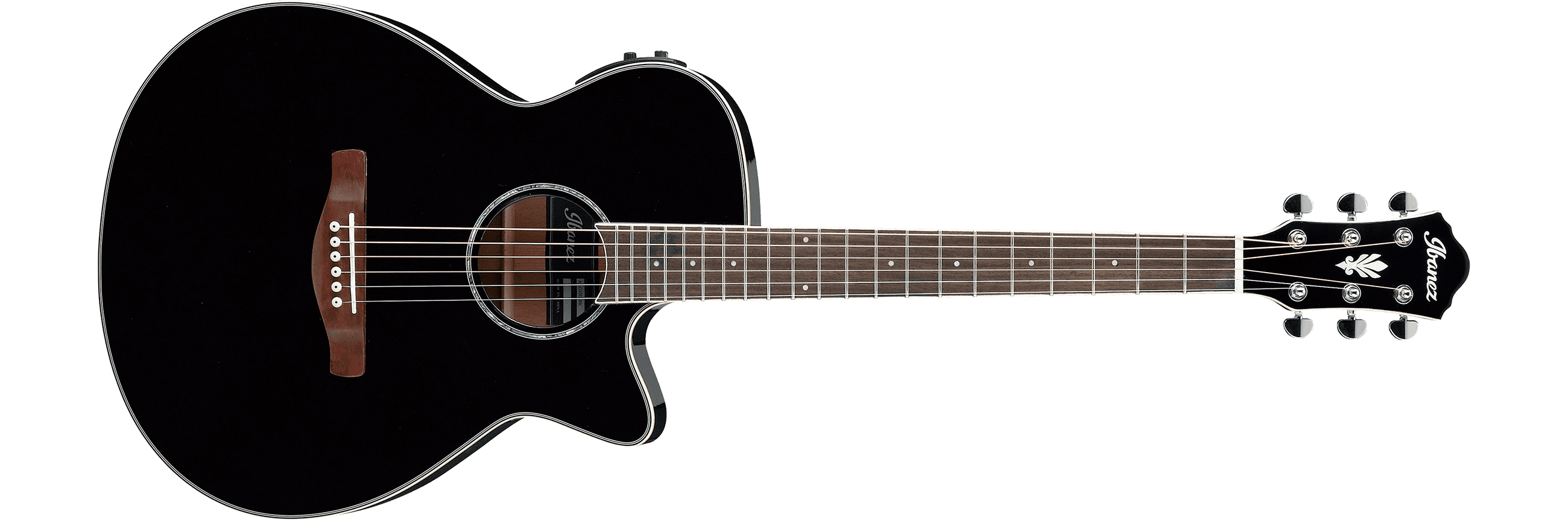

Finishes: Black High Gloss (BK) / Natural High Gloss (NT) 2013–2018 / Natural Browned Burst High Gloss (NNB) 2018–2020 / Transparent Blue Sunburst High Gloss (TBS) / Transparent Red Sunburst High Gloss (TRS) 2013–2018 / Vintage Sunburst High Gloss (VS) 2013–2017

Body

Body type:
Acoustic

Body shape:
AEG thin grand concert body shape w/ soft Venetian cutaway

Dimensions:
  Length: 489mm/ 19¼"
  Width: 381mm/ 15"
  Depth: 86mm/ 3⅜"

Top:
  Material: Spruce (laminated)
  Bracing: X
  Finish: High gloss
  Binding: Ivory (plastic)

Back/sides:
  Material: 2013–2018: Mahogany (laminated)
                2019–2020: Sapele (laminated)
  Finish: High gloss

Soundhole shape:
Round

Soundhole rosette:
Abalone

Neck

Neck profile:
AEG

Neck material:
2013–2018: Mahogany
2019–2020: Nyatoh

Neck finish:
Satin

Scale length:
634mm/ 25"

Fingerboard:
2013–2018: Rosewood w/ white binding
2019: Laurel, walnut or balsamo wood w/ white binding
2020: Walnut

Inlays:
Small white dot

Frets:
21 / Large

Nut:
Plastic (43mm)

Machine heads:
Ibanez die-cast w/ half moon buttons

Electronics/ Components

Pickup:
Fishman Sonicore

Preamp:
Ibanez AEQ-SP1 w/ onboard tuner

Output jack(s):
¼" stereo

Battery:
9V

Bridge:
2013–2018: Rosewood
2019: Laurel, walnut or balsamo wood
2020: Walnut (11mm string spacing)

Bridge pins:
Ibanez Advantage (ivory w/ black dot)

Saddle:
Plastic

Hardware color:
Chrome

Strings (factory):
2013–2016: .012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
2017–2020: .012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
