2002 AEF1812 NT

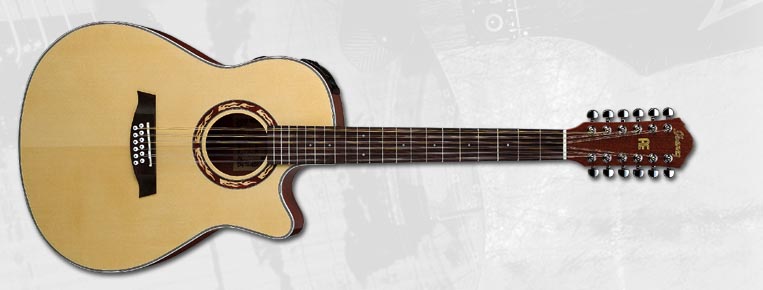

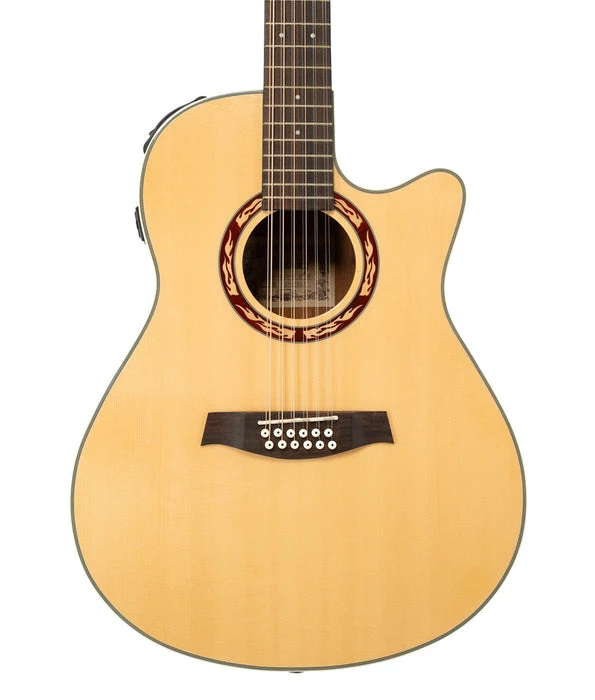

AEF1812 Natural (more images) Red copyright sprite

The AEF1812 is an AEF series 12-string acoustic/electric guitar model introduced by Ibanez for 2001. It was produced in China.

The AEF1812 features a Venetian cutaway body shape with a flamed maple top with standard X bracing on mahogany back and sides with a low gloss finish mated to a set-in mahogany neck with 21 medium frets, rosewood fingerboard with rounded edges, white dots position markers. The soundhole is round with a vintage-styled rosette and soundhole binding. Components include a compensated bone saddle in a scalloped rosewood ebony bridge with Ibanez Advantage pins, a synthetic bone nut, and chrome die-cast tuning machines.

Specifications[]

Related content: AEF series | Models-icon
Specifications for AEF1812
Name: AEF1812
Year(s) offered: 2001–2004
Sold in: USA
Made in: China
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
AEF body w/ Venetian cutaway
Dimensions:
  Length: 20"
  Width: 16.125"
  Depth: 4.94"
Top:
  Material: Flamed maple top
  Bracing: Standard X
  Finish: Low gloss
  Binding: white

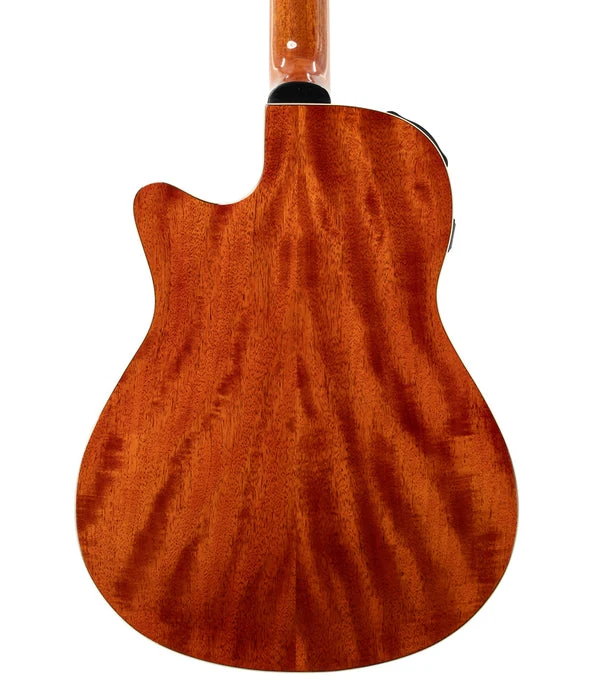

Back/sides:
  Material: Mahogany
  Finish: Low gloss
Soundhole shape:
Round
Soundhole rosette:
Vintage styled w/ soundhole binding
Neck
Neck profile:
Set-in
Neck material:
Mahogany
Scale length:
648mm/ 25½"
Fingerboard:
Rosewood (Radius 12.00") w/ White binding
Inlays:
White dot
Frets:
21 / medium (rounded edge treatment)
Nut:
Synthetic Bone (43mm)

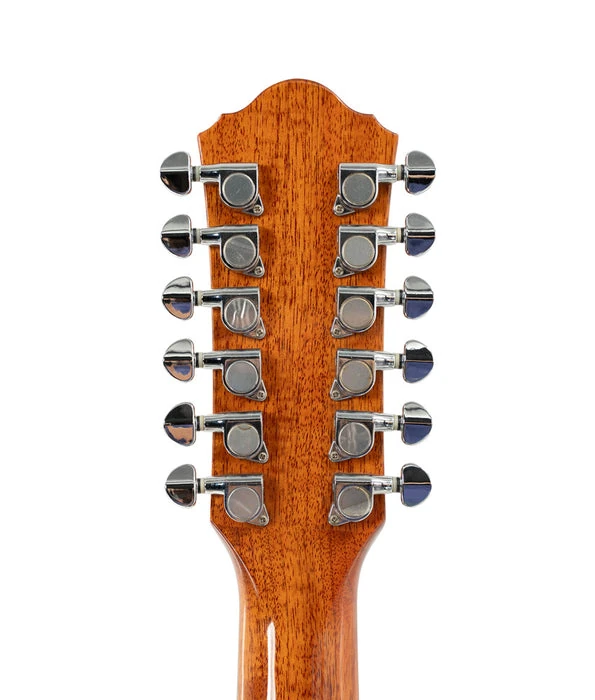

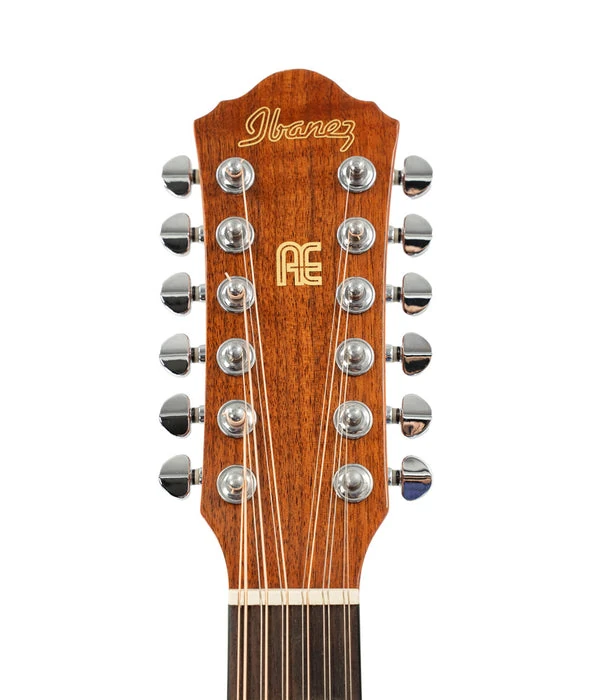

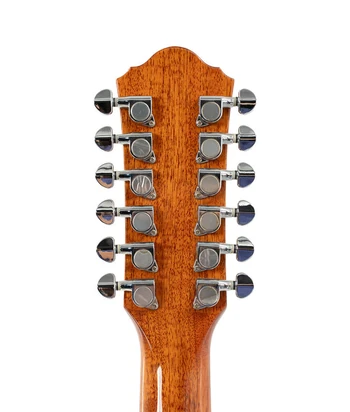

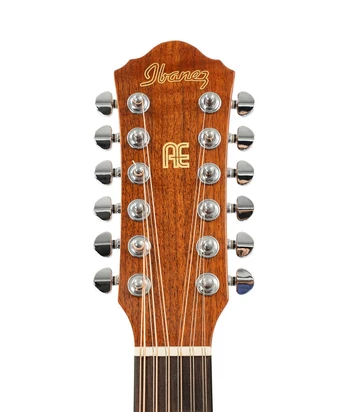

Machine heads:
Die-cast (chrome)
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez® SPT
Output jack(s):
Balanced XLR and 1/4"
Battery:
2032 3V lithium coin (2)
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage
Saddle:
4mm bone compensated
Hardware color:
Chrome
Strings (factory):
D'Addario EXP, 12-strings
