2023 AE300ZRJR NT

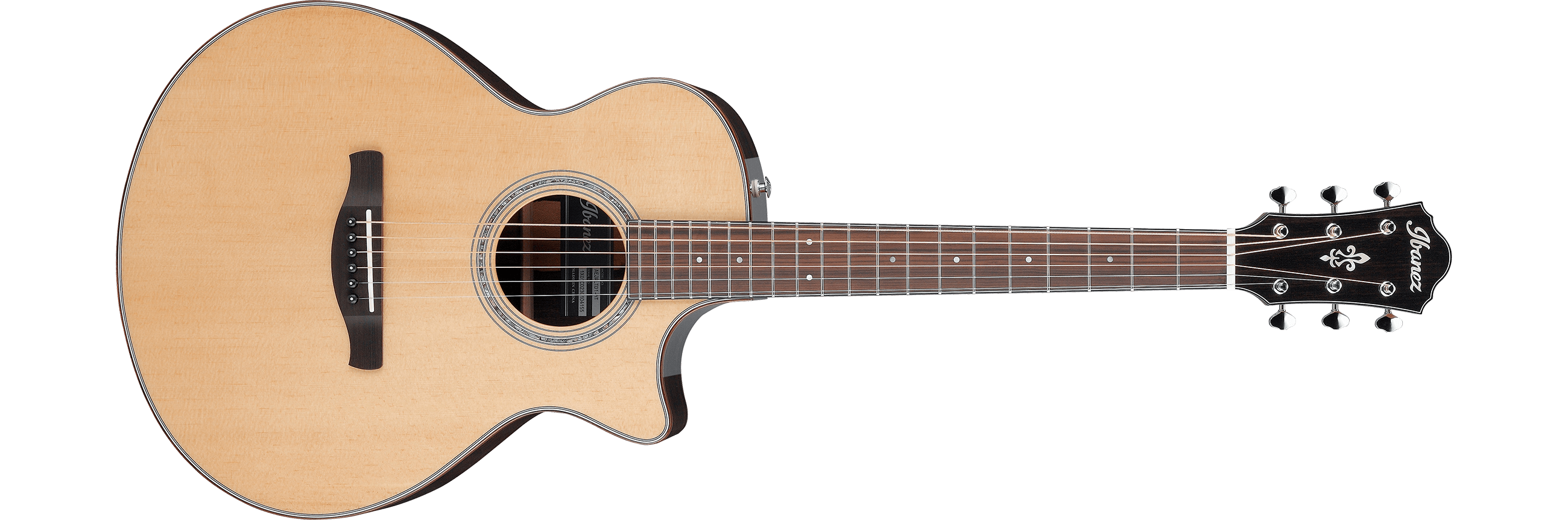

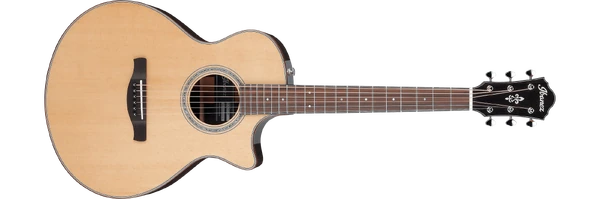

AE300ZRJR Natural (more images) Red copyright sprite

The AE300ZRJR is a short-scale AE series acoustic/electric guitar model introduced by Ibanez for 2023. It was produced in China.

The AE300ZRJR features a downsized AE Junior body with a Venetian cutaway shape constructed of a solid Sitka spruce top with scalloped cross-bracing on laminated ziricote sides and back with Tone Projection cross bracing and a gloss finish. The soundhole is round with an abalone and maple rosette. It has a satin-finished nyatoh neck with a 607mm (23⅞") scale and a 20-fret Macassar ebony fingerboard with white dot position markers. Components include a compensated bone saddle in a Macassar ebony bridge with Ibanez Advantage pins, a bone nut, and chrome open gear tuning machines. Electronics consist of a T-bar undersaddle pickup connected to an Ibanez Custom Electronics preamp mounted internally, powered by a pair of button cells, and feeding a ¼" endpin output.

The AE300FBJR is a related model with flamed blackheart back and sides. The AE300MWJR is a related model with a torrefied solid myrtlewood top and myrtlewood on back & sides.

The AE300ZRJR was a spot model which was produced for just a few months before being discontinued at the end of 2023.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE300ZRJR
Name: AE300ZRJR
Year(s) offered: 2023
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: China
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
AE Junior body w/ Venetian cutaway
Dimensions:
  Body length: 464mm/ 18¼"
  Width: 373mm/ 141116"
  Depth: 110mm/ 4516"
Top:
  Material: Solid Sitka spruce top
  Bracing: Scallop X
  Finish: High gloss
Back/sides:
  Material: Ziricote (laminated)
  Bracing: Tone Projection
Soundhole shape:
Round
Soundhole rosette:
Abalone & maple
Neck
Neck profile:
AE Junior
Neck material:
1-piece nyatoh
Neck finish:
Satin
Scale length:
607mm/ 23.9"
Fingerboard:
Macassar ebony
Inlays:
White dot
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
Open gear w/ butterbean knobs
Electronics/ Components
Pickup:
T-bar undersaddle
Preamp:
Ibanez AHA-1
Output jack(s):
¼" endpin
Battery:
CR2032 (2)
Bridge:
Macassar ebony (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins
Saddle:
Bone compensated
Hardware color:
Chrome
Strings (factory):
.011/.015/.022/.032/.042/.052 (D'Addario XTAPB1152)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

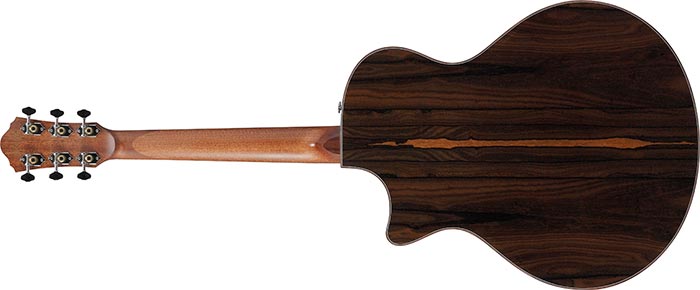

AE300ZRJR NT rear
Body (rear)
Ibanez AHA-1 preamp
AHA-1 preamp
Advantage™ bridge pins
Ibanez Advantage™ bridge pins

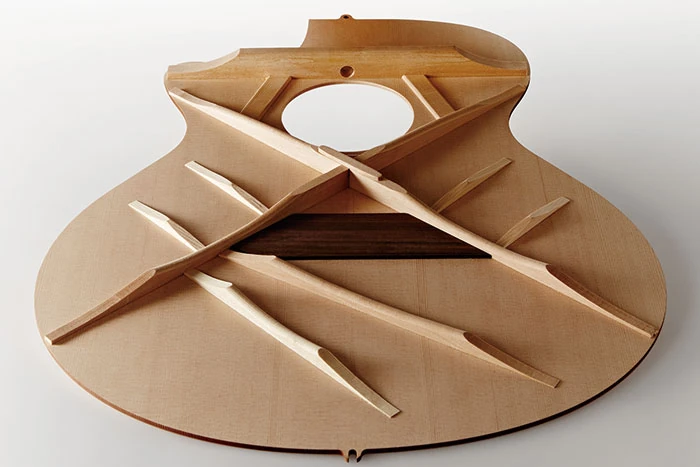

2023 scalloped-X-bracing
Scalloped X-bracing

Sources[]

  • AE300ZRJR product page, Ibanez North America, accessed October 2023 (dead link)
  • Ibanez AE300ZRJR-NT product listing, Musik 50 Produktiv (German retailer), archived January 2024
  • AE300ZRJR-NT parts listing, Hoshino parts catalog, archived January 2024
