2022 AE295MYW LGS 1X 01

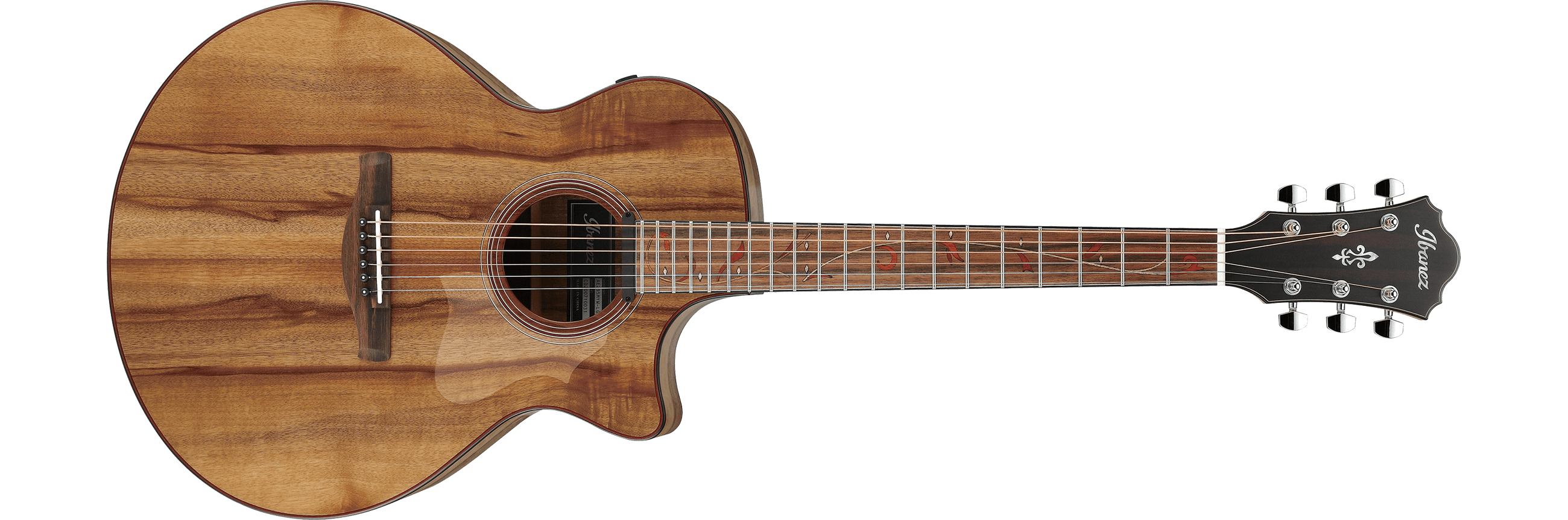

AE295MYW Natural Low Gloss (more images) Red copyright sprite

The AE295MYW is an AE series acoustic/electric guitar model introduced by Ibanez in late 2022. It was produced in China.

The AE295MYW features a Venetian cutaway body shape with a solid myrtlewood top with standard X-M bracing and myrtlewood back and sides with a low gloss finish and wooden purfling with black binding. The soundhole is round with a wooden rosette and binding. It has a maple Comfort Grip neck with a 20-fret Macassar ebony fingerboard with special wooden vine inlays and rounded edges. Components include a compensated bone saddle in a scalloped Macassar ebony bridge with Ibanez Advantage pins, a bone nut, and chrome die-cast tuning machines. Electronics consist of an Ibanez AP11 magnetic pickup mounted at the neck connected to an Ibanez Custom Electronics preamp, volume and tone controls and a ¼" endpin output.

The AE295LTD is a similar model with flamed okoume top, back and sides and a nyatoh neck. The AE295 is a related model with a plain okoume top, back and sides and a nyatoh neck with a katalox fretboard and bridge.

The AE295MYW was offered only in 2022.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE295MYW
Name: AE295MYW
Year(s) offered: 2022
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: China
Finishes: Natural Low Gloss (LGS)
Body
Body type:
Acoustic
Body shape:
AE body w/ Venetian cutaway
Dimensions:
  Body length: 508mm/ 20"
  Width: 410mm/ 16⅛"
  Depth: 117mm/ 4⅝"
Top:
  Material: Solid myrtlewood
  Bracing: Standard X-M
  Finish: Low gloss
  Binding: Wooden purfling and black binding
Back/sides:
  Material: Myrtlewood
  Finish: Low gloss
Soundhole shape:
Round
Soundhole rosette:
Wooden w/ soundhole binding
Neck
Neck profile:
AE Comfort Grip
Neck material:
1-piece maple
Scale length:
651mm/ 25⅝"
Fingerboard:
Macassar ebony w/ rounded edge
Inlays:
Wooden vine design
Frets:
20 / jumbo nickel silver
Nut:
Bone (44mm)
Machine heads:
Ibanez die-cast (18:1 gear ratio)
Strings (factory):
.011/.015/.022/.032/.042/.052 (D'Addario XTAPB1152)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
Ibanez AP11 magnetic
Preamp:
Ibanez Custom Electronics w/ volume & tone control
Output jack(s):
¼" endpin
Battery:
9V
Bridge:
Macassar ebony scalloped w/ maple inlay
Bridge pins:
Ibanez Advantage bridge pins
Saddle:
4mm bone compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Clear

Images[]

Additional details

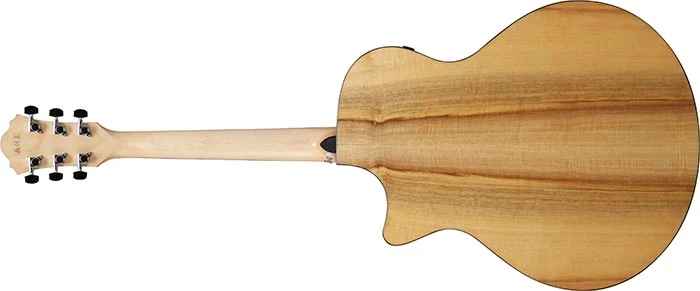

2022 AE295MYW LGS 1X 01 back
Body back

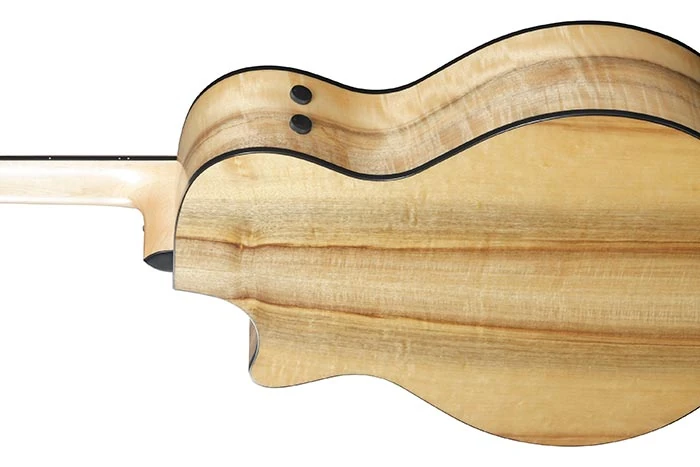

2022 AE295MYW LGS 1X 01 back-side
Back & top side
Controls VT AdvancedAcoustic
Controls layout
