2020 AE295 LGS 1X 01

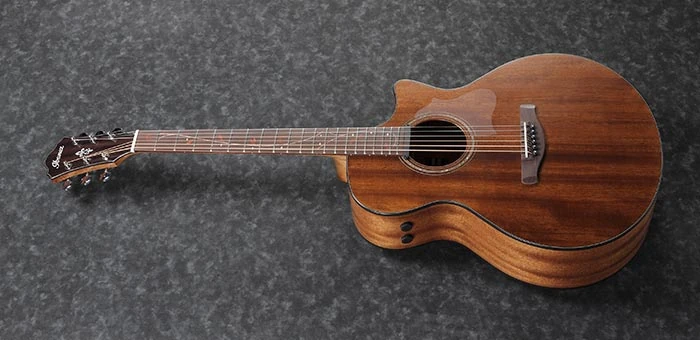

AE295 Natural Low Gloss (more images) Red copyright sprite

The AE295 is an AE series acoustic/electric guitar model introduced by Ibanez for 2020. It was produced in China.

The AE295 features a Venetian cutaway body shape with a solid okoume top with standard X-M bracing and okoume back and sides with a low gloss finish. The soundhole is round with an abalone and wooden rosette and a clear pickguard. It has a nyatoh Comfort Grip neck with a 20-fret katalox fingerboard with special wooden vine position markers and rounded edges. Components include a compensated bone saddle in a scalloped katalox bridge with Ibanez Advantage pins, a bone nut, and chrome die-cast tuning machines. Electronics consist of an Ibanez AP11 magnetic pickup mounted at the neck connected to an Ibanez Custom Electronics preamp, volume and tone controls and a ¼" endpin output.

For 2021 the body was very slightly enlarged. For 2023 the fretboard and bridge material was changed to pau ferro.

The AE295L is a left handed version. The AE2912 is a similar twelve string model. The AE295LTD is a related model with a flamed okoume top and Macassar ebony fretboard and bridge. The AE295MYW is a related model with a myrtlewood top, back and sides. The AE275 is a related model with a Sitka spruce top.

The AE295 was discontinued after 2023.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE295
Name: AE295
Year(s) offered: 2020–2023
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA 2020 / USA & Canada 2021–2023
Made in: China
Price: MSRP: US$899.99 (2022–2023)[1][2] • SMAP: US$599.99 (2022–2023)[1][2]
Finishes: Natural Low Gloss (LGS) / Weathered Black Open Pore (WK)
Body
Body type:
Acoustic
Body shape:
AE body w/ Venetian cutaway
Dimensions:
  Body length:
    2020: 508mm/ 20"
    2021–2023: 511mm/ 20⅛"
  Width:
    2020: 410mm/ 16⅛"
    2021–2023: 413mm/ 16¼"
  Depth:
    2020: 117mm/ 4⅝"
    2021–2023: 121mm/ 4¾"
Top:
  Material: Solid okoume
  Bracing: Standard X-M
  Finish: Low gloss
  Binding: Ivory plastic
Back/sides:
  Material: Okoume (laminated)
  Finish: Low gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone & wooden
Neck
Neck profile:
AE Comfort Grip
Neck material:
1-piece nyatoh
Scale length:
651mm/ 25⅝"
Fingerboard:
2020–2022: Katalox w/ rounded edge
2023: Pau ferro w/ rounded edge
Inlays:
Wooden vine design
Frets:
20 / jumbo nickel silver
Nut:
Bone (44mm)
Machine heads:
Ibanez die-cast (18:1 gear ratio)
Strings (factory):
.011/.015/.022/.032/.042/.052 (D'Addario XTAPB1152)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components/ case
Pickup:
Ibanez AP11 magnetic
Preamp:
Ibanez Custom Electronics w/ volume & tone control
Output jack(s):
¼" endpin
Battery:
2032 3V lithium coin (2)
Bridge:
2020–2022: Katalox scalloped
2023: Pau ferro scalloped
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dots)
Saddle:
4mm bone compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Transparent matte
Strap buttons:
Metal button
Knob style:
Black plastic
Recommended case:
AEL50C or FS40DA
Recommended gig bag:
IAB540 or IAB724

Images[]

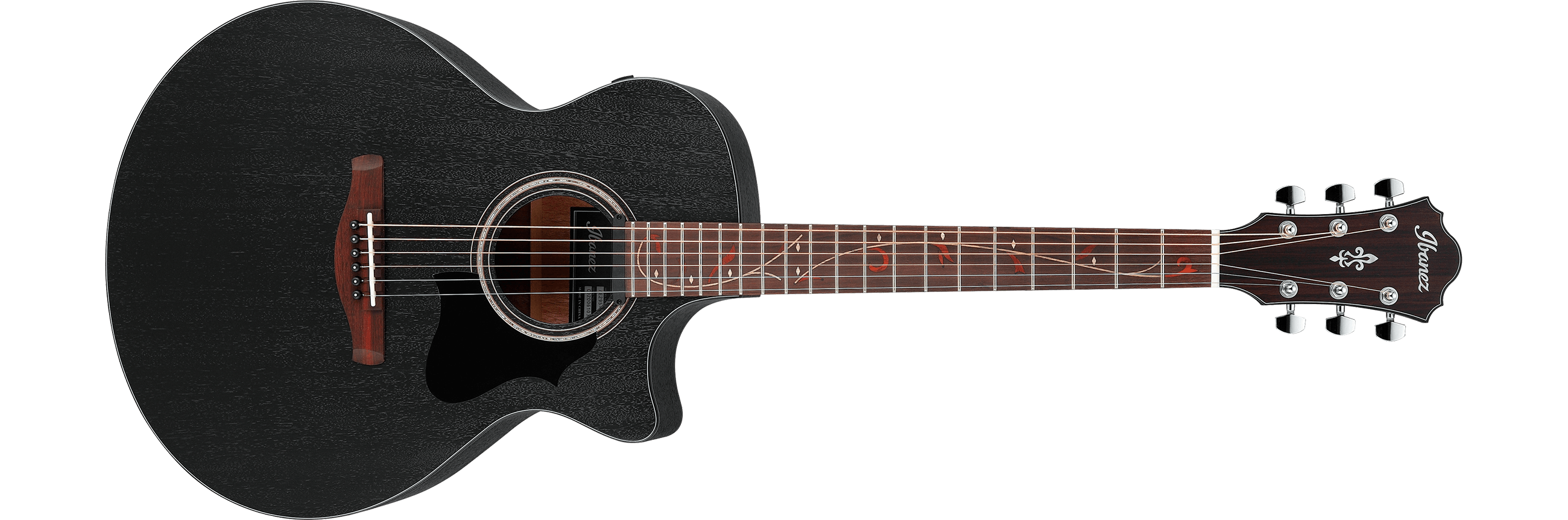

2020 AE295 WK 1X 01
2020 Ibanez AE295 Weathered Black Open Pore Red copyright sprite
Additional details

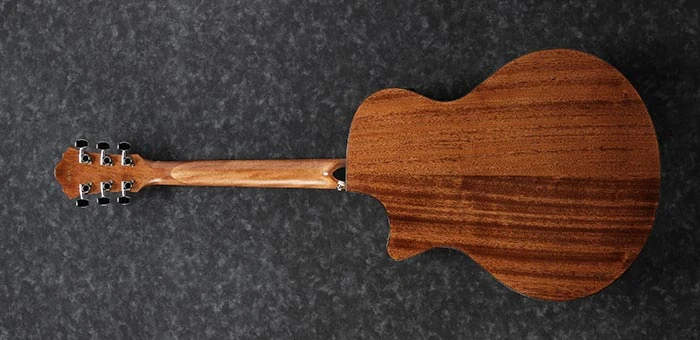

2023 AE295 LGS 1X 04 back
Back
2023 AE295 LGS 1X 04 front-3-4
Front ¾ view

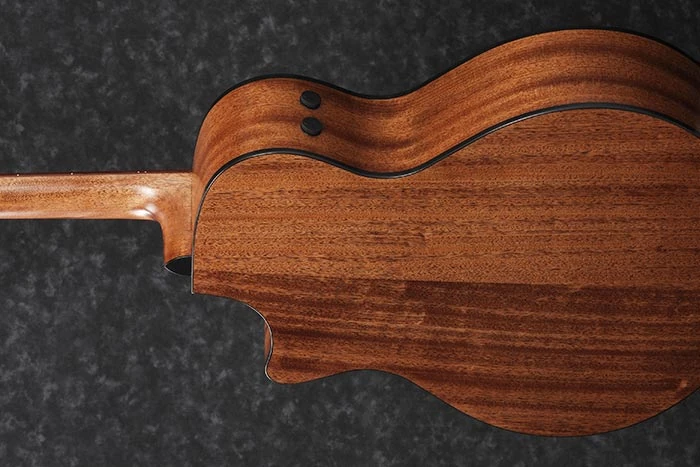

2023 AE295 LGS 1X 04 body-back
Back & top side

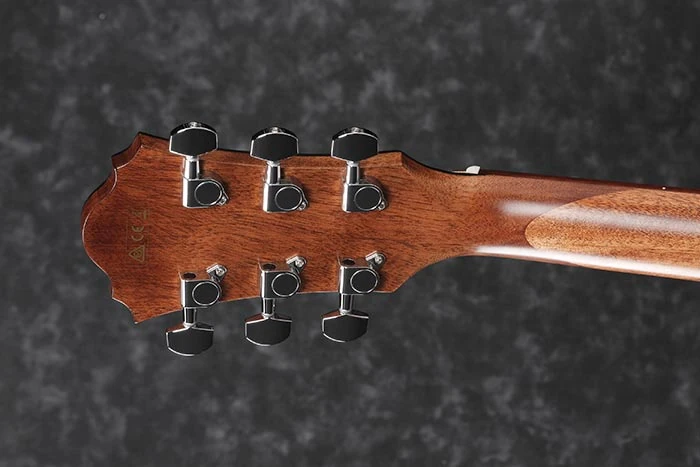

2023 AE295 LGS 1X 04 headstock-back
Headstock back & tuners
Controls VT AdvancedAcoustic
Volume & tone controls

Video[]

Ibanez_AE295_Acoustic_Guitar
Ibanez AE295 Acoustic Guitar


Sources[]

  • AE295-LGS (1X-01) parts list, Ibanez parts catalog, archived January 2026
  • AE295 product page, Ibanez Europe, archived January 2020
  • AE295 product page, Ibanez Asia & Africa, archived January 2021
  • AE295 product page, Ibanez Americas & Oceania, archived June 2022
  • AE295 product page, Ibanez China, archived January 2023
  • AE295 product page, Ibanez USA & Canada, archived January 2023
