2020 AE2912 LGS 1X 01
AE2912 Natural Low Gloss Red copyright sprite

The AE2912 is an AE series twelve string acoustic/electric guitar model introduced by Ibanez for 2020. It is produced in China.

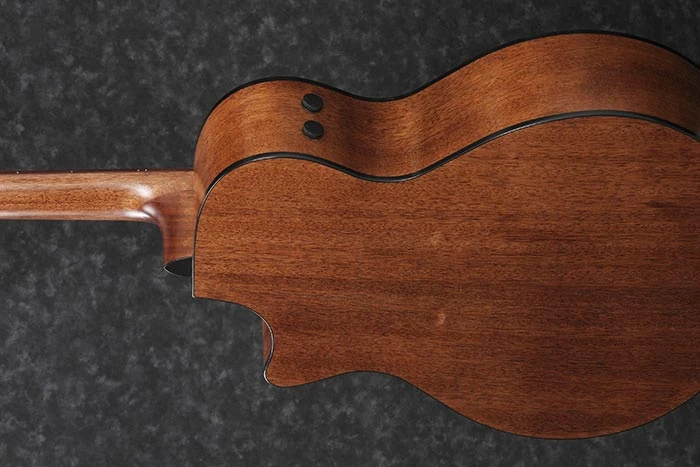

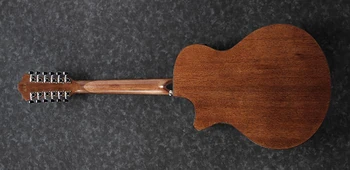

The AE2912 features a Venetian cutaway body shape with a solid okoume top with standar X-M bracing and okoume back and sides with a low gloss finish. The soundhole is round with an abalone and wooden rosette and a clear pickguard. It has a nyatoh Comfort Grip neck with a 20-fret katalox fingerboard with special wooden vine position markers and rounded edges. Components include a compensated bone saddle in a katalox bridge with Ibanez Advantage pins, a bone nut, and chrome die-cast tuning machines. Electronics consist of a T-bar undersaddle pickup and an Ibanez AP11 magnetic pickup mounted at the neck connected to an Ibanez Custom Electronics preamp, volume and tone controls and a ¼" endpin output.

The AE295 is a similar six string model.

Specifications

Specifications for AE2912
Years: 2020
Areas: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: China
Finishes: Natural Low Gloss (LGS)
Body
Body type:
Acoustic
Body shape:
AE body w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 410mm/ 16⅛"
  Depth: 117mm/ 4⅝"
Top:

  Material: Solid okoume
  Bracing: Standard X-M
  Finish: Low gloss
  Binding: Ivory plastic

Back/sides:

  Material: Okoume
  Finish: Low gloss

Soundhole shape:
Round
Soundhole rosette:
Abalone & wooden
Neck
Neck profile:
Comfort Grip
Neck material:
1-piece nyatoh
Scale length:
651mm/ 25⅝"
Fingerboard:
Katalox
Inlays:
Wooden vine design
Frets:
20 / jumbo (rounded edge treatment)
Nut:
Bone (44mm)

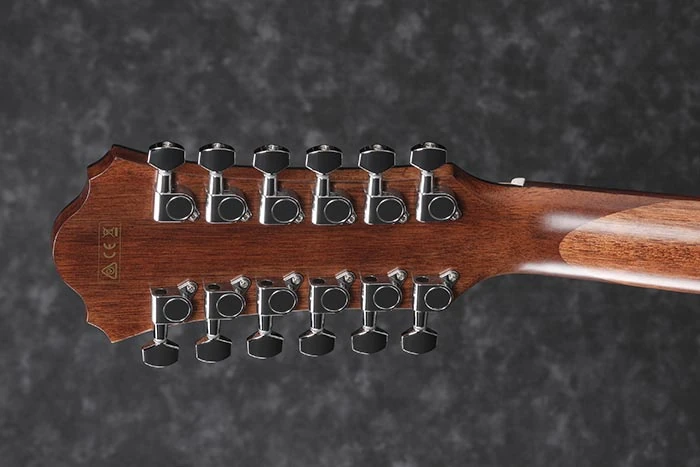

Machine heads:
Die-cast
Electronics/ Components
Pickup:
T-bar undersaddle
Ibanez AP11 magnetic
Preamp:

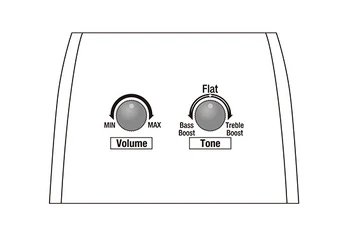

Ibanez Custom Electronics w/ volume & tone control
Output jack(s):
1/4" endpin
Battery:
2032 3V lithium coin (2)
Bridge:
Katalox scalloped (11mm string spacing)
Bridge pins:
Ibanez Advantage
Saddle:
4mm bone/ compensated
Hardware color:
Chrome
Pickguard:
Clear
Strings (factory):
.010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027 (D'Addario XTAPB1047-12)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
