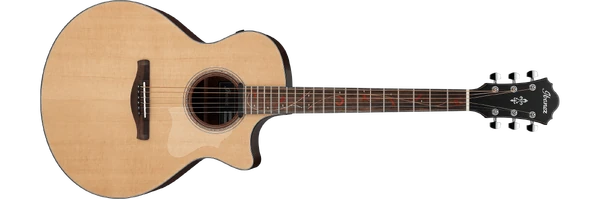

2022 AE275SPM NT 1X 01
AE275SPM Natural High Gloss (more images) Red copyright sprite

The AE275SPM is an AE series acoustic/electric guitar model introduced by Ibanez in late 2022. It is produced in China.

The AE275SPM features a Venetian cutaway body shape constructed of a solid Sitka spruce top with standard X-M bracing on laminated sapele pommele sides and back with a low gloss finish. The soundhole is round with an abalone and wooden rosette and a clear pickguard. It has a nyatoh Comfort Grip neck with a 20-fret Macassar ebony fingerboard with special wooden vine position markers and rounded edges. Components include a compensated bone saddle in a Macassar ebony bridge with Ibanez Advantage pins, a bone nut, and chrome die-cast tuning machines. Electronics consist of a T-bar undersaddle pickup and an Ibanez AP11 magnetic pickup mounted at the neck connected to an Ibanez Custom Electronics preamp, volume and tone controls and a ¼" endpin output.

The AE275 is a similar model with okoume back and sides and katalox fretboard and bridge.

The AE275SPM was offered only in 2022.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE275SPM
Name: AE275SPM
Year(s) offered: 2022
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
AE body w/ Venetian cutaway
Dimensions:
  Body length: 511mm/ 20⅛"
  Width: 413mm/ 16¼"
  Depth: 121mm/ 4¾"
Top:
  Material: Solid Sitka spruce
  Bracing: Standard X-M
  Finish: High gloss
  Binding: Black & white multi
Back/sides:
  Material: Sapele pommele (laminated)
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone & wooden
Neck
Neck profile:
AE Comfort Grip
Neck material:
1-piece nyatoh
Scale length:
651mm/ 25⅝"
Fingerboard:
Macassar ebony w/ rounded edge
Inlays:
Wooden vine design
Frets:
20 / jumbo nickel silver
Nut:
Bone (44mm)
Machine heads:
Die-cast
Strings (factory):
.011/.015/.022/.032/.042/.052 (D'Addario XTAPB1152)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
T-bar undersaddle &
Ibanez AP11 magnetic
Preamp:
Ibanez Custom Electronics w/ volume & tone control
Output jack(s):
¼" endpin
Battery:
2032 3V lithium coin (2)
Bridge:
Macassar ebony scalloped
Bridge pins:
Ibanez Advantage bridge pins
Saddle:
4mm bone compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Clear

Images[]

Additional details

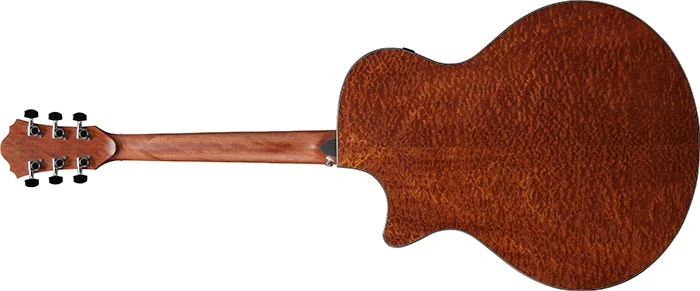

2022 AE275SPM NT 1X 01 back
Back

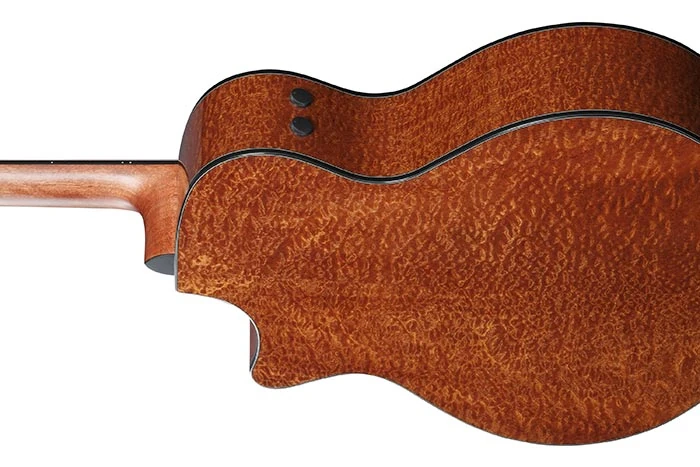

2022 AE275SPM NT 1X 01 back-side
Back & top side with controls

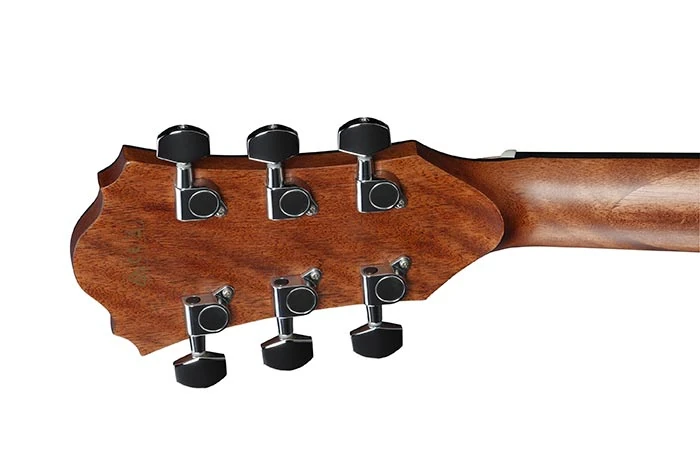

2022 AE275SPM NT 1X 01 headstock-rear
Headstock rear w/ scarf joint
2022 AE X-M bracing
X-M bracing

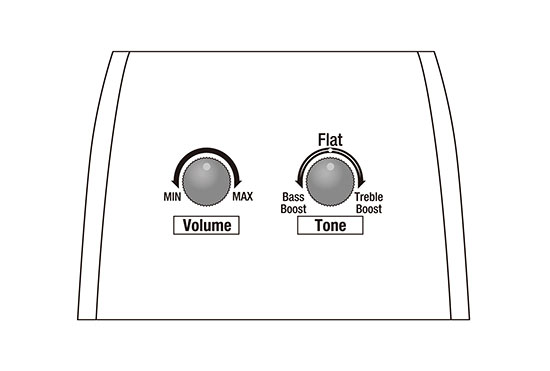

Controls VT AdvancedAcoustic
Controls layout
