2020 AE205JRB OPN 1X 01

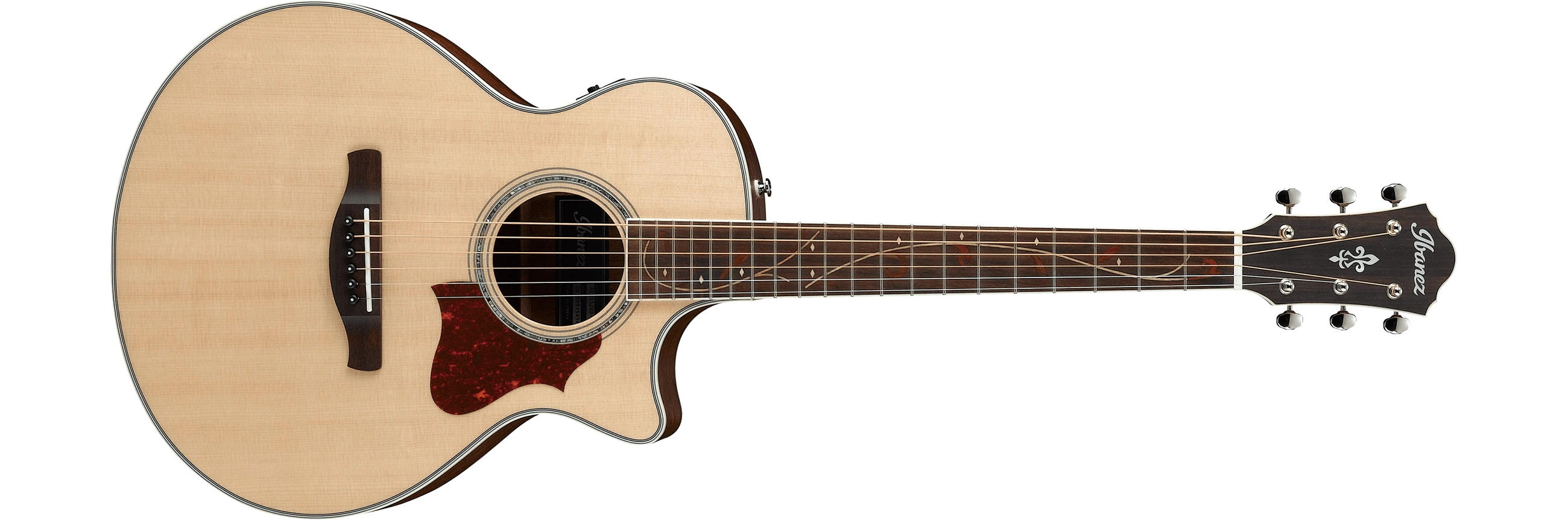

AE205JRB Open Pore Natural Red copyright sprite

The AE205JRB is a short-scale AE series acoustic/electric guitar model introduced by Ibanez in late 2020. It was produced in China.

The AE205JRB features a downsized body with a Venetian cutaway shape with a laminated Sitka spruce top with scalloped cross-bracing and mahogany back (with Tone Projection cross bracing) and sides with a gloss finish. The soundhole is round with an abalone and maple rosette. It has a satin-finished mahogany neck with a 607mm (23⅞") scale and a 20-fret ovangkol fingerboard with special mother of pearl position markers. Components include a compensated bone saddle in an ovangkol bridge with Ibanez Advantage pins, a bone nut, a tortoise pickguard and chrome open gear tuning machines. Electronics consist of a T-bar undersaddle pickup connected to an Ibanez Custom Electronics preamp mounted internally with a ¼" endpin output.

For 2019 the back and sides were changed from mahogany to okoume, the neck from mahogany to nyatoh and the fretboard and bridge from ovangkol to katalox.

The AE205JR is a similar model with different electronics.

The AE205JRB was discontinued after 2022.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE205JRB
Name: AE205JRB
Year(s) offered: 2020–2022
Sold in: China
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
AE Junior body w/ Venetian cutaway
Dimensions:
  Body length: 464mm/ 18¼"
  Width: 375mm/ 14¾"
  Depth: 111mm/ 4⅜"
Top:
  Material: Sitka spruce (laminated)
  Bracing: Scallop X
  Finish: Open Pore
  Binding: Ivory plastic
Back/sides:
  Material: Okuome (laminated)
  Finish: Open Pore
Soundhole shape:
Round
Soundhole rosette:
Abalone & maple
Neck
Neck profile:
AE Junior
Neck material:
1-piece nyatoh
Neck finish:
Satin
Scale length:
607mm/ 23.9"
Fingerboard:
Katalox
Inlays:
Wooden vine design
Frets:
20
Nut:
Bone (43mm)
Machine heads:
Ibanez open gear w/ butterbean knobs
Electronics/ Components
Pickup:
T-bar II undersaddle
Preamp:
Ibanez AEQ-TTS
Output jack(s):
¼" endpin
Bridge:
Katalox (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Tortoise
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP16)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
AEQ TTS preamp diagram
AEQ-TTS preamp controls
AEQ-TTS preamp
AEQ-TTS preamp
