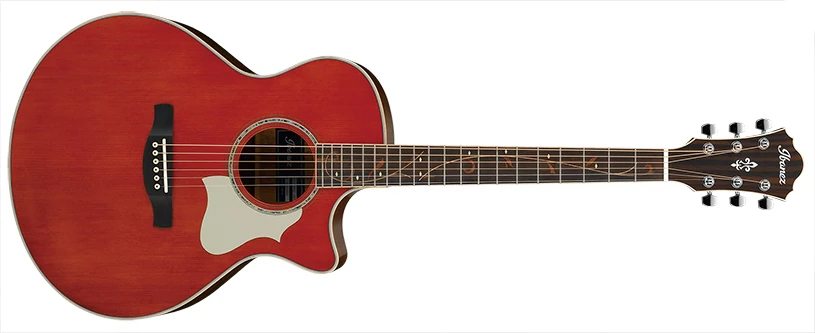

The AE205A is an AE series acoustic/electric guitar model introduced by Ibanez in 2017. It is a spot model which was produced in China.

The AE205A features a Venetian cutaway body shape with a solid Sitka spruce top with scalloped cross-bracing and mahogany back (with Tone Projection cross bracing) and sides with a gloss finish. The soundhole is round with an abalone and maple rosette and an ivory pickguard. It has a satin-finished mahogany neck with a 20-fret rosewood fingerboard with special wooden vine inlays. Components include a compensated bone saddle in a rosewood bridge with ivory Ibanez Advantage pins, a bone nut, and chrome tuning machines. Electronics consist of a T-bar undersaddle pickup connected to an Ibanez Custom Electronics preamp mounted internally with a ¼" endpin output.

The AE205 and AE205J are similar models with a red tortoise pickguard.

The AE205A was discontinued after 2017.

Specifications

Specifications for AE205A
Years: 2017
Made in: China
Finishes: Vintage Brown Flat (VBF)
Body
Body type:
Acoustic
Body shape:
AE body w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 410mm/ 16⅛"
  Depth: 114mm/ 4½"
Top:

  Material: Solid Sitka spruce
  Bracing: Scallop X
  Finish: Gloss
  Binding: Ivory plastic

Back/sides:

  Material: Mahogany
  Finish: Gloss

Soundhole shape:
Round
Soundhole rosette:
Abalone & maple
Neck
Neck profile:
AE
Neck material:
Mahogany
Neck finish:
Satin
Scale length:
648mm/ 25½"
Fingerboard:
Rosewood
Inlays:
Wooden vine design
Frets:
20
Nut:
Bone (44mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
T-bar undersaddle
Preamp:
Ibanez AHA-1
Output jack(s):
1/4" endpin
Battery:
2032 3V lithium coin (2)
Bridge:
Rosewood
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
4mm bone (compensated)
Hardware color:
Chrome
Pickguard:
Ivory
Strings (factory):
.012–.053 D'Addario EXP16
