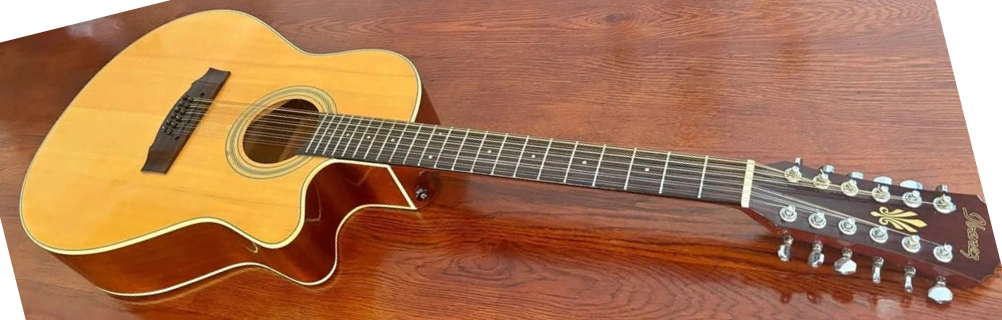

1995 AE2012-NT
AE2012 Natural (more images) Red copyright sprite

The AE2012 (also referred to as AE20-12) is a 12 string AE series acoustic/ electric guitar model with strings introduced by Ibanez for 1995. It was produced in South Korea.

The AE2012 features a AE shaped body with a soft venetian cutaway. The top is spruce with white and black binding on nato back and sides. The round soundhole has a black and white multi purfling rosette. It has a satin-finish mahogany neck with a 22-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a rosewood bridge with black pins, a black compensated saddle a plastic nut, and chrome die-cast tuning machines. Electronics consist of an AGA 100 piezo pickup with an IBZ on-board AEQ-IV 4-band EQ preamp with anti-feedback system.

The AE20 is a similar six-string model.

The AE2012 was discontinued after 1995.


Specifications[]

Related content: AE series | Models-icon
Specifications for AE2012 / AE20-12
Name: AE2012 / AE20-12
Year(s) offered: 1995
Sold in: Europe
Made in: South Korea
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
AE shape w/ soft Veneian cutaway
Dimensions:
  Body length: 492mm/ 19⅜"
  Width: 381mm/ 15"
  Depth: 95mm/ 3¾"
Top:
  Material: Spruce
  Finish: matte
  Binding: black and white
Back/sides:
  Material: nato
Soundhole shape:
Round
Soundhole rosette:
Black and white multi purfling
Neck
Neck profile:
AE
Neck material:
1-piece mahogany
Scale length:
650mm/ 25.6"
Fingerboard:
Rosewood
Inlays:
pearl dots
Frets:
22 / regular
Nut:
Plastic (41mm)
Machine heads:
Die-cast (chrome)
Electronics/ Components
Pickup:
A.G.A.100 piezo
Preamp:
IBZ AEQ-IV on-board
Output jack(s):
1/4" endpin
Bridge:
rosewood (11mm string spacing)
Bridge pins:
black w/ white dots
Saddle:
compensated (black)
Hardware color:
chrome
Strings (factory):
steel
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
1995 AE2012-NT front
Front of body

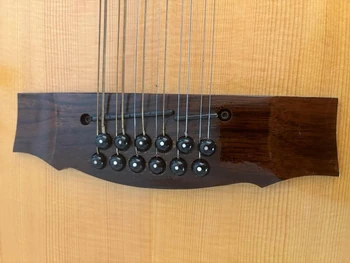

1995 AE2012-NT bridge
Bridge
12-string-guitar-tuning-standard
12-string guitar (standard tuning)
