2023 AE200JR DBF

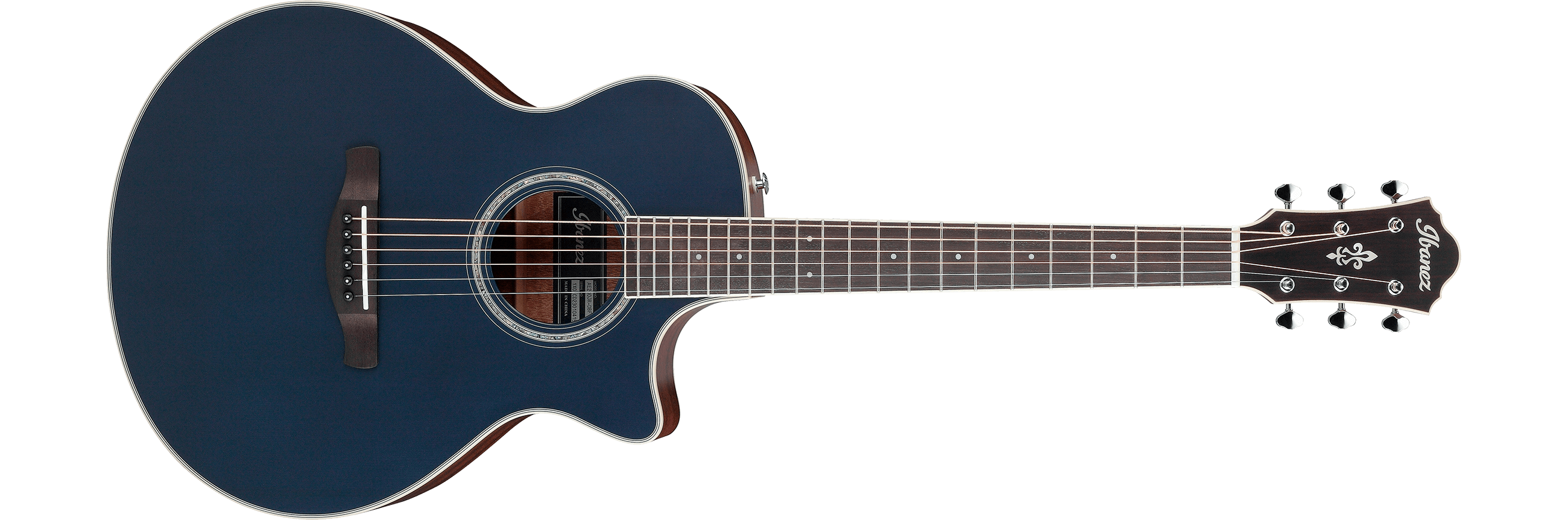

AE200JR Dark Tide Blue Flat (more images) Red copyright sprite

The AE200JR is a short-scale AE series acoustic/electric guitar model introduced by Ibanez for 2023. It is produced in China.

The AE200JR features a downsized AE Junior body with a Venetian cutaway constructed of a solid Sitka spruce top with scalloped cross-bracing on okume sides and back with Tone Projection cross bracing. It has a matte finish. The soundhole is round with an abalone and maple rosette. It has a satin-finished nyatoh neck with a 607mm (23⅞") scale and a 20-fret ovangkol fingerboard with white dot position markers. Components include a compensated plastic saddle in an ovangkol bridge with Ibanez Advantage pins, a plastic nut, and chrome open gear tuning machines. Electronics consist of a T-bar undersaddle pickup connected to an Ibanez AHA-1 preamp mounted internally with a ¼" endpin output.

The AE205JR is a related model with a special fingerboard inlay and mahogany on back and sides.

Specifications[]

Related content: AE series | Models-icon
Specifications for AE200JR
Name: AE200JR
Year(s) offered: 2023–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China
Finishes: Dark Tide Blue Flat (DBF)
Body
Body type:
Acoustic
Body shape:
AE Junior body w/ Venetian cutaway
Dimensions:
  Body length: 467mm/ 18⅜"
  Width: 375mm/ 14¾"
  Depth: 111mm/ 4⅜"
Top:
  Material: Solid Sitka spruce
  Bracing: Original Scalloped X
  Finish: Matte
  Binding: Ivory plastic
Back/sides:
  Material: Okuome (laminated)
  Bracing: Tone Projection
Soundhole shape:
Round
Soundhole rosette:
Abalone & maple
Neck
Neck profile:
AE Junior
Neck material:
1-piece nyatoh
Neck finish:
Satin
Scale length:
607mm/ 23.9"
Fingerboard:
Ovangkol
Inlays:
White dot
Frets:
20
Nut:
Plastic (43mm)
Machine heads:
Open gear w/ butterbean knobs
Electronics/ Components
Pickup:
T-bar undersaddle
Preamp:
Ibanez AHA-1
Output jack(s):
¼" endpin
Battery:
2032 3V lithium coin (2)
Bridge:
Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins
Saddle:
Plastic compensated
Hardware color:
Chrome
Strings (factory):
.011/.015/.022/.032/.042/.052 (D'Addario XTAPB1152)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

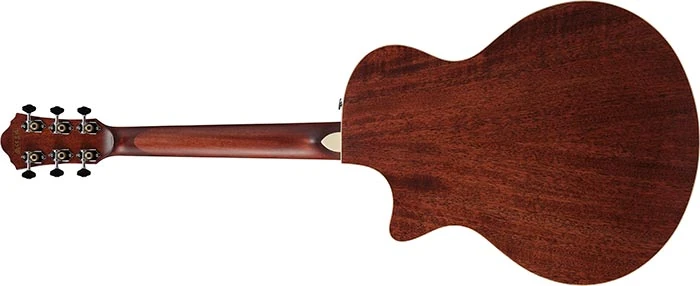

AE200JR DBF rear
2023 Ibanez AE200JR-DBF ( Rear: Okume body with a 1-piece nyatoh AE Junior neck and chrome open gear tuners ) Red copyright sprite
Additional details

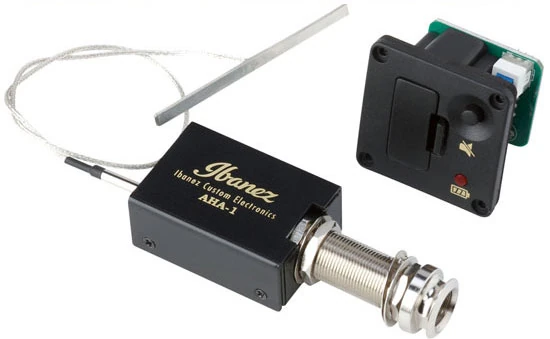

Ibanez --AHA-1--
Preamp Ibanez AHA-1

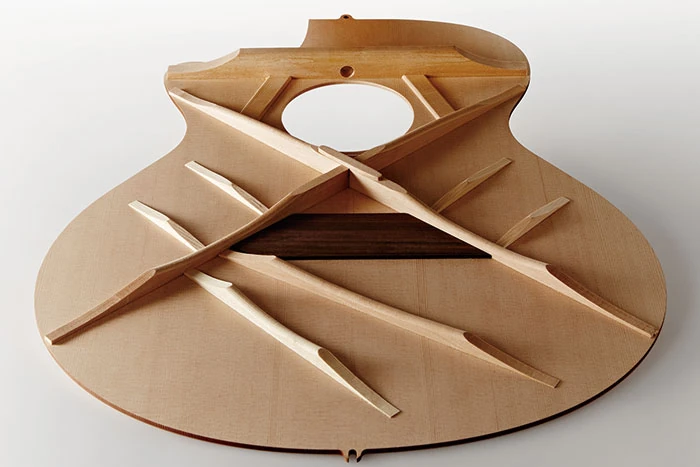

Scalloped X bracing
Scalloped X bracing

Sources[]

  • AE200JR product page, Ibanez Europe, accessed September 2023 (dead link)
  • AE200JR product page, Ibanez Asia & Africa, January 2024
