1989 AE200 DV

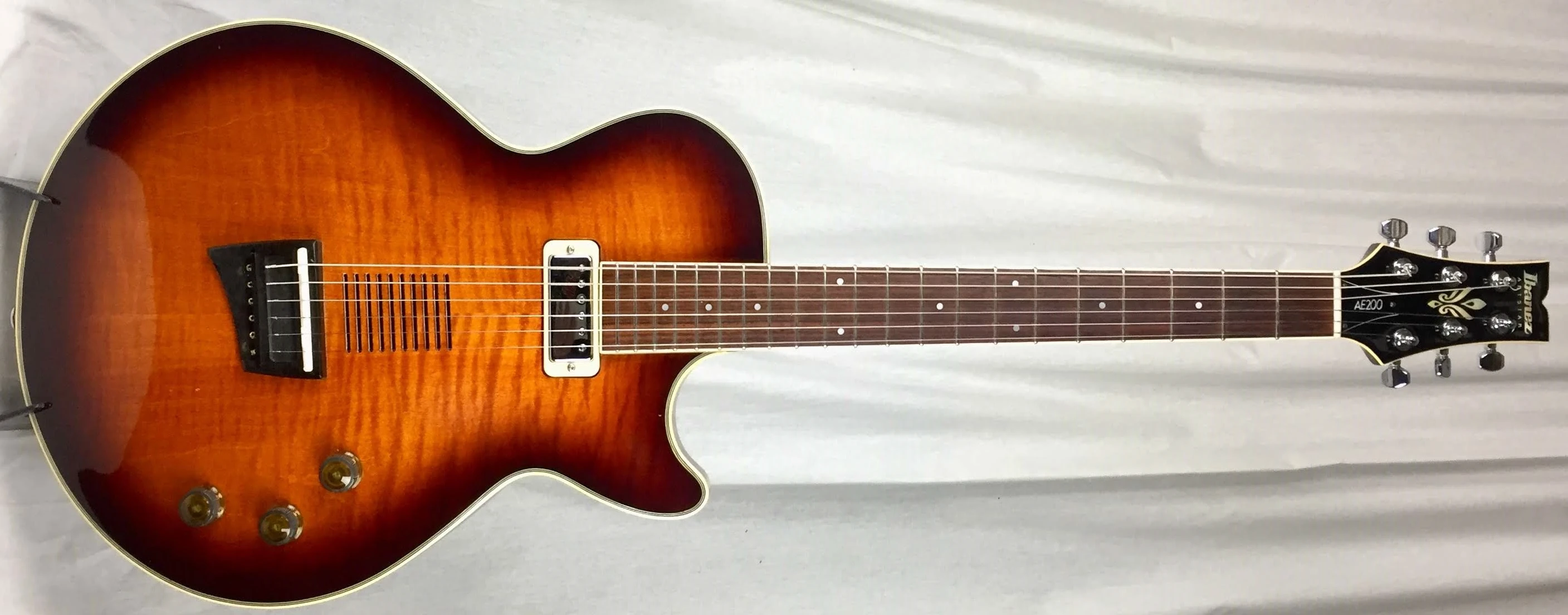

AE200 Dark Violin (more images) Red copyright sprite

The AE200 is a hollow body electro-acoustic guitar model introduced by Ibanez for 1988. It was made in Japan by Terada as part of the Artstar series.

The AE200 features a semi-hollow, single cutaway body design with an arched, flamed maple top with slit soundholes and ivory multi-binding on flamed maple back and sides with a maple center block mated to a set-in mahogany and maple neck with a 21-fret rosewood fingerboard with ivory binding and small pearl dot position markers. Components include a single Ibanez Mini Humbucker pickup with gold cover mounted in an ivory plastic pickup ring, a custom bridge with integrated tailpiece and piezo pickups, a bone nut, Sure Grip II knobs, and Gotoh tuning machines.

The AE200 was discontinued after 1989.

Specifications

Specifications for AE200
Year(s) produced: 1988–1989
Sold in: Europe / Japan / USA
Made in: Japan
Finish(es): Dark Violin (DV) / Natural (NT) / White (WH) 1989
Body
Body type:
Hollow body
Dimensions:
  Depth: 45mm / 1¾"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
AE bridge/ tailpiece w/ piezo pickups
Knob style:
Sure Grip II (gold)
Hardware color:
Chrome
Neck
Neck type:
Artstar AE
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Small pearl dot
Frets:
21 / medium
Nut:
Bone (43mm)
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
H + piezo
Neck pickup:
Ibanez Mini Humbucker (H)
Controls:
2 volume / 1 tone
Output jack:
¼" stereo box (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

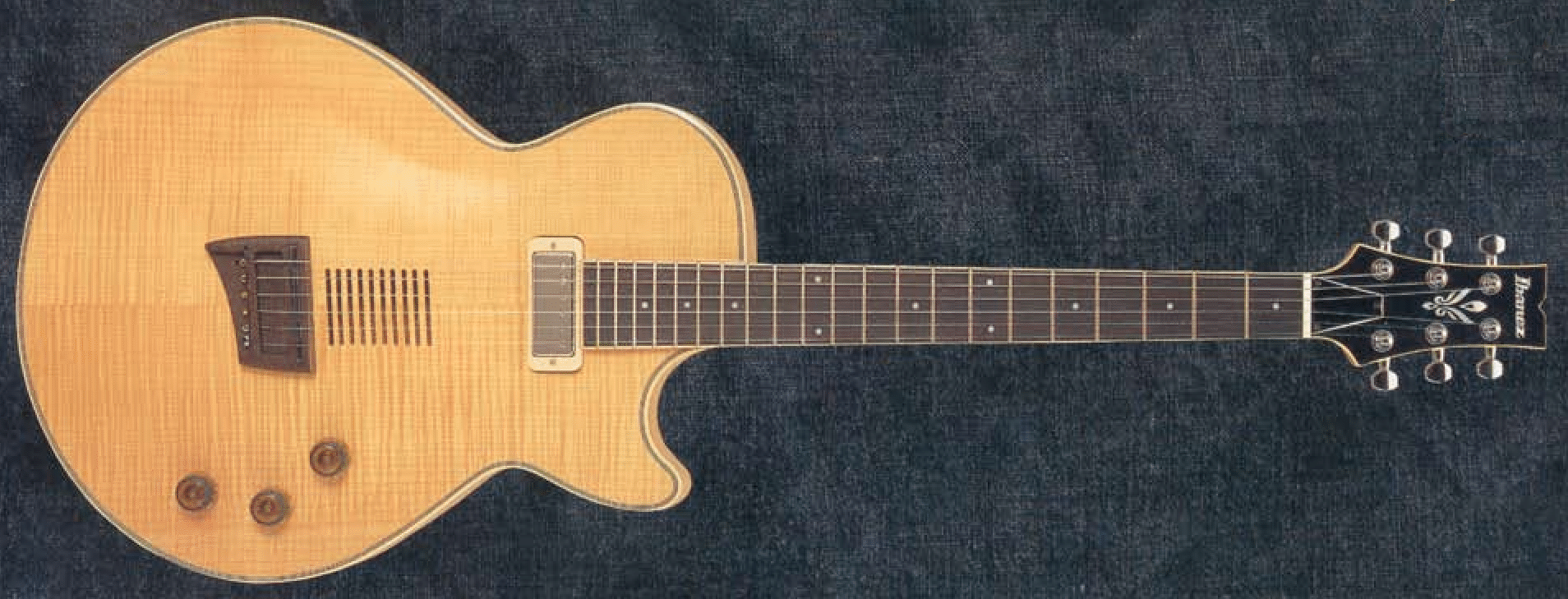

1988 AE200 NT
Natural

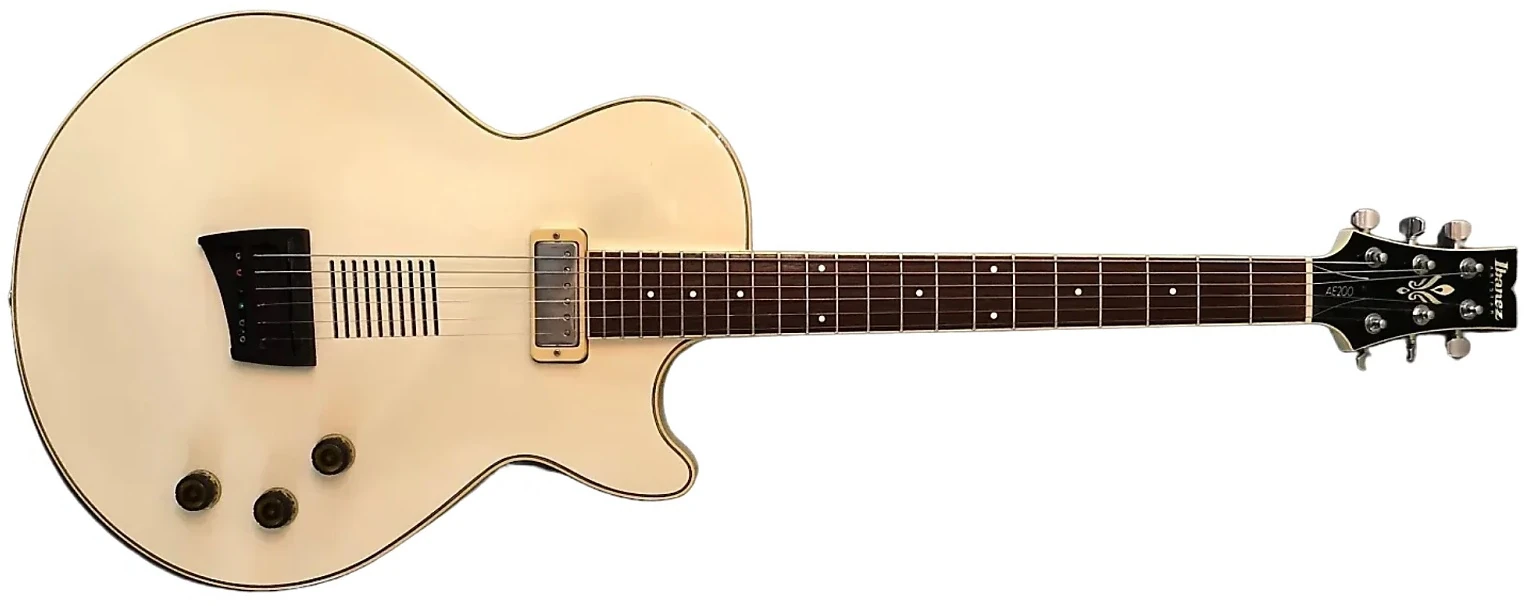

1989 AE200 WH
White
Controls 2VT GSR
Control layout

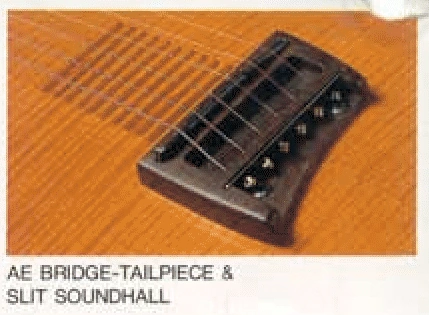

1988 AE200 bridge
Bridge/ tailpiece detail

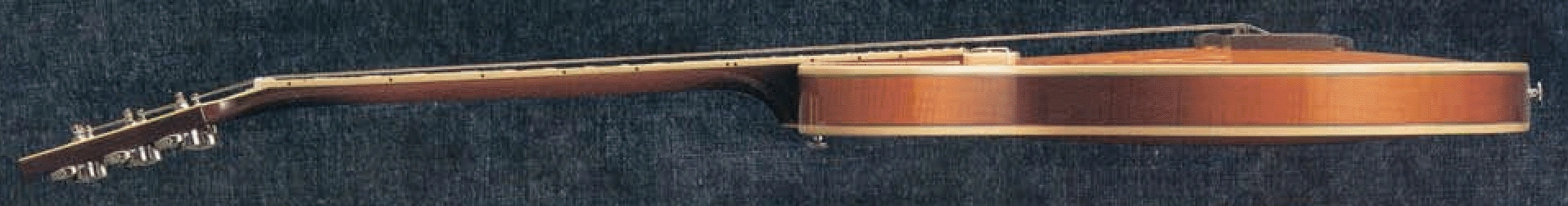

1988 AE200 side-view
Side view
