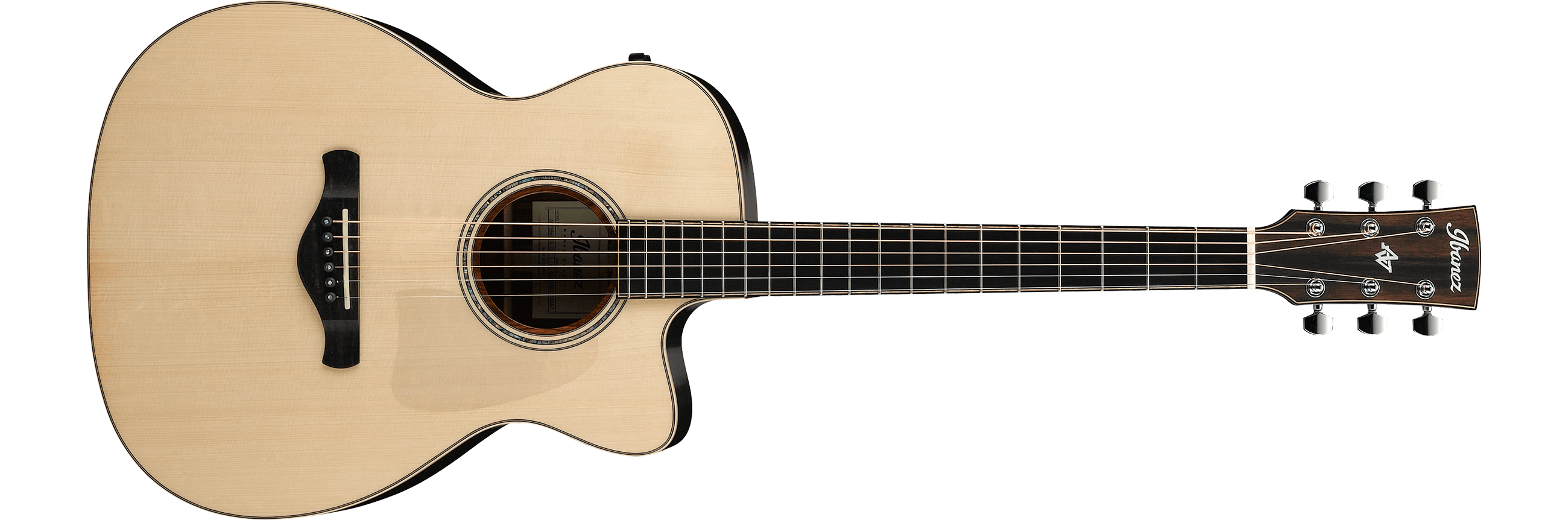

2019 ACFS580CE OPS 1X 01
ACFS580CE Open Pore Semi Gloss (more images) Red copyright sprite

The ACFS580CE is an Artwood series acoustic/ electric guitar model introduced by Ibanez for 2019. It was produced in China.

It is part of the newly created Fingerstyle collection which incorporate several features specifically for fingerstyle players. These include a deeper body for richer acoustic sound, a deep round neck heel for improved access to the upper frets and dual pickups with dual outputs.

The ACFS580CE features a cutaway grand concert body shape with a selected solid alpine spruce top on solid pau ferro sides and back with an open pore semi-gloss finish. The top is bordered by a wooden multi-purfling strip which continues around the neck and headstock and a flamed maple binding. The round soundhole has a pau ferro and abalone rosette and a clear pickguard. The 25⅝" scale Comfort Grip (thin C shape) African mahogany and pau ferro neck has a satin finish and a 20-fret ebony fingerboard with a rounded edge. Components include a compensated unbleached oil-impregnated bone saddle in an ebony bridge with ebony bridge pins with abalone dots, an oil-impregnated bone nut, and chrome Gotoh tuning machines. Electronics consist of both an Ibanez T-bar undersaddle pickup and a block contact pickup connected to an Ibanez DP1 preamp powered by a pair of AAA batteries, and dual ¼" output jacks.

For 2021 the body was very slightly enlarged and the factory strings were changed.

The AWFS580CE is a related model with a dreadnought body.

The ACFS580CE was discontinued after 2024.

Specifications[]

Related content: Fingerstyle collection | Artwood series | Models-icon
Specifications for ACFS580CE
Name: ACFS580CE
Year(s) offered: 2019–2024
Sold in: Americas & Oceania 2020–2024 / Asia & Africa 2020–2024 / China / Japan / Europe / USA 2019–2023
Made in: China
Price: MSRP: ¥ 180,000 (2019)[1] / ¥ 185,000 (2022)[2] / ¥ 205,000 (2024)[3]
Finishes: Open Pore Semi Gloss (OPS)
Body
Body type:
Acoustic
Body shape:
Grand concert w/ Venetian cutaway
Dimensions:
  Body length:
    2019–2020: 489mm/ 19¼"
    2021–2024: 492mm/ 19⅜"
  Width: 387mm/ 15¼"
  Depth:
    2019–2020: 114mm/ 4½"
    2021–2024: 117mm/ 4⅝"
Top:
  Material: Selected solid alpine spruce
  Bracing: Scalloped X
  Finish: Open pore semi-gloss
  Binding: Wooden multi-purfling & flamed maple binding
Back/sides:
  Material: Solid pau ferro
  Finish: Open pore semi-gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone & pau ferro
Neck
Neck profile:
ACFS (Thin C)
Neck material:
5-piece African mahogany/ pau ferro
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Ebony w/ rounded edge
Inlays:
None
Frets:
20 nickel silver
Nut:
Unbleached oil-impregnated bone (45mm)
Machine heads:
Gotoh SG301 (18:1 gear ratio)
Electronics/ Components
Pickup:
Dual pickup: Ibanez T-bar undersaddle & block contact
Preamp:
Ibanez DP1
Output jack(s):
Dual: ¼" endpin & ¼" stereo (mono/stereo)
Battery:
3V (two AAA)
Bridge:
Ebony (11mm string spacing)
Bridge pins:
Ebony w/ abalone dot
Saddle:
Unbleached oil-impregnated bone compensated
Hardware color:
Chrome
Pickguard:
Clear
Strings (factory):
2019–2020: .010/.016/.024/.032/.042/.053 (Elixir Phosphor Bronze Nanoweb Light)
2021-2024: .012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

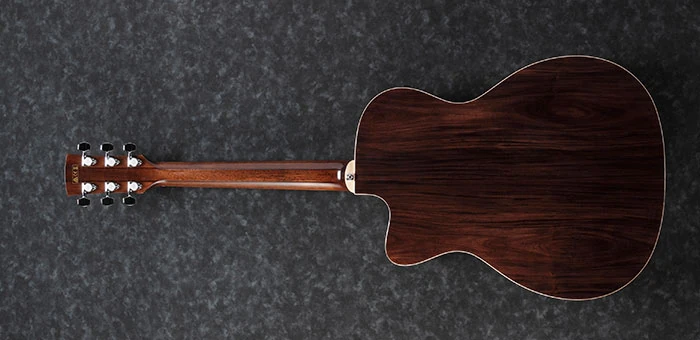

2019 ACFS580CE OPS 1X 01 back
2019 Ibanez ACFS580CE ( Back: Solid Pau ferro with a 5-piece African mahogany/ pau ferro ACFS neck & Gotoh SG301 machine heads ) Red copyright sprite
Additional details
Fingerstyle neckheel
Deep neck heel
ACFS580CE deeper body
Body ¼" deeper than typical grand concert
Fingerstyle African-mahogany pau-ferro neck
African mahogany & pau ferro neck
Fingerstyle ebony fretboard
Ebony fingerboard
Fingerstyle saddle
Oil-impregnated bone saddle

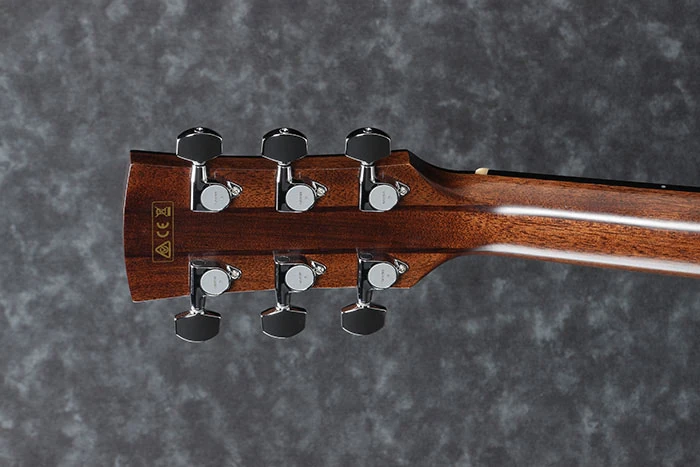

2019 ACFS580CE OPS 1X 01 headstock
Rear headstock

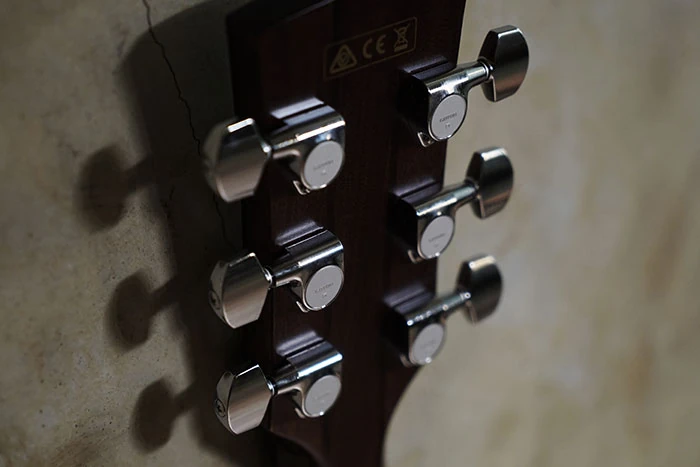

Gotoh SG301 tuners
Gotoh SG301 tuners
Ibanez DP1 preamp
DP1 preamp controls
Ibanez DP1 preamp controls
DP1 preamp diagram
Fingerstyle dual output
Dual ¼" output jacks

Videos[]

2019 Ibanez Fingerstyle Collection ACFS580CE ( featuring : Seiji Igusa )
2019 Ibanez Fingerstyle Collection ACFS580CE ( featuring : David Sehling )
2019 Ibanez Fingerstyle Collection ACFS580CE ( featuring : Igor Presnyakov )


Sources[]

  1. ACFS580CE product page, Ibanez Japan, archived November 2019
  2. ACFS580CE product page, Ibanez Japan, archived June 2022
  3. ACFS580CE product page, Ibanez Japan, archived January 2024
  • ACFS580CE product page, Ibanez Europe, archived January 2020
  • ACFS580CE product page, Ibanez China, archived January 2021
  • ACFS580CE product page, Ibanez Americas & Oceania, archived June 2022
  • ACFS580CE product page, Ibanez USA, archived January 2023
  • ACFS580CE product page, Ibanez Asia & Africa, archived January 2024
