2014 AC535 NT 1X 01

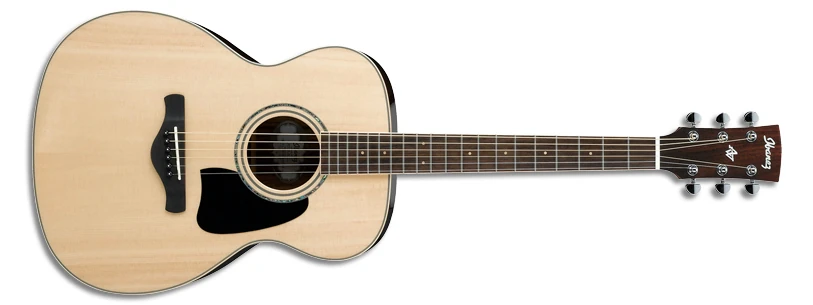

AC535 Natural High Gloss (more images) Red copyright sprite

The AC535 is an Artwood series acoustic guitar model introduced by Ibanez for 2014. It was made in China.

The AC535 features a grand concert body shape with a solid Sitka spruce top with maple binding on rosewood sides and a three piece rosewood and flamed maple back with wooden mosaic inlay and a gloss finish. The soundhole is round with an abalone rosette and a black pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with maple binding and maple dot position markers. Components include a compensated bone saddle in a rosewood bridge with Ibanez Advantage bridge pins, a bone nut, and chrome Grover die cast tuning machines with half-moon buttons.

The AC535CE is a related acoustic-electric model with a cutaway body. The AW535 is a related model with a dreadnought body.

The AC535 was discontinued after 2015.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AC535
Name: AC535
Year(s) offered: 2014–2015
Sold in: USA
Made in: China
Price: MSRP: US$599.99 (2014)[1] • SMAP: US$399.99 (2015)<ref>Ibanez AC535NT Artwood Grand Concert Acoustic Guitar Natural High Gloss product listing, Musician's Friend (US retailer), archived March 2015
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Grand concert
Dimensions:
  Length: 495mm/ 19½"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:
  Material: Solid Sitka spruce
  Bracing: X
  Finish: Gloss
  Binding: Maple
Back:
  Material: 3-piece rosewood/ flamed maple/ rosewood
  Strip inlay: Wooden mosaic
  Finish: Satin
Sides:


  Material: Rosewood

Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AC
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
Rosewood w/ Maple binding
Inlays:
Maple dot
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
Grover GH302 die cast w/ half-moon buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
2014 AC535 NT body-back

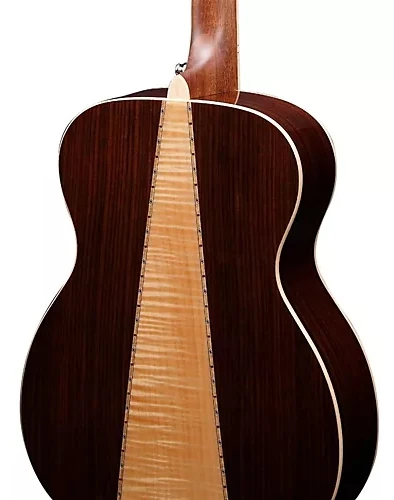

Rosewood & flamed maple back
2014 AC535 NT headstock-back

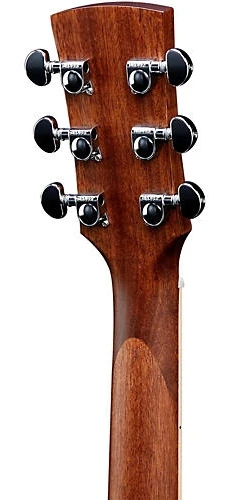

Headstock back and Grover tuners
